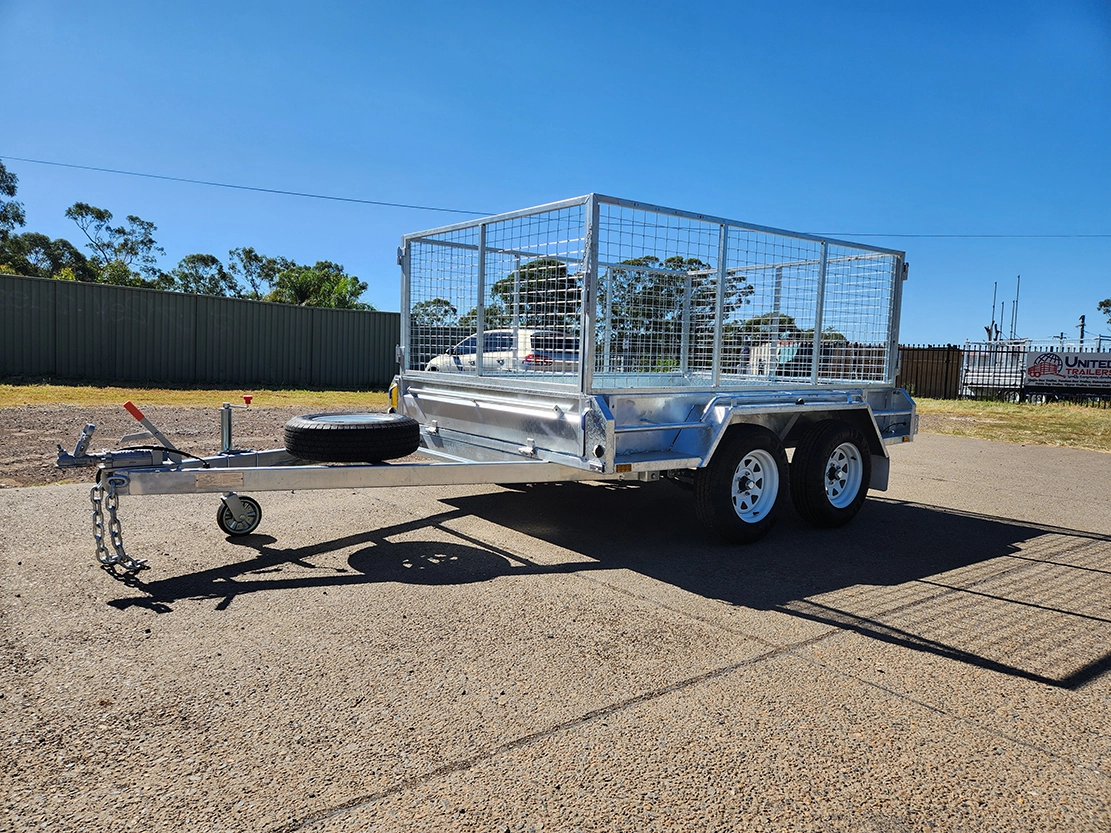

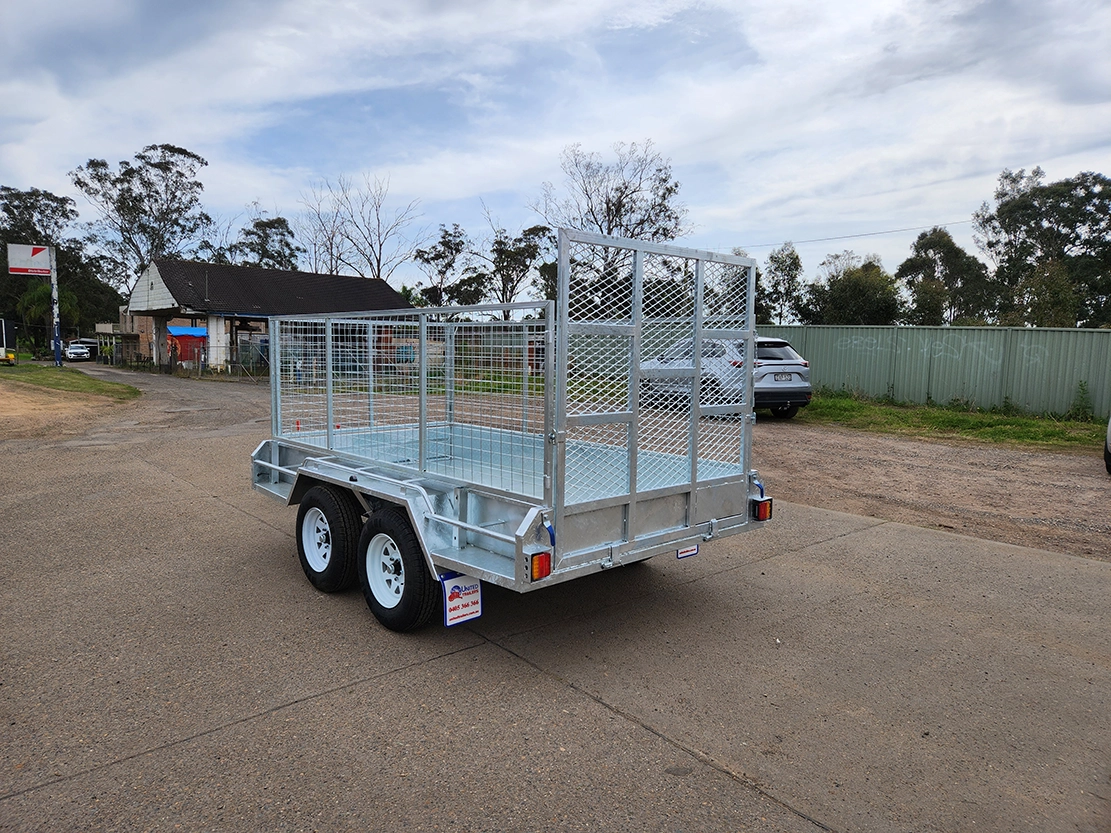

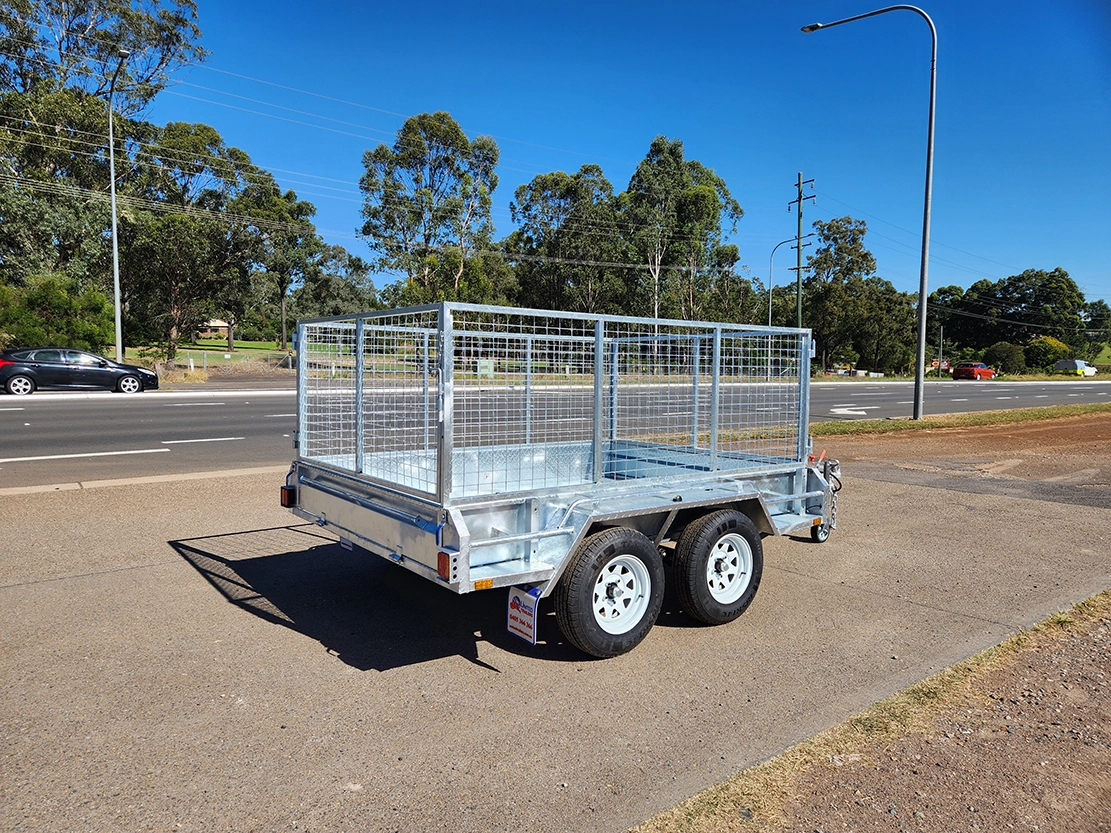

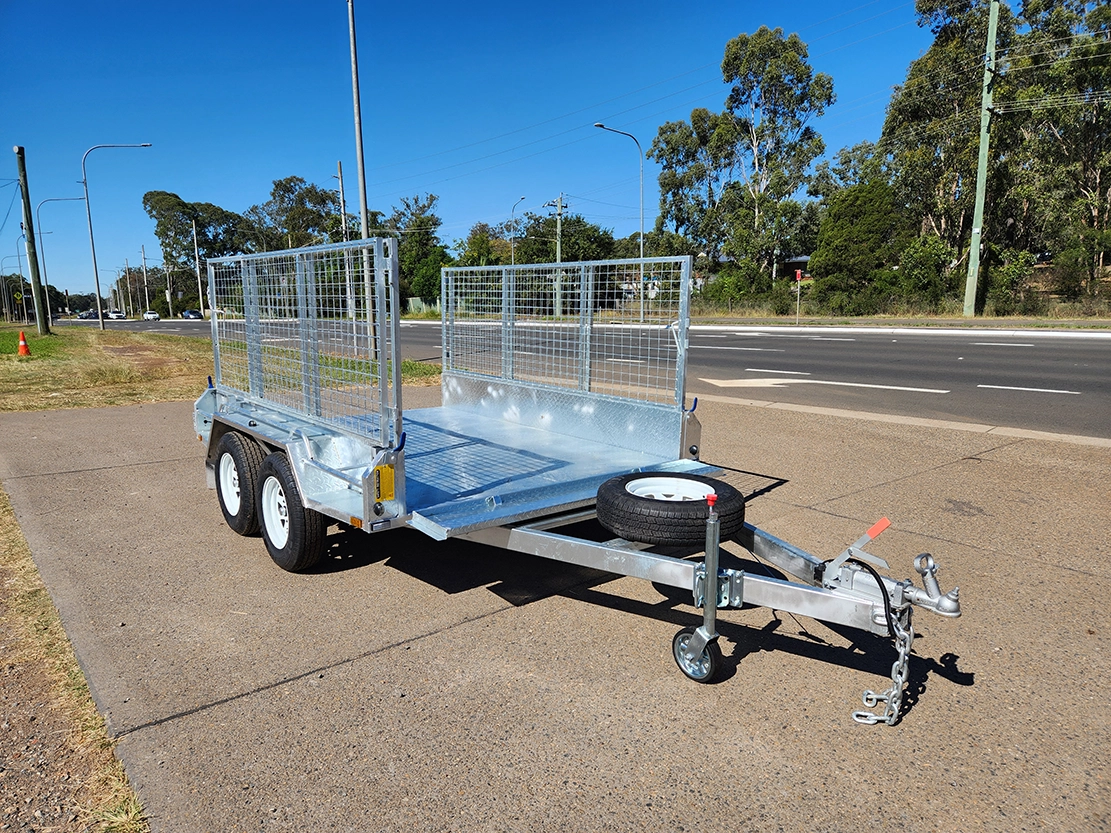

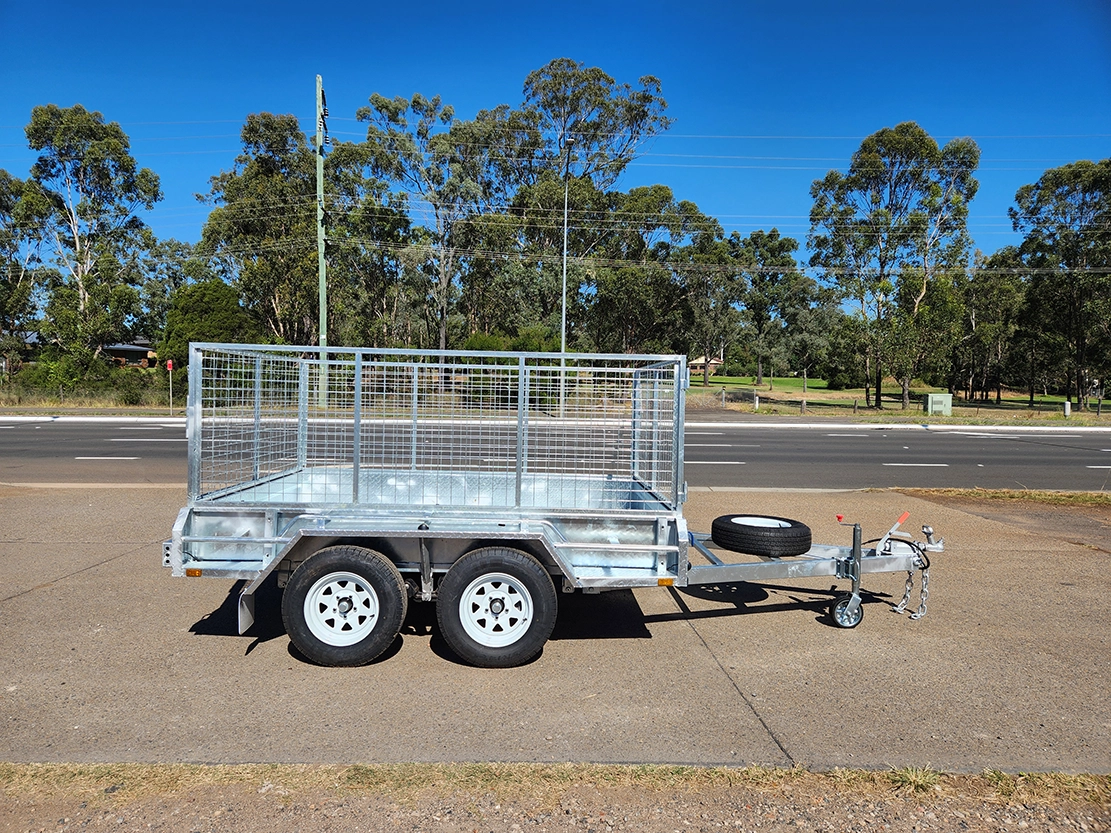

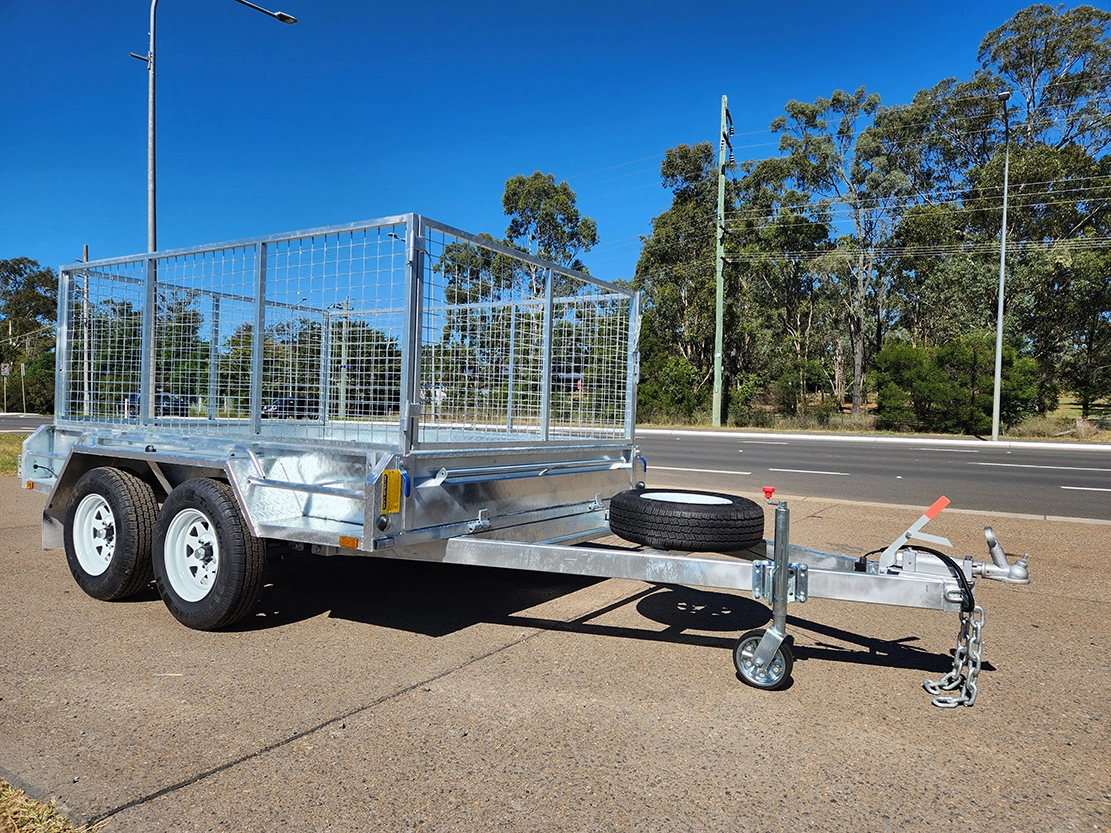

Model– TG86
ATM – 2000KG
TARE weight– 530KG
Material– Hot Dipped Galvanised steel
Body & Chassis– Fully Welded
Trailer Size– 4370mm L x 2300mm W
External Trailer Tray Size– 2520mm L x 2300mm W
Internal Trailer Tray Size– 2445mm L x 1820mm W
Side Walls– 300mm
Floor & Side wall– 2.5mm 3 pieces of fully welded checker plate floor and folded side
Step-up Platforms– on Both Sides
Axle– Dual axle 45mm Square Solid Axle
Brake– Mechanical Disk Brake on Front Axle.
Jockey Wheel– 8” Swing up Jockey Wheel
Wheel & Tyre– Brand New Sunraysia Rim with LT Tyre 195R/15

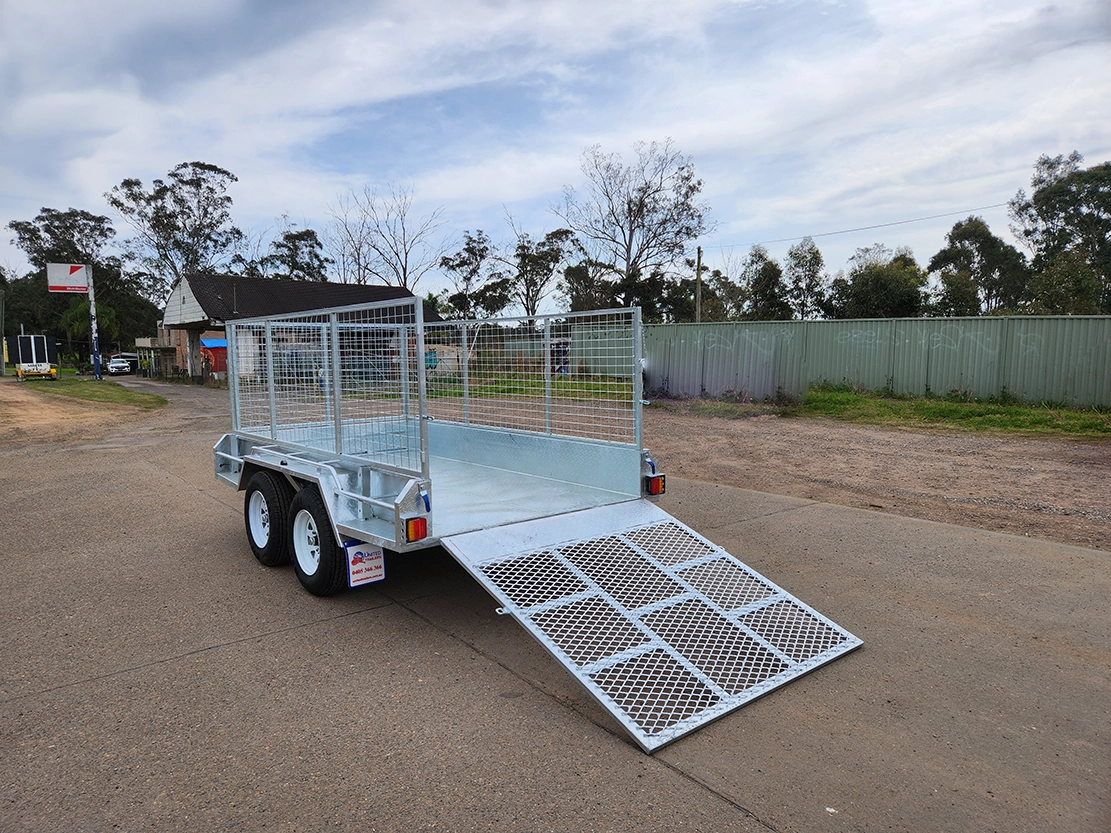

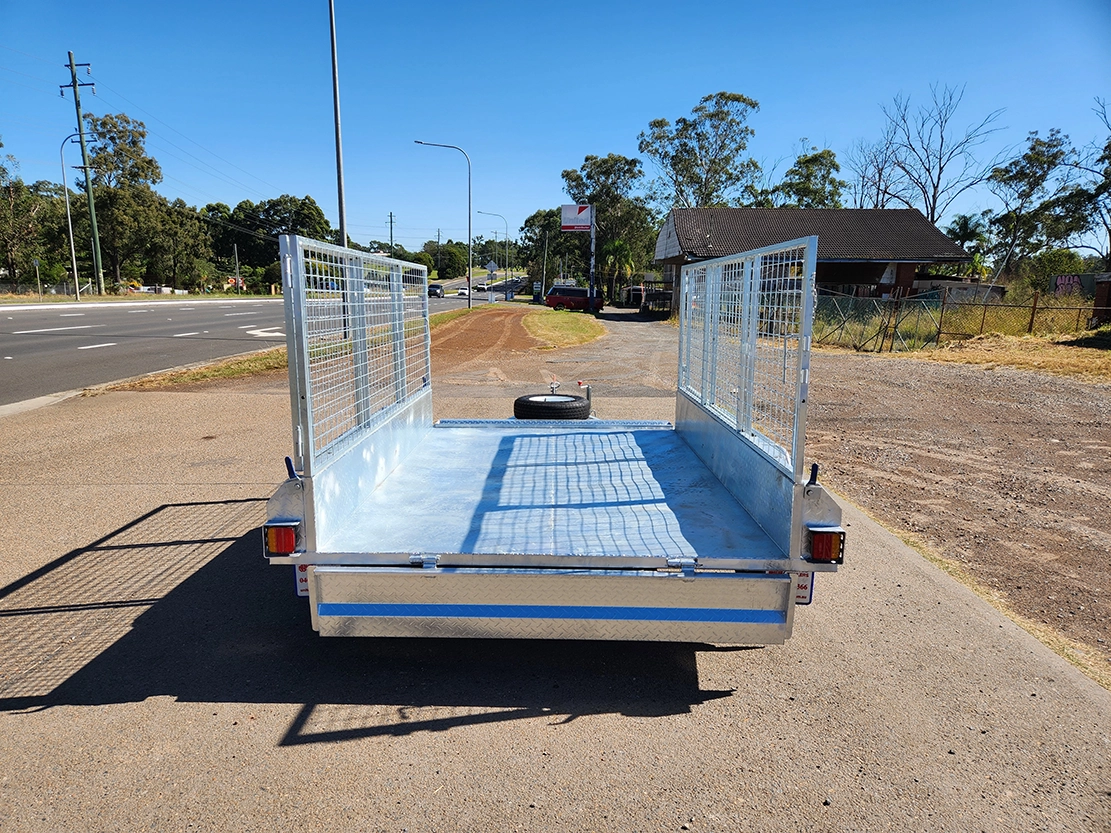

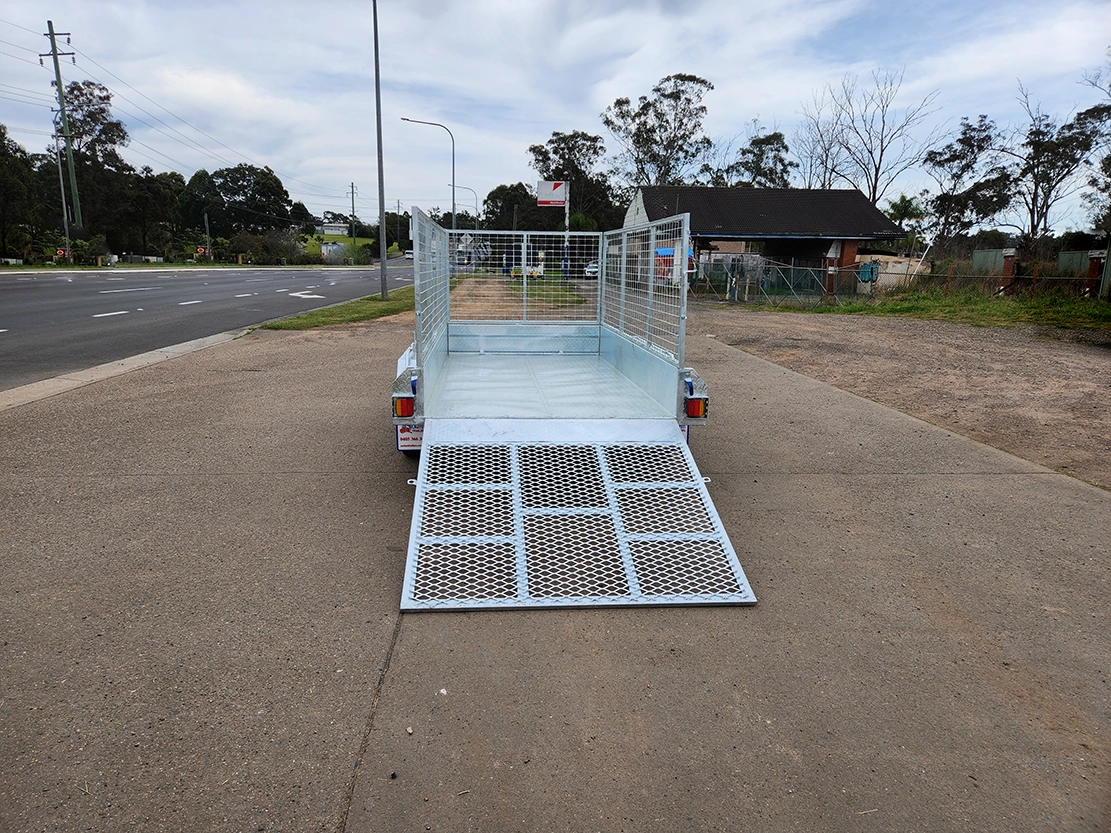

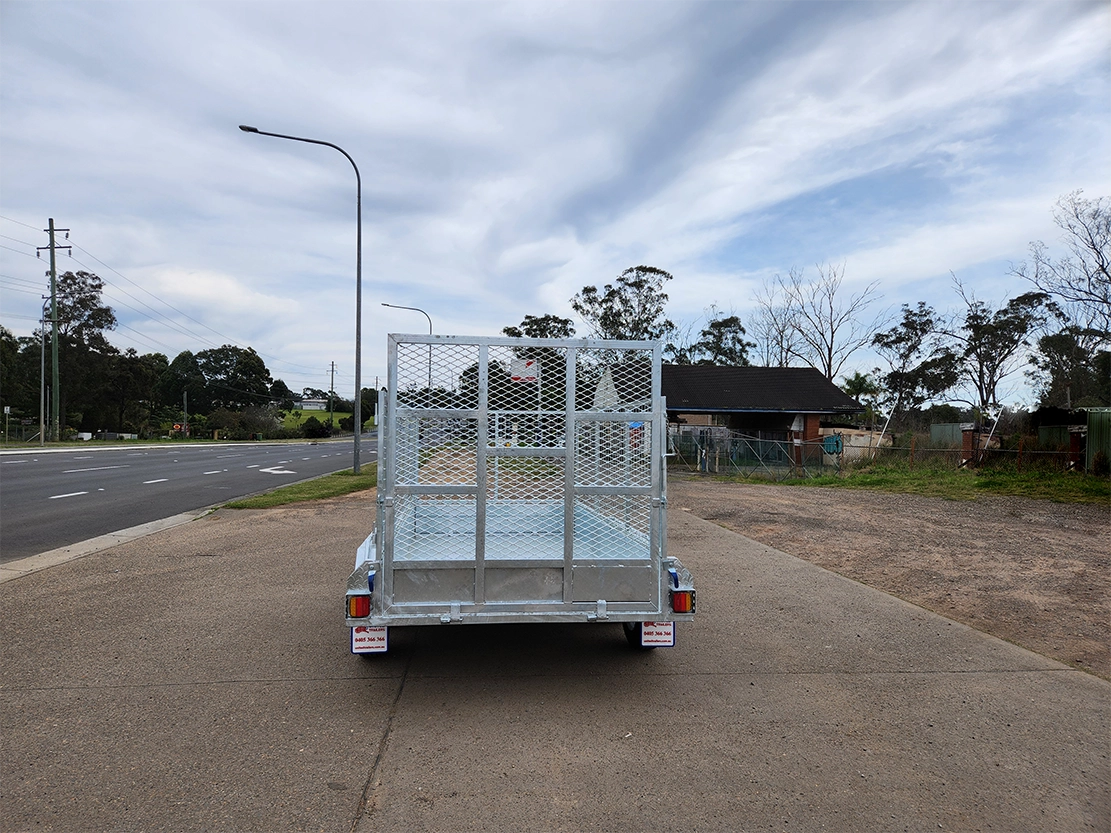

Front & Rear Gates– Removable & Drop-Down Gates

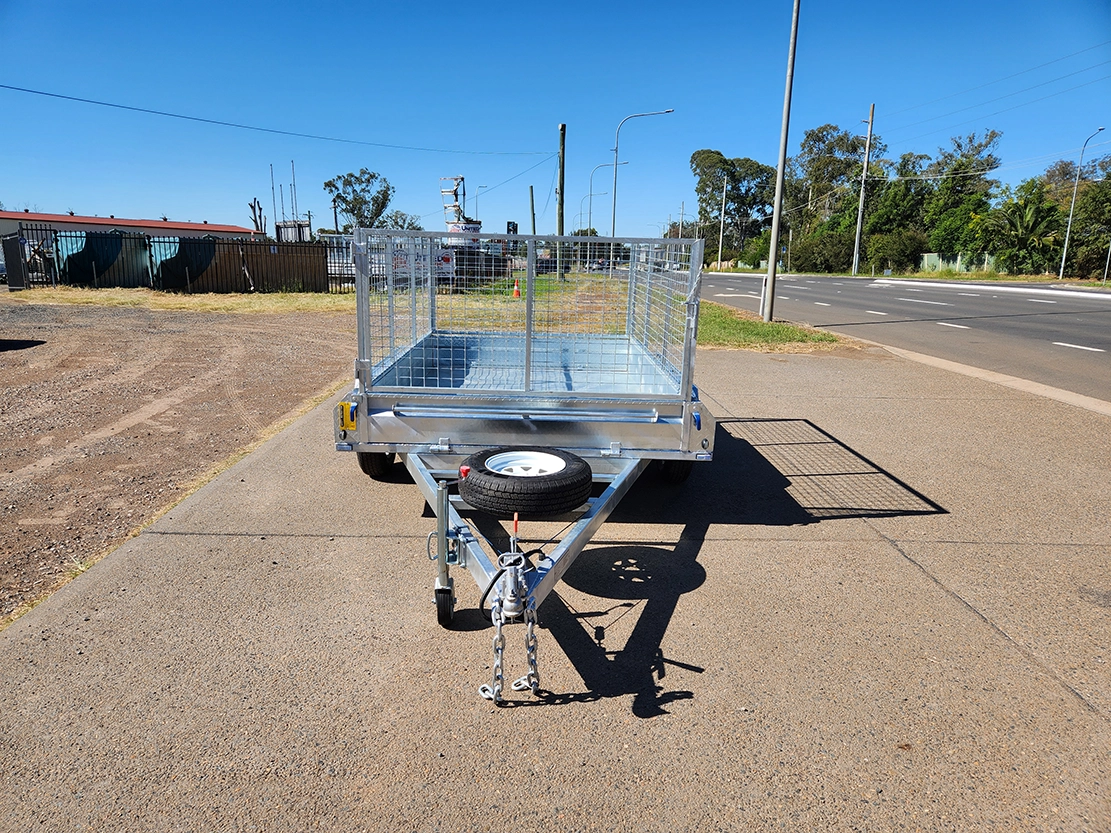

Drawbar– 1850mm Long (Straight measurement including coupling), 100mm x 50mm x 4mm RHS
Chassis– 50mm x 50mm SHS Reinforced Under Floor (From Left to Right& Front to Back)
Tie rail bar– 32mm all around
Leaf spring– 60mm 6 Leaf 6mm Rocker Roller
Coupling– Quick release 50mm 2000kg Over-ride coupling
Safety Chain– 13mm ADR Safety Chain x 2
Ladder Rack Holder– Welded Ladder Racks Holders at front & rear
Drawbar Locking point– 2 Heavy Duty Locking Points on Drawbar
Lights– LED combination taillights
Plug– 7 pin flat plug
Mudflaps & Compliance Plate– Included
Please Note ±5mm, All the measurements were taken by hand, with a potential variance of plus or minus 5mm.
$3,350.00
PLEASE CALL 0405 366 366 to reserve your trailer.
We only use the best quality materials and parts to manufacture our trailers.
All our prices are GST exclusive.
