8×5 Galvanised Tandem Axle Hydraulic Tipper Box Trailer 3500 KG ATM (Model- TP85)

• Model- TP85
• ATM3500KG, TARE weight 920KG
• Hot Dipped Galvanised, Fully Welded Body & Chassis
• Internal Trailer Size: L-2365mm x W-1515mm x H-445mm
• *2.5mm 3 pieces of fully welded checker plate floor and folded side
• Step-up Platforms on Both Sides
• Dual Axle, 50mm Square Solid Axle
• 8” Swing up Jockey Wheel
• Brand New Sunraysia Rim with LT Tyre 195R/15
• Removable Front and Rear Drop-Down Gates
• 1900mm, 150mmx50mm RHS Drawbar
• Chassis 75mm x 50mm SHS Reinforced Under Floor (From Left to Right& Front to Back)
• Tie rail bar 32mm
• 5 Stage Hydraulic Cylinder with Hydraulic Power pack
• Ramp Pair 2Ton rated under body slide (L- 2000mm x W- 300mm)(Optional with extra cost)
• 60mm (Wide), 6mm (Thick) 8 Leaf Rocker Roller suspension
• Quick release 50mm 3500kg Over-ride coupling
• 13mm ADR Safety Chain x 2
• Welded Ladder Racks Holders
• 2 heavy duty locking points on drawbar
• 12” Electric Drum brakes on all wheels
• LED combination tail lights 12V-24V
• 7 pin flat plug
• Included compliance plate & Mudflaps

1 Year Limited Warranty

Additional Options:

• 600 mm or 900mm Mesh cage- $230 – $1000 (Depending on the size)
• Spare wheel – $155 -$180 (Depending on the size)
• Spare Wheel Bracket – $55
• Ladder rack – $300 -$500 (Depending on the size)
• Ramp – $450 – $850 (Depending on the size)

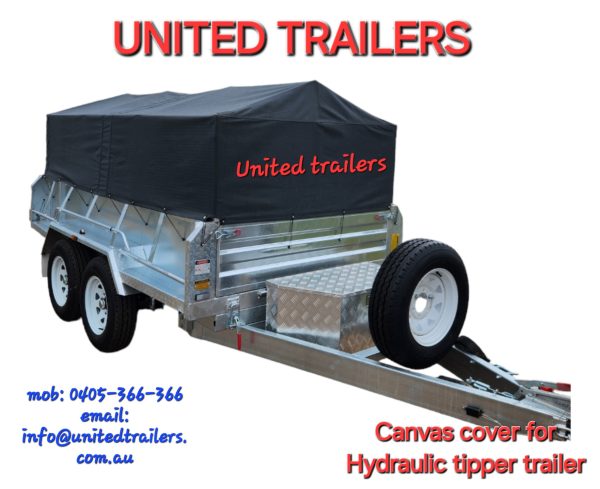

• Canvas Cover – $450 – $1000 (Depending on the size)

Registration

• We do the registration on site.
