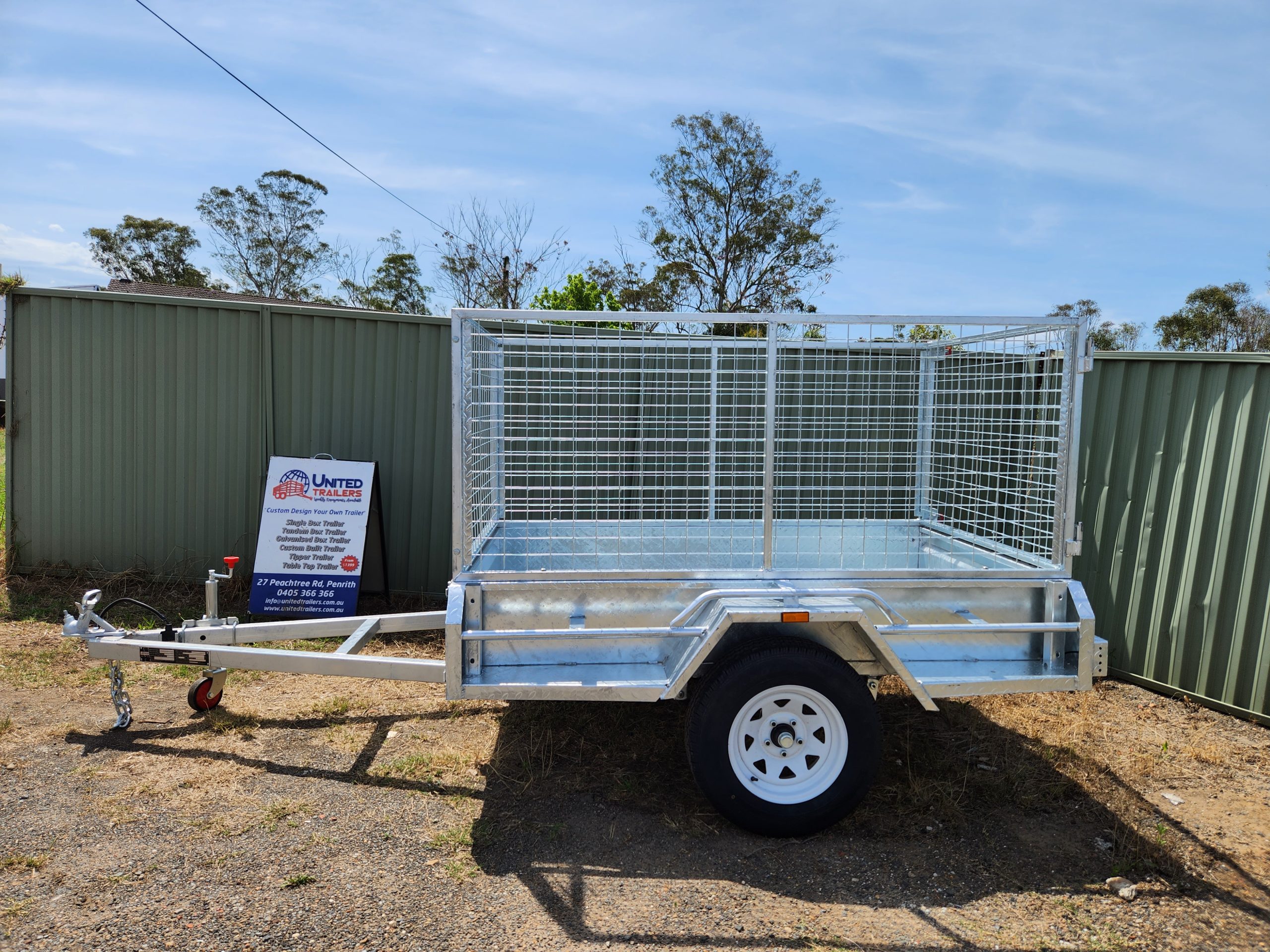

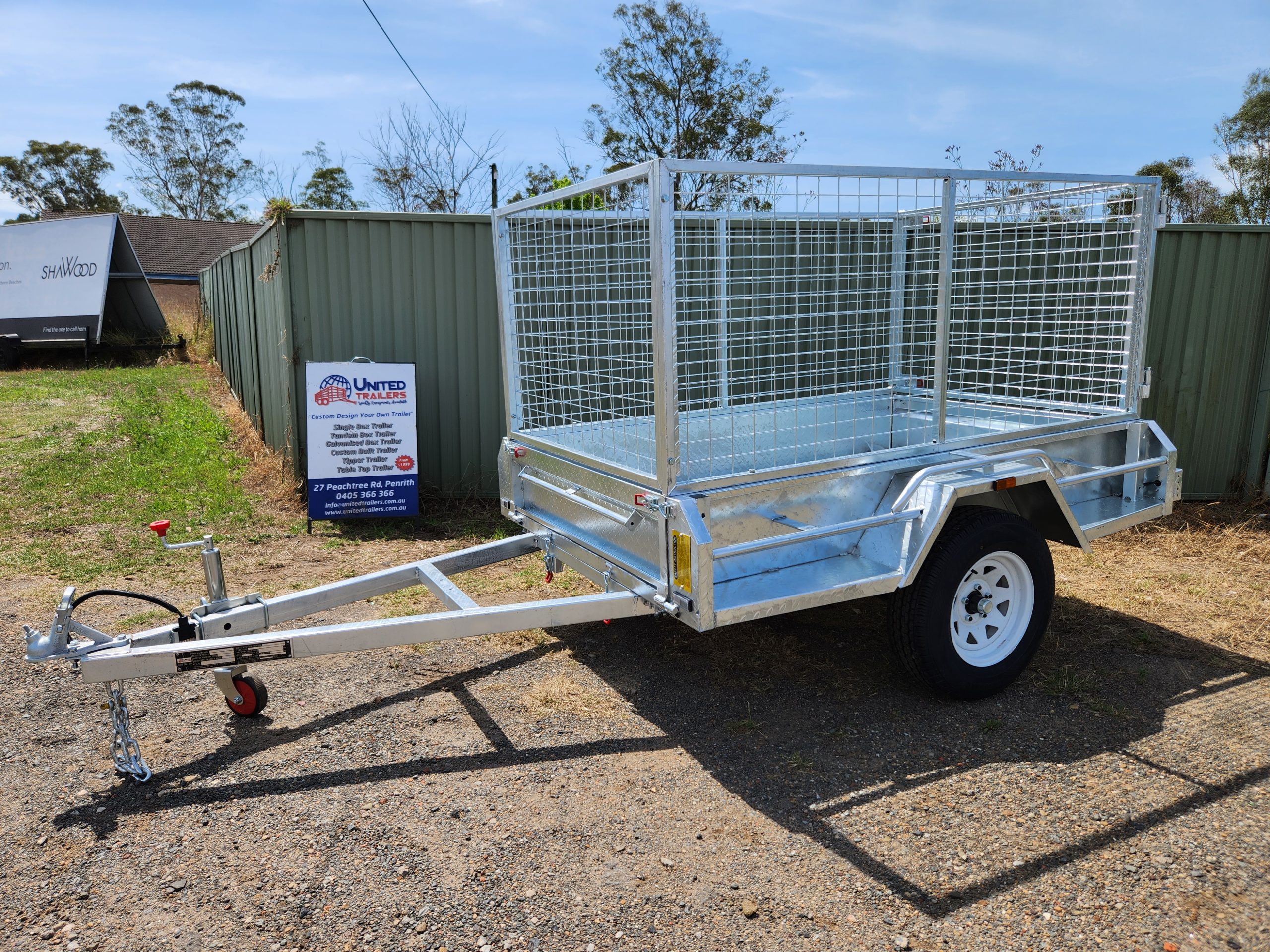

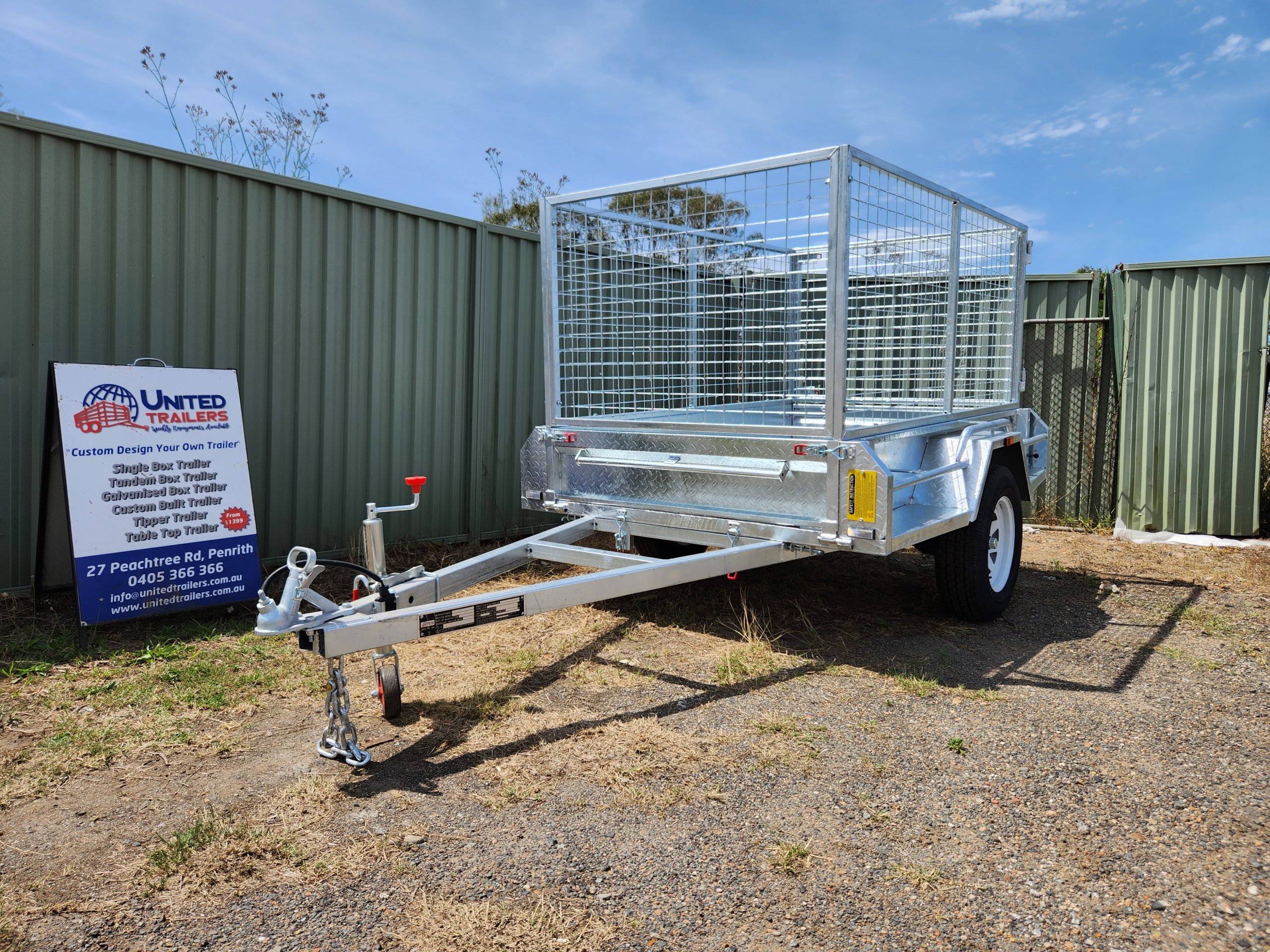

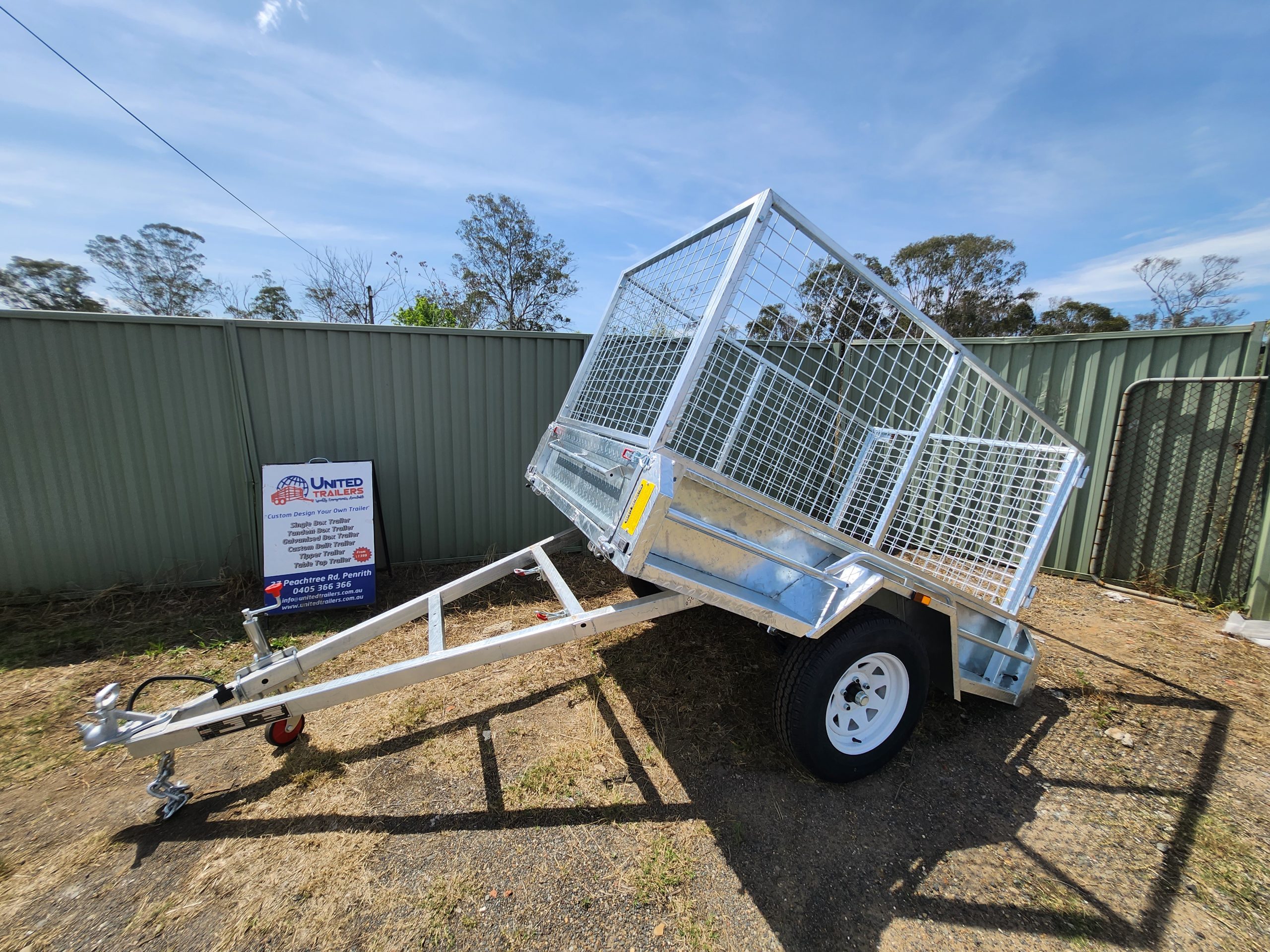

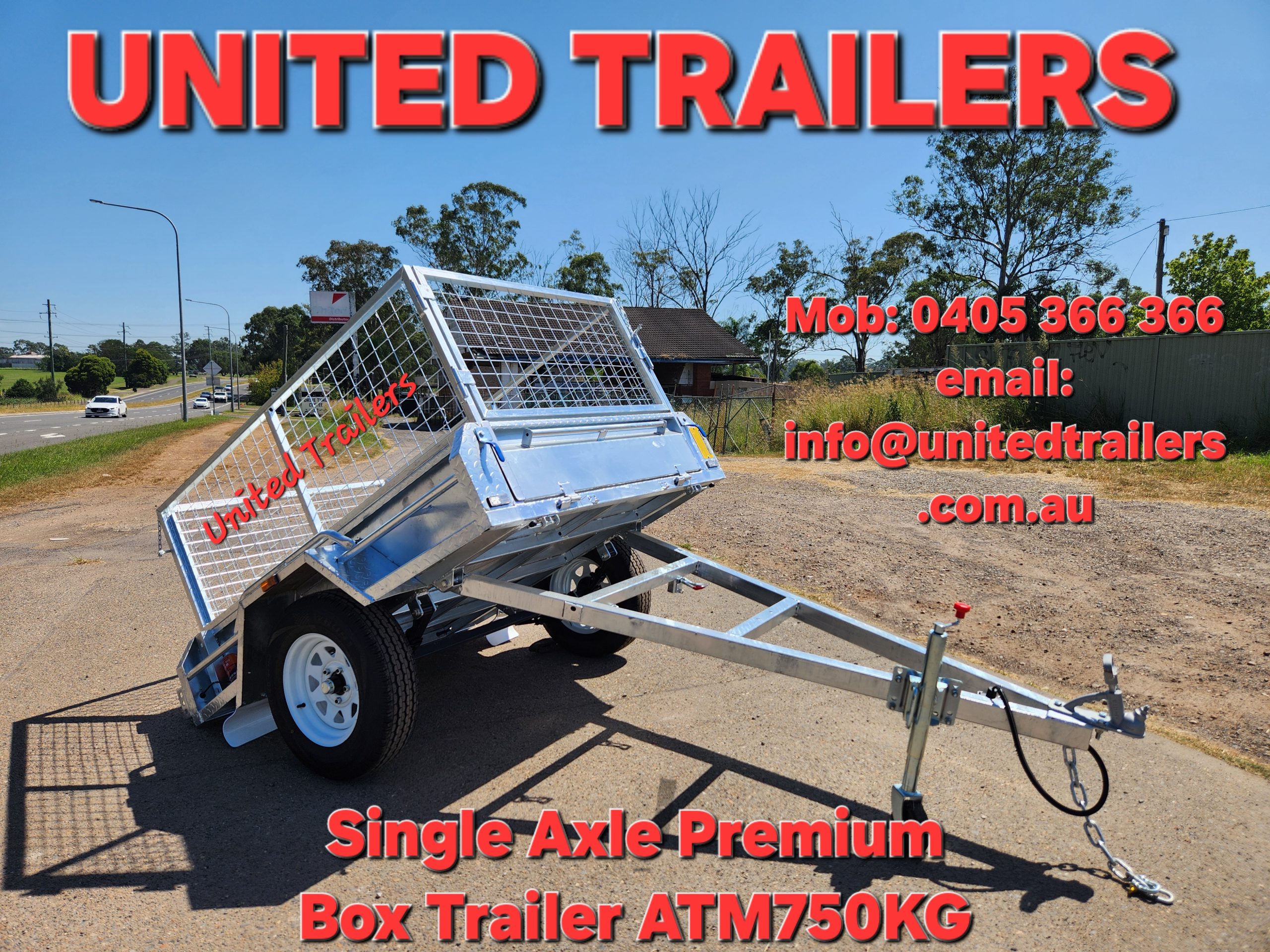

7×4 Premium Box Trailer ATM 750KG
7×4 Premium Box Trailer ATM 750KG
United trailers 7×4 Premium Box Trailer is a premium quality Box trailers engineered and manufactured to fit Australian standard and harsh environment. The standard features are including but not limited to fully welded end to end chassis, 45mm 5 Leaf springs, hot dipped galvanised steel, Checker Plate Floor and more, the strength of our trailers is immense!
Technical Specifications
| ATM | 750kg |
| Tare | 290kg(Exclude cage) |
| Capacity | 460kg |
| Internal Trailer Size | 2100mm x 1230mm x 300mm |
| Side | 300mm High, Fully Welded |

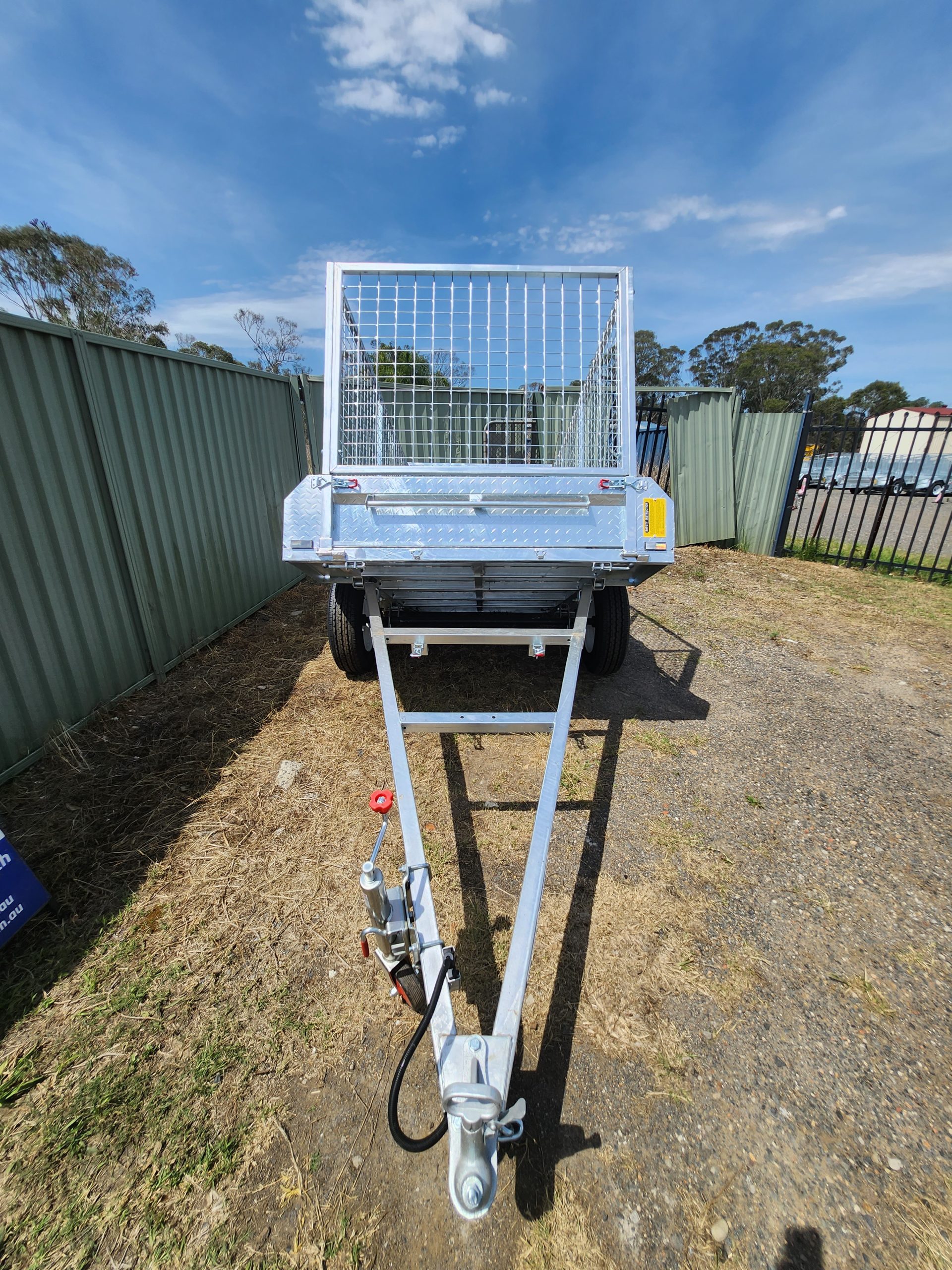

| Drawbar | 1600mm, 70mmx50mm RHS |
| Hot Dipped Galvanised | |
| Fully Welded Body & Chassis | |

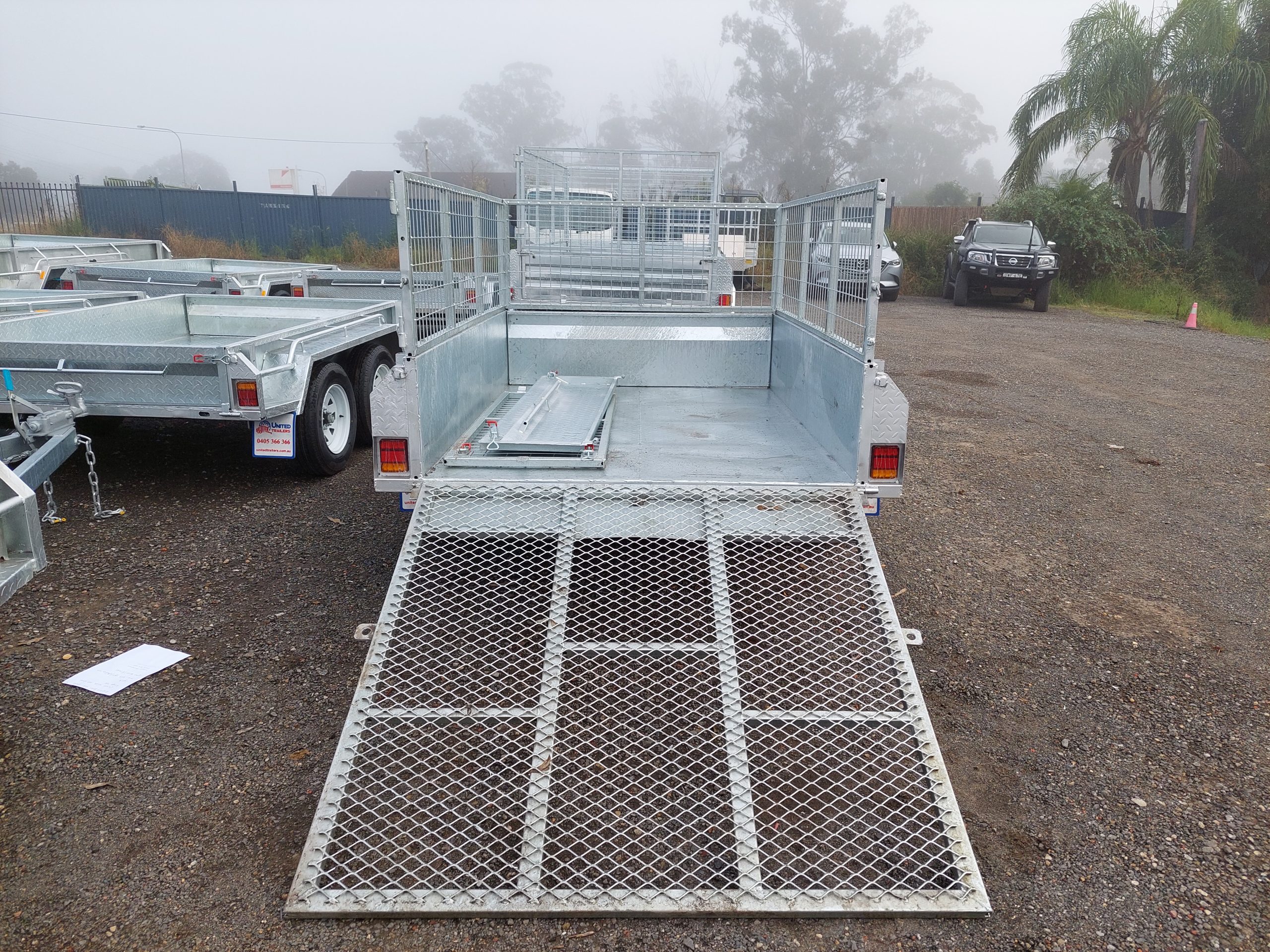

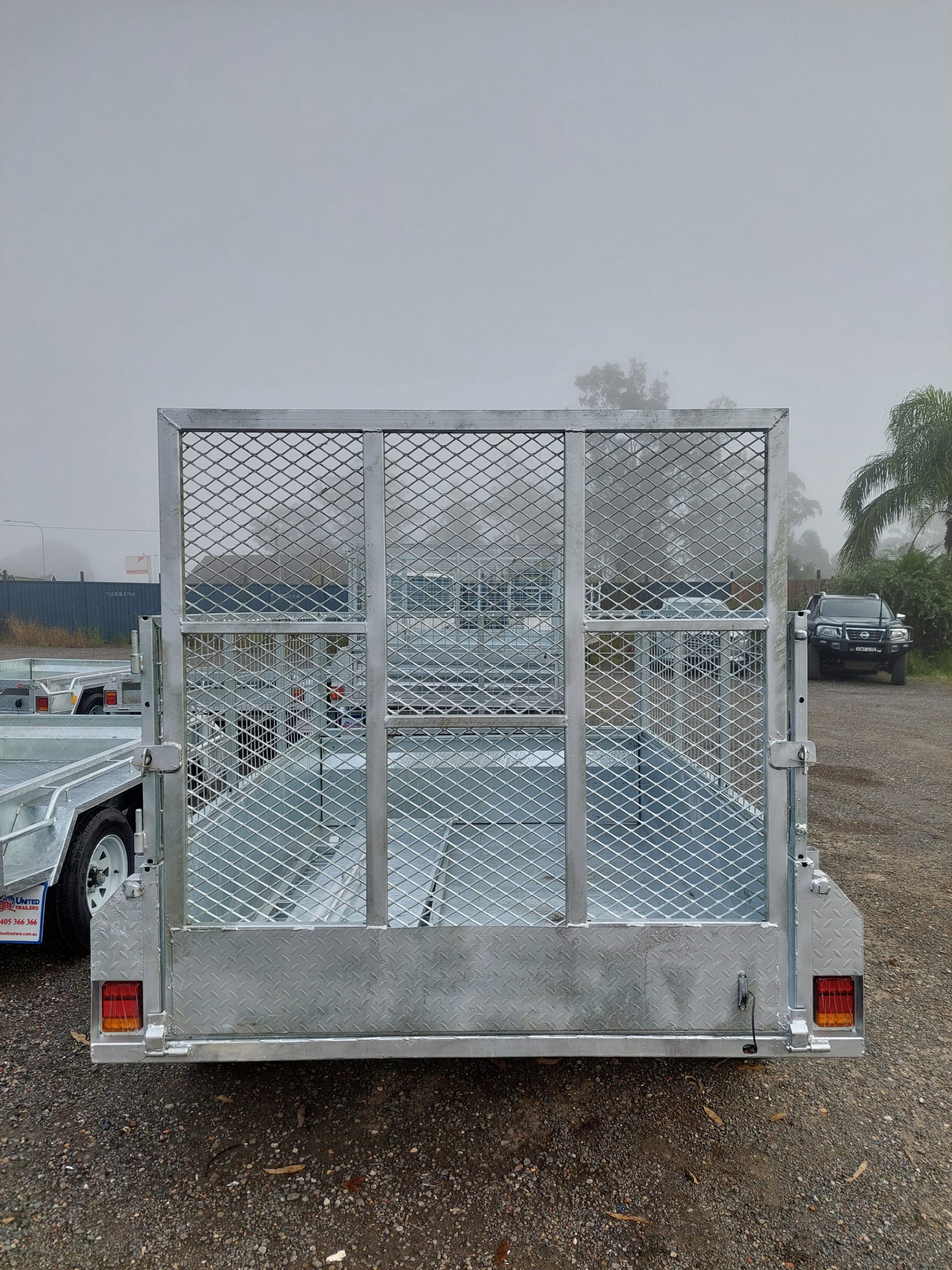

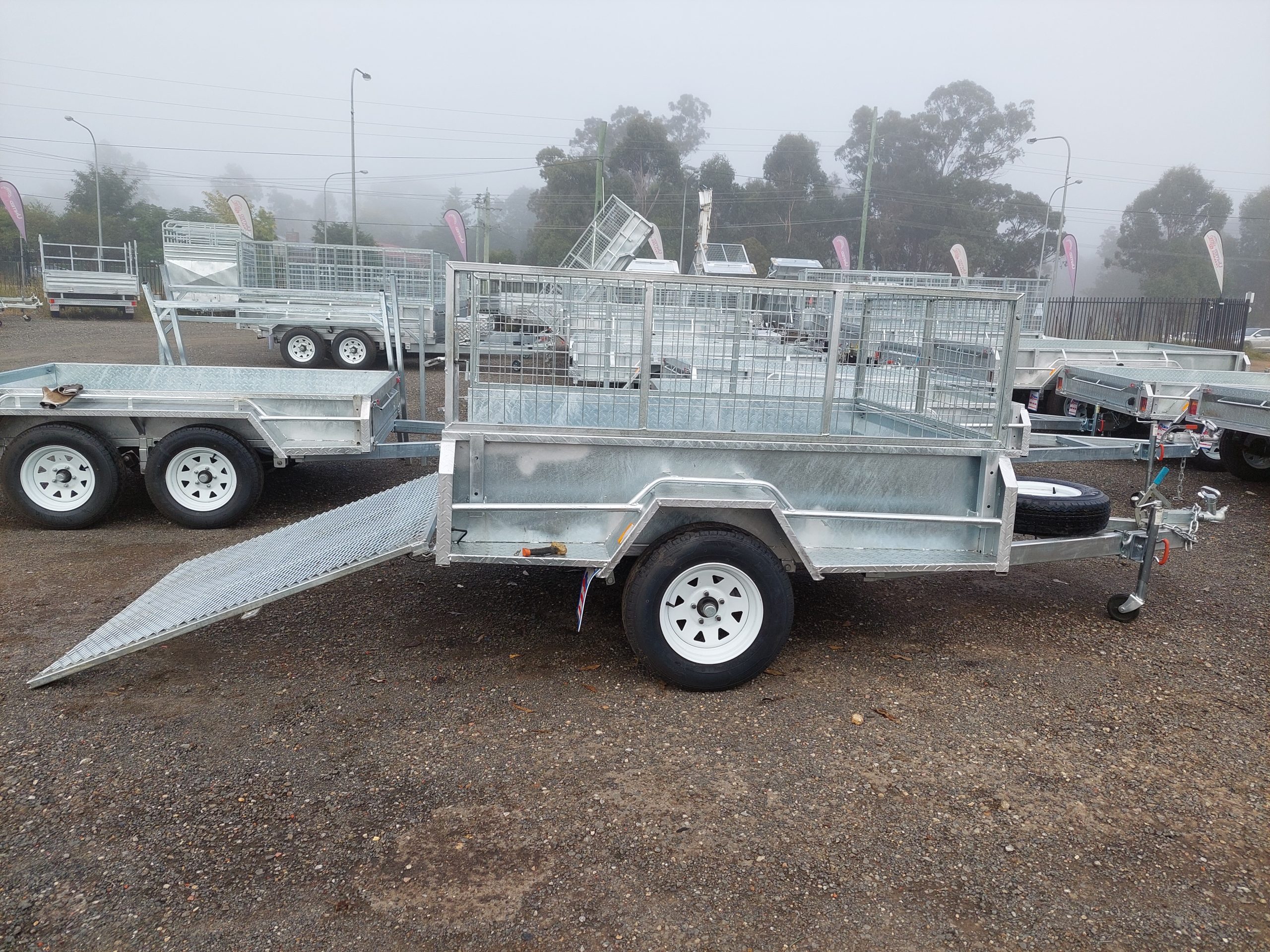

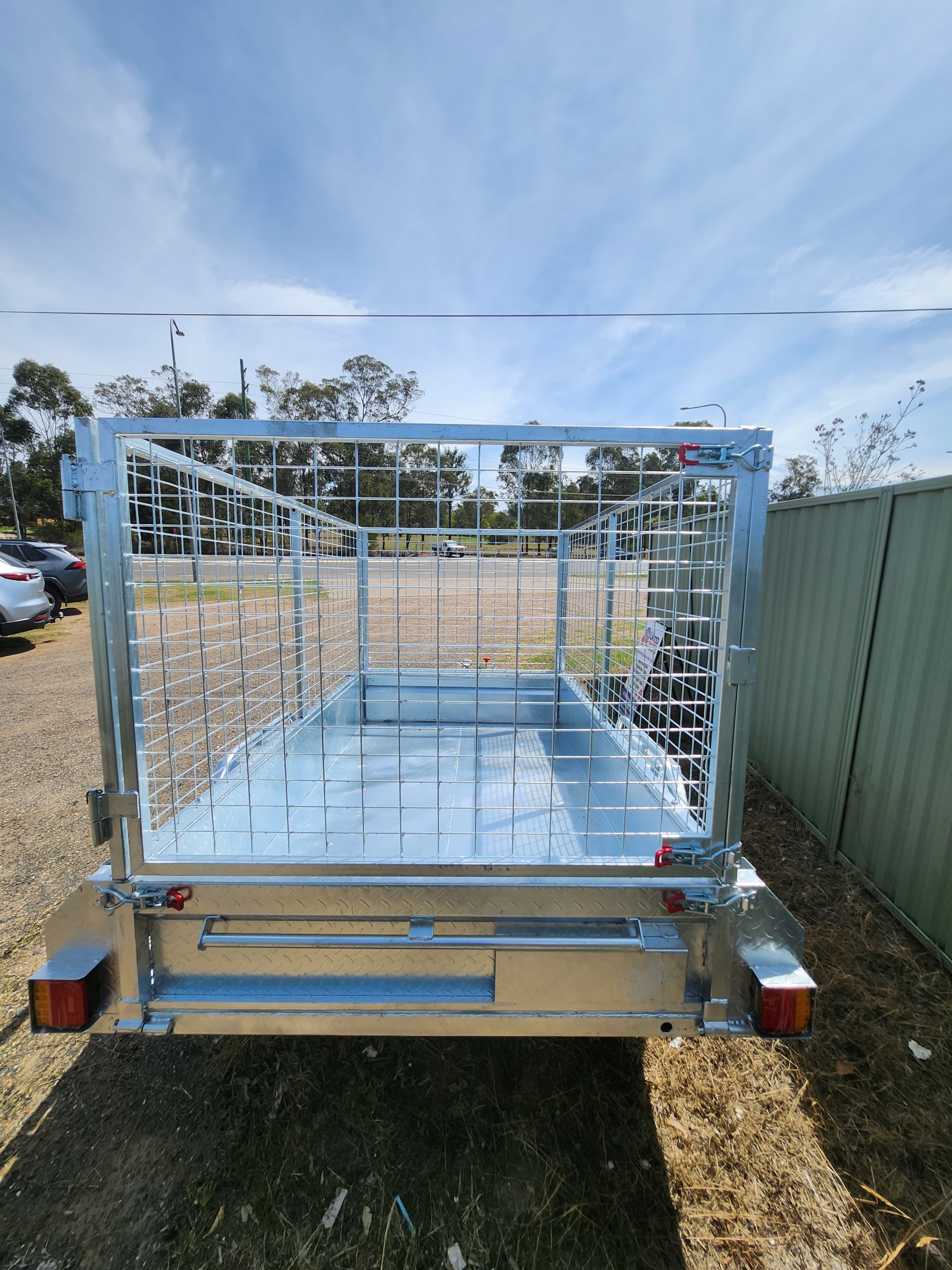

| Removable Front and Rear Drop Down Gates | |
| Welded Ladder Racks Holders | |

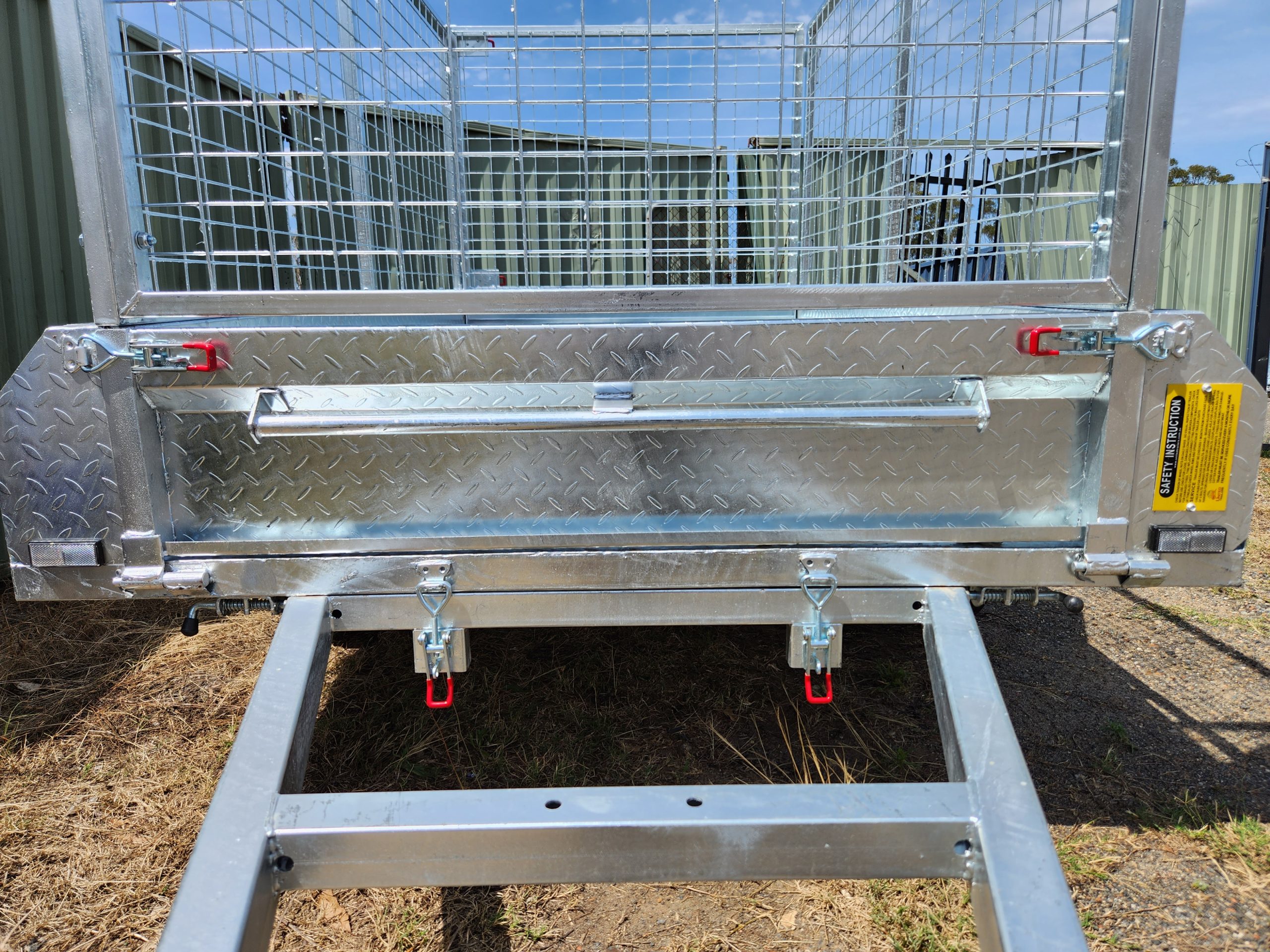

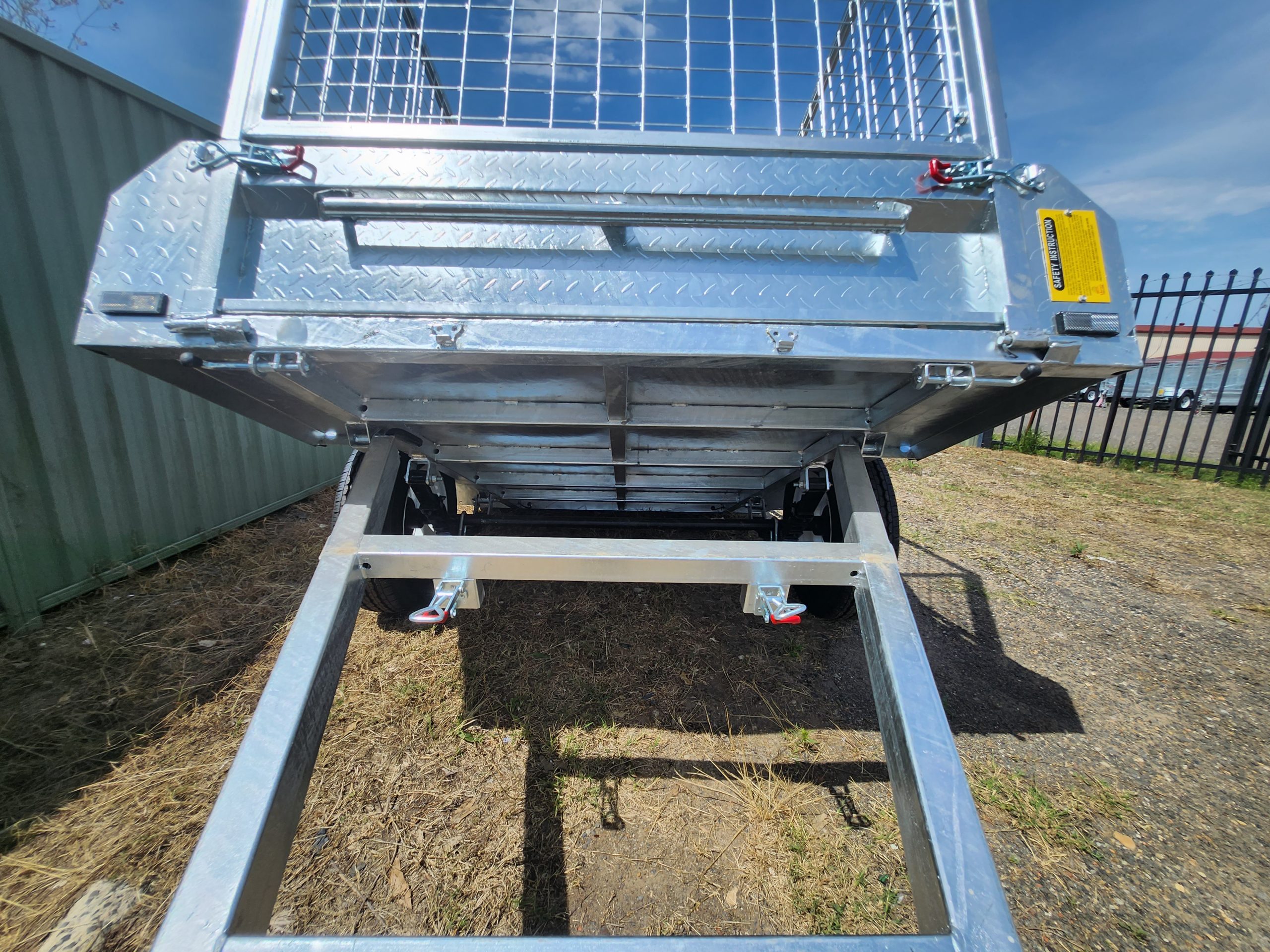

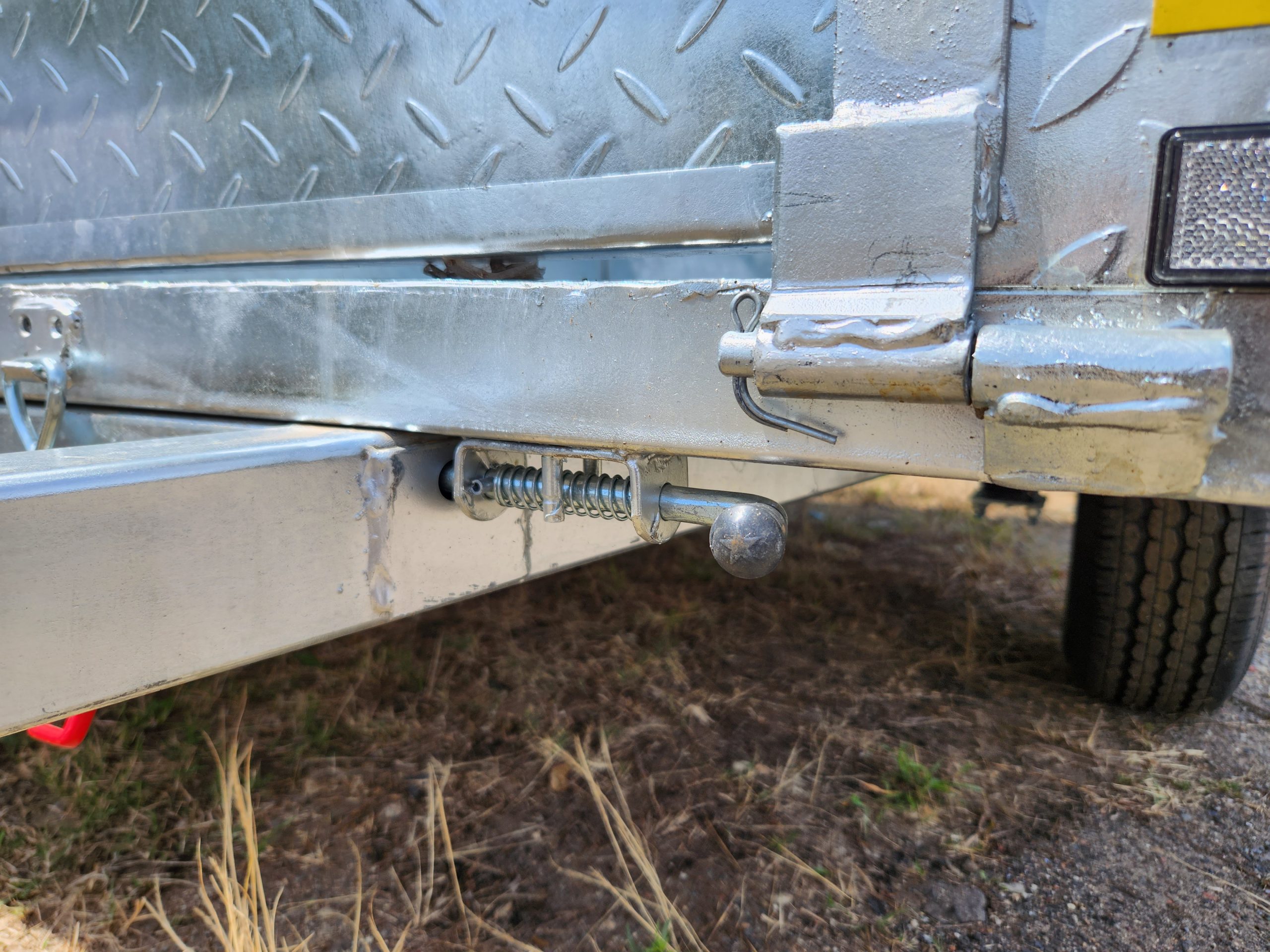

| 4 Locking Points On Drawbar | |
| Flooring | Checker Plate Floor |
| Tie Down Rails All Around | |
| Better Structure Support 50mm×50mm SHS Support Beams From Left To Right 40mm×40mm SHS Support Beams From Front To Back | |
| Step-up Platforms On Both Sides | |

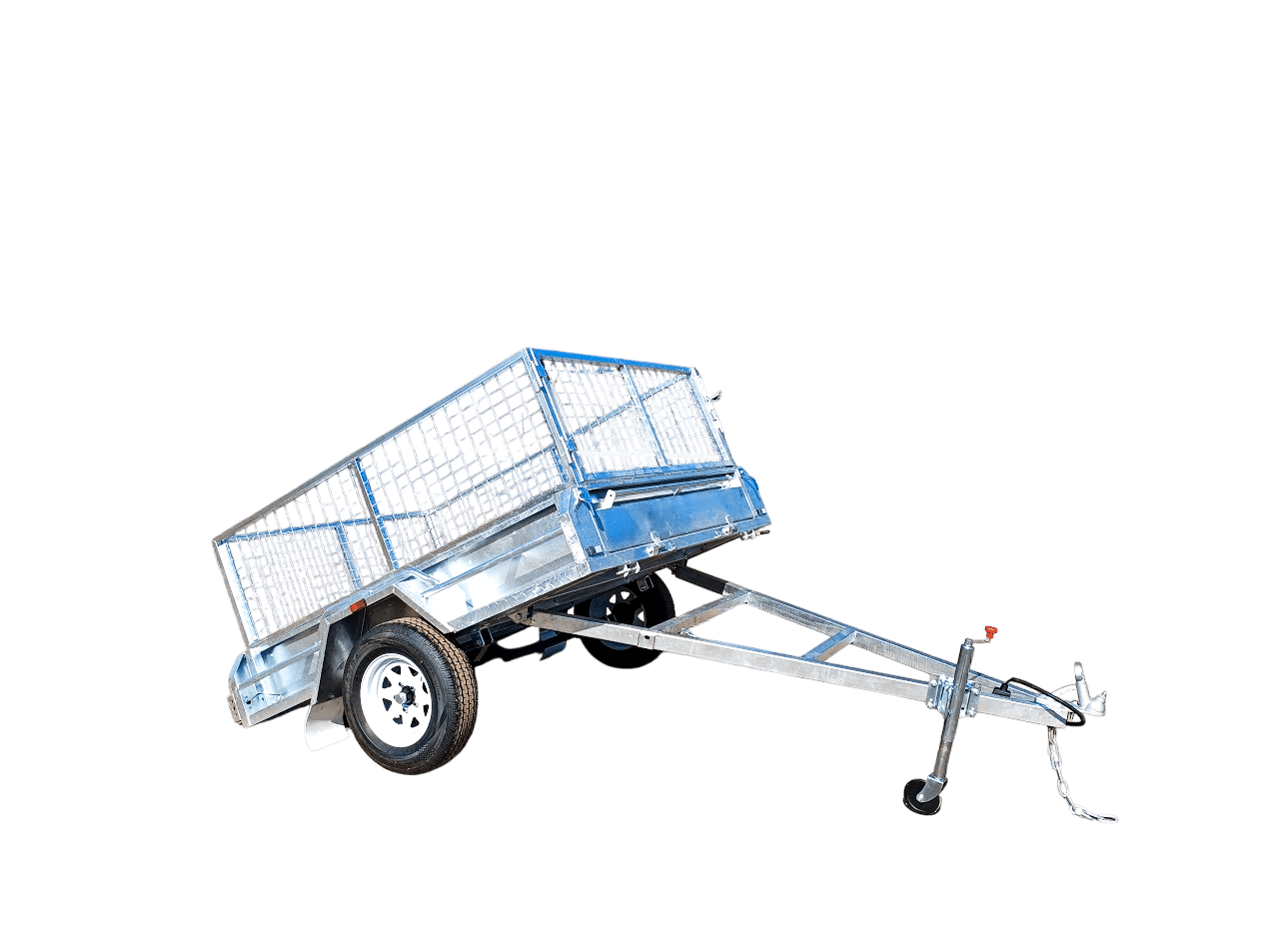

| Axle | Single Axle, 40mm Round Solid Axle |
| Brake | None |
| Springs | 45mm 5 Leaf 6mm Eye To Eye |
| Wheel Size | 13″ |
| Tyre Size | 165/13 |
| Coupling | 50mm 2000kg |
| Jockey Wheel | 6” Swing up |

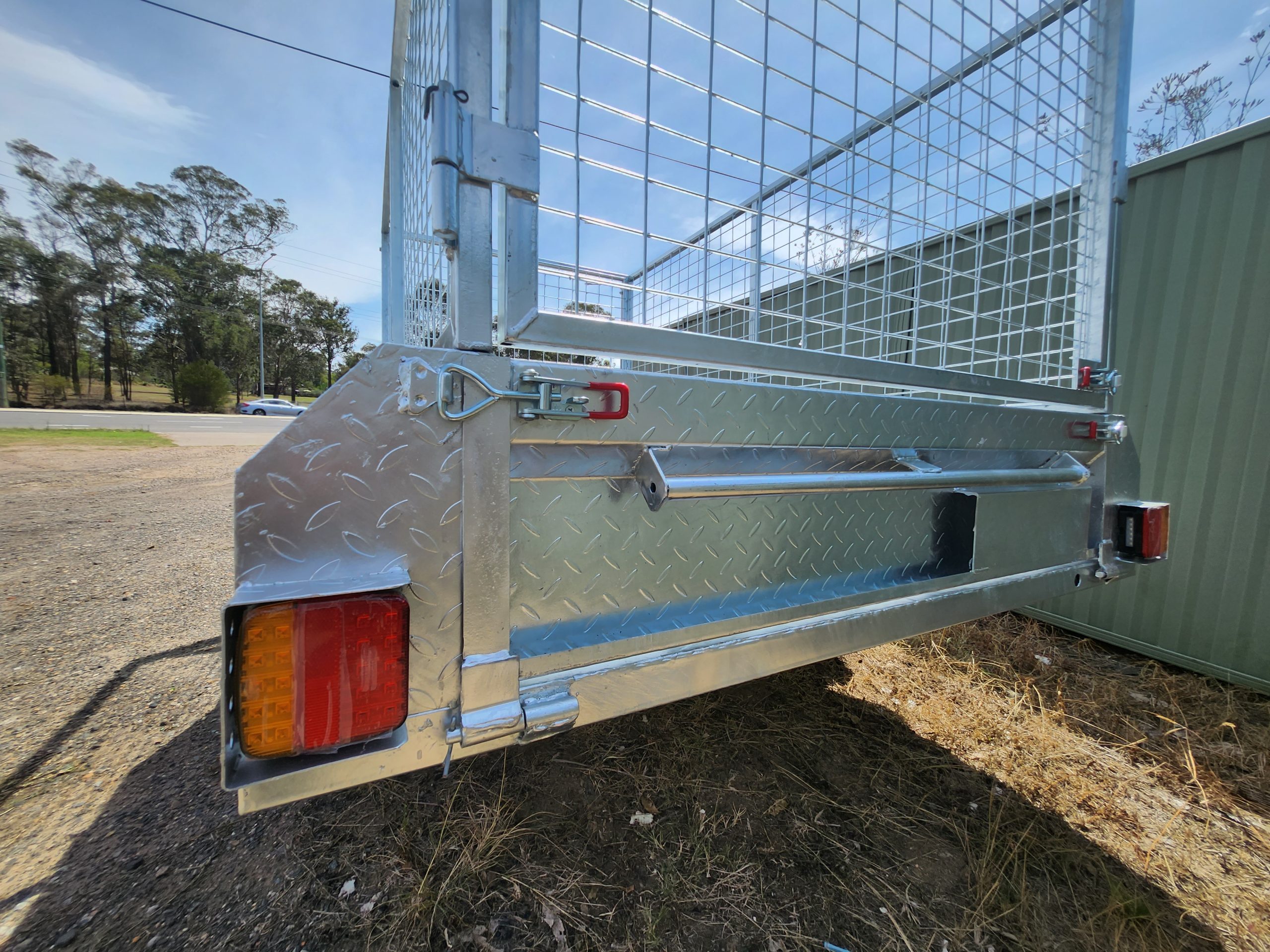

| Light | Tail Light, LED |
| Plug | 7 Pin, Flat/ Small Round/ Big Round |
| 1 Year Limited Warranty |
