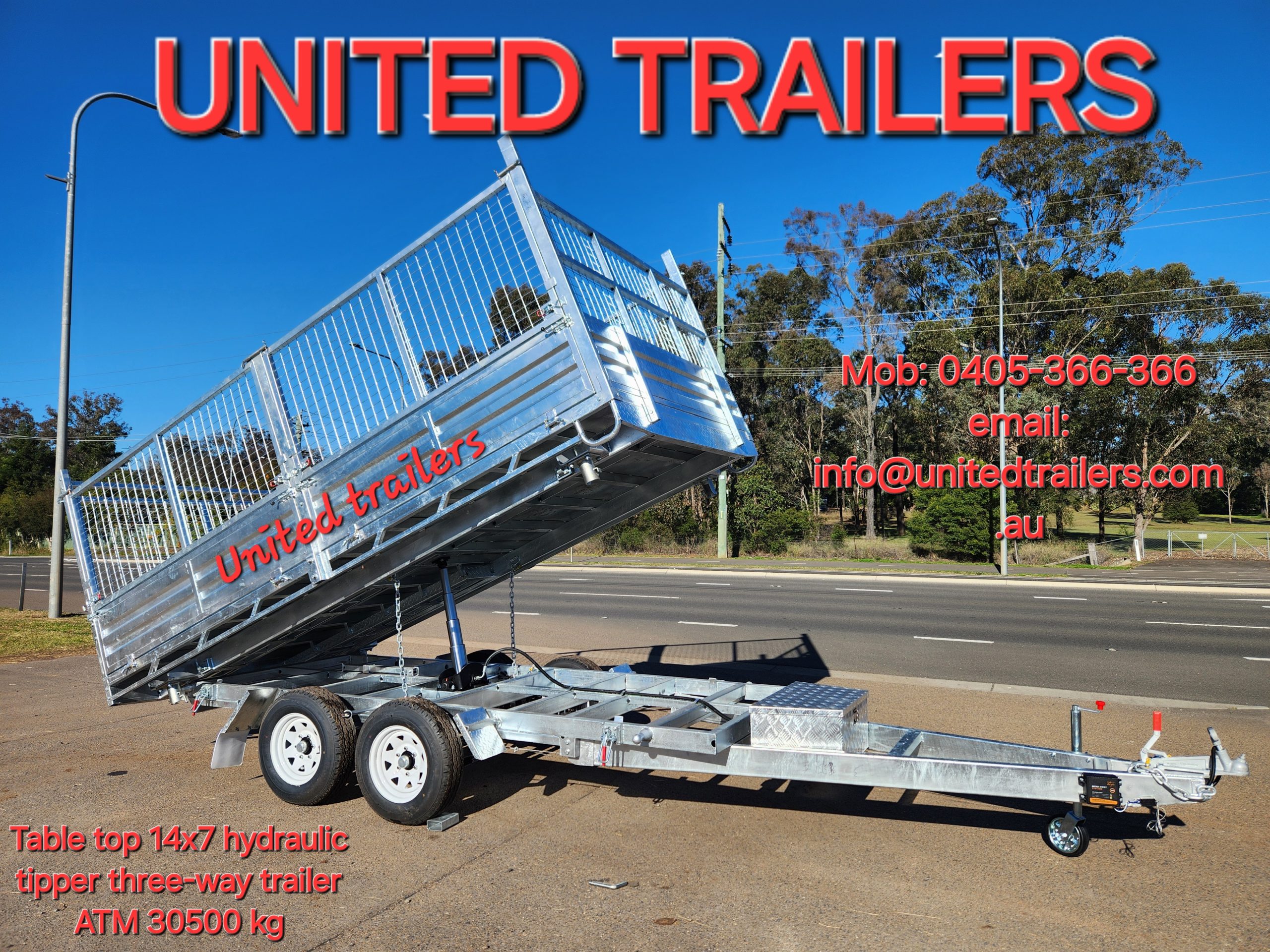

14×7 Flat top /Table top 3 Way Hydraulic tipper Trailer 3500 KG ATM

ATM: 3500kg

TARE weight: approx. 1400–1500kg

Hot dipped galvanised, fully welded body and chassis

Trailer tray size: approx. 4265mm (L) × 2135mm (W) (14×7)

Internal dimension with side walls up: approx. 4170mm (L) × 2050mm (W)

Side walls: 445mm high, drop‑down, easily removable

2.5mm fully welded checker plate floor

3‑way hydraulic tipping function (rear and both sides)

Front and rear step‑up platforms on both sides

Dual axle, 50mm square solid axles

8″ heavy‑duty swing‑up jockey wheel

Brand new 15″ Sunraysia rims with LT truck tyres

Multi‑stage hydraulic tipping cylinder with electric pump and battery

Removable front and rear drop‑down gates

Drawbar: 1900mm, 150×50×4–5mm RHS

Chassis: 100×50mm RHS, reinforced cross‑members

Tie‑rail bar: 40×40mm RHS both sides

Under‑body slide‑out ramps (around 2000mm L × 300mm W) rated for equipment loading

Heavy‑duty rocker‑roller suspension (8‑leaf springs)

Quick‑release 50mm 3500kg coupling, electric brakes with breakaway unit

13mm ADR safety chains × 2

12″ electric drum brakes on all wheels

LED combination tail lights and side markers, 7‑pin flat plug

Compliance plate and mudflaps included

1‑year limited warranty
