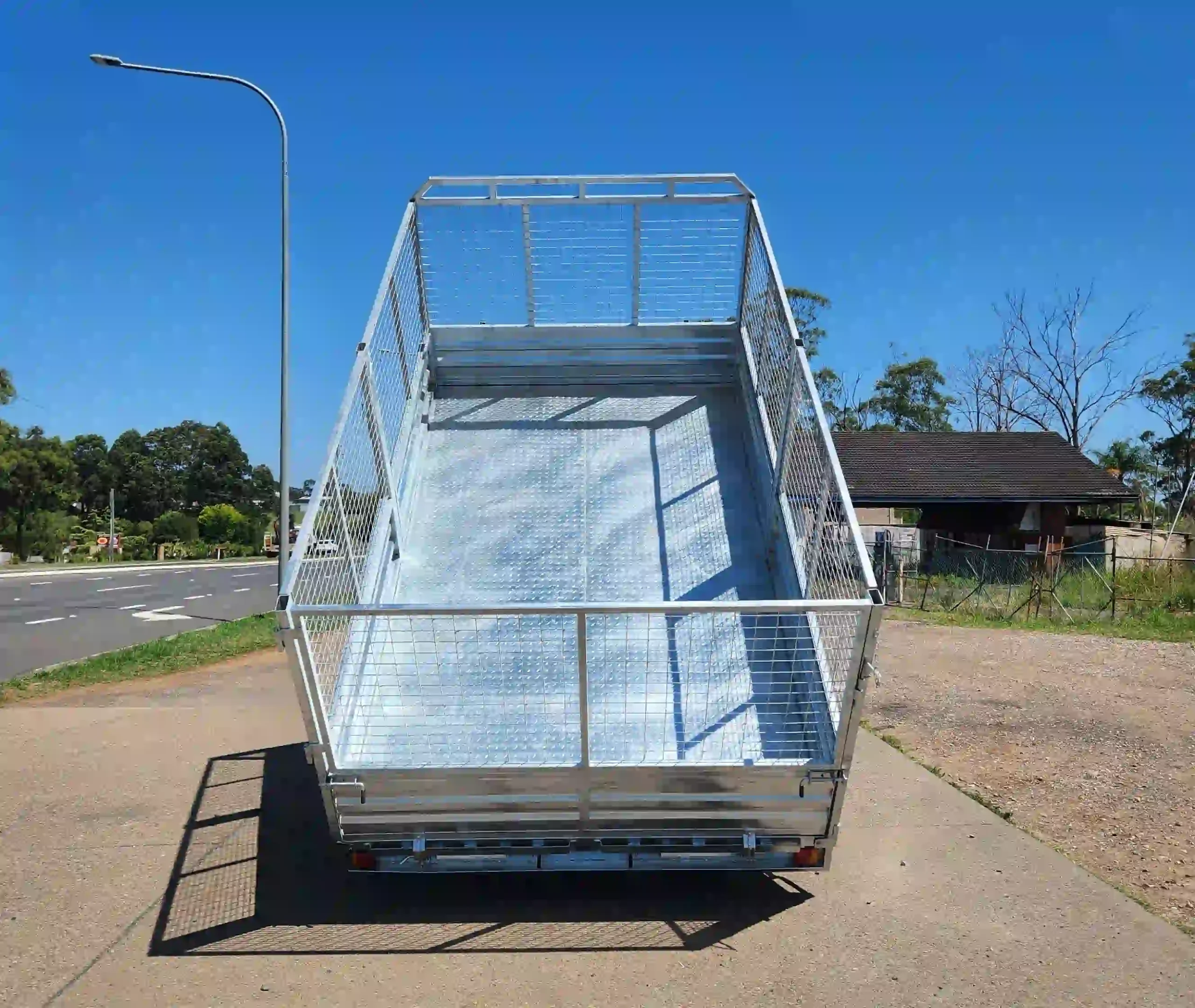

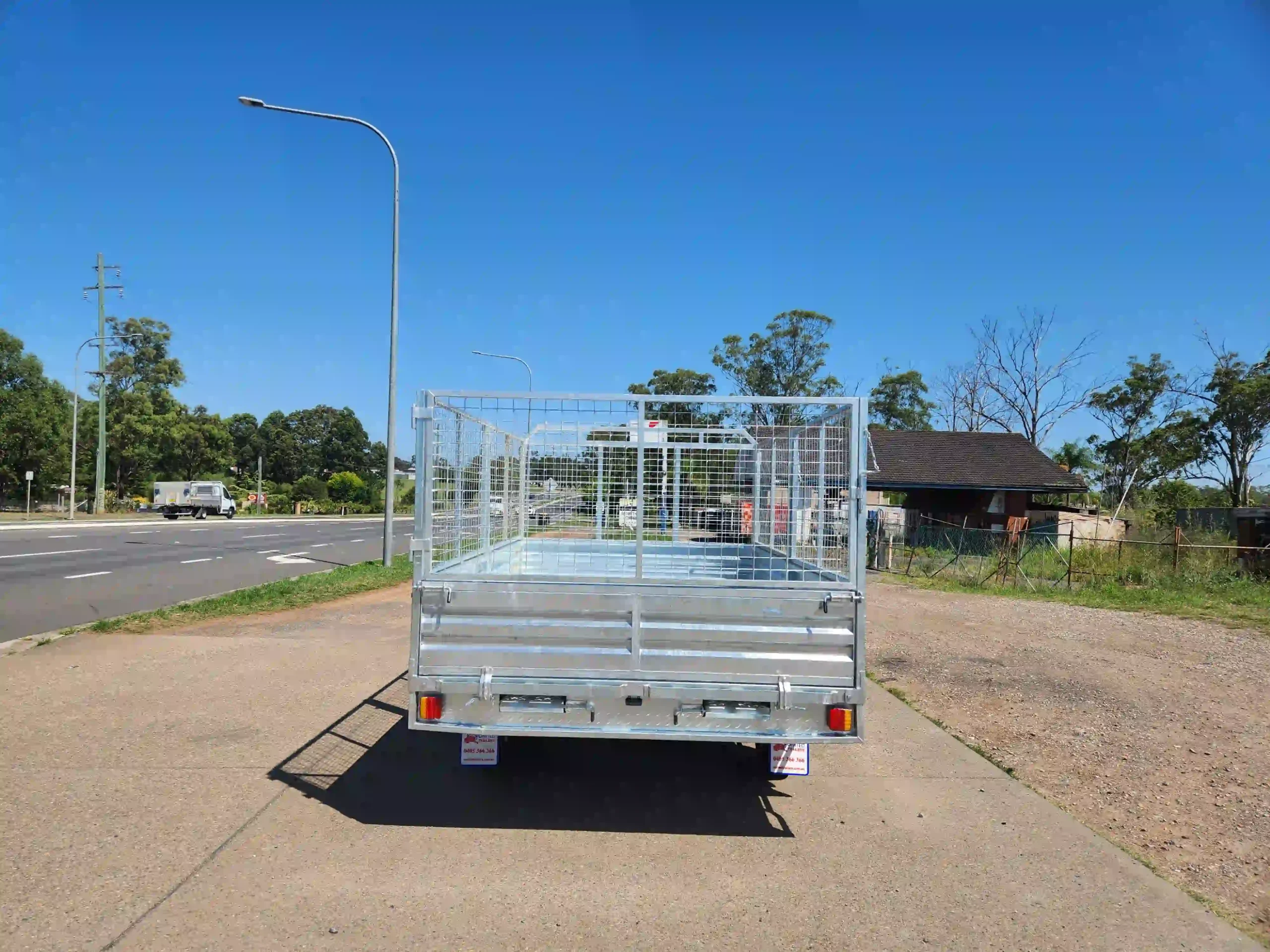

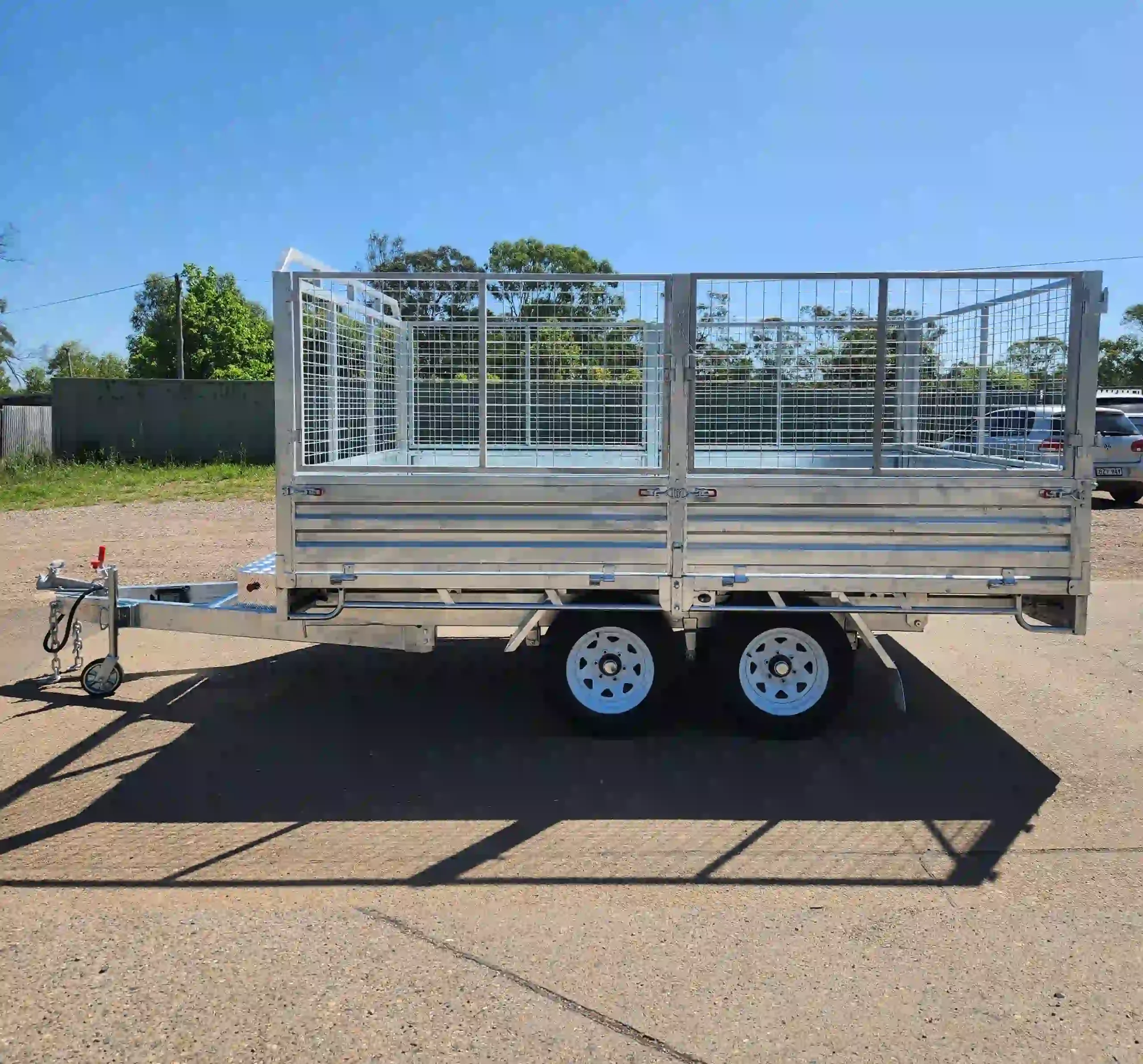

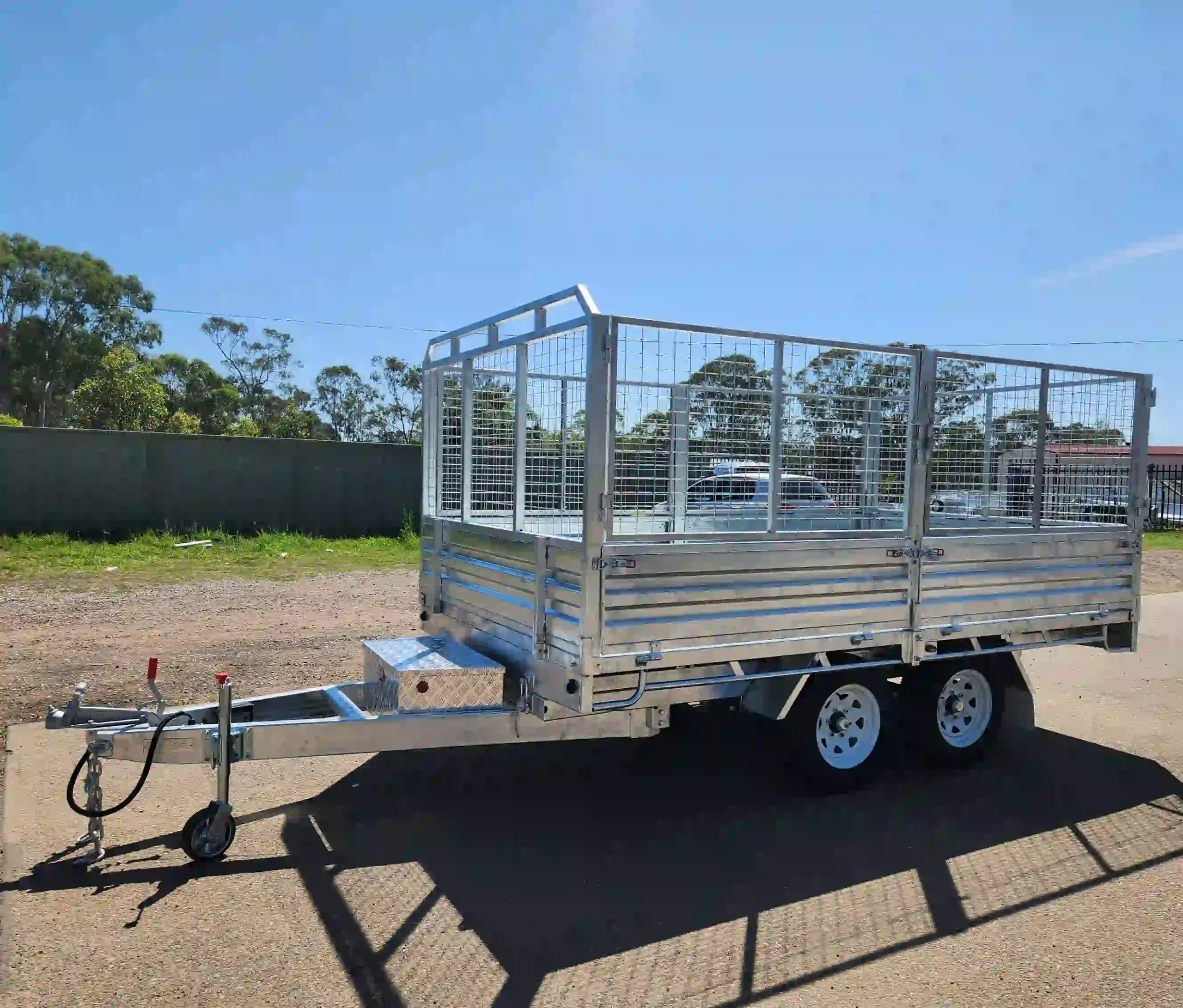

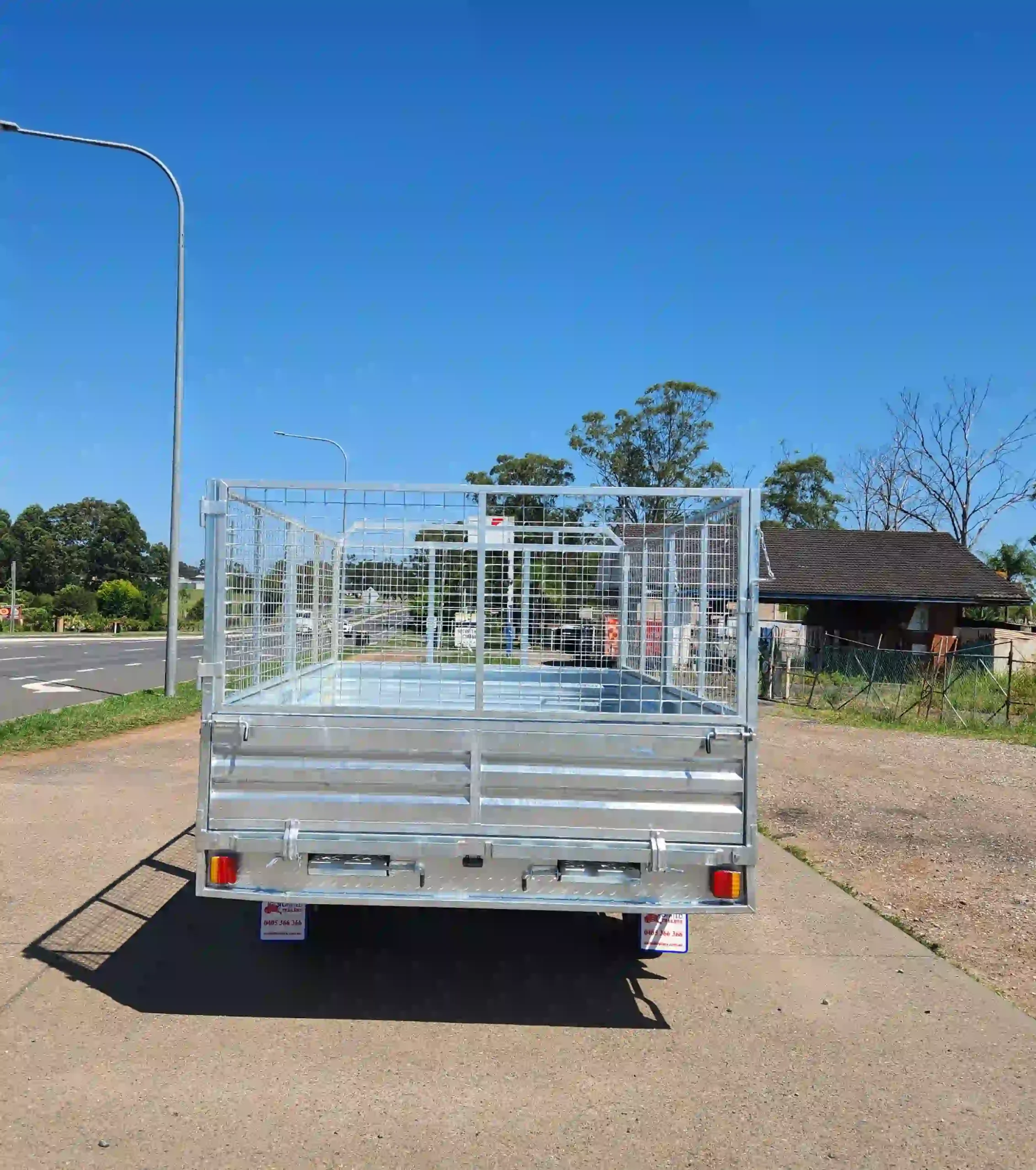

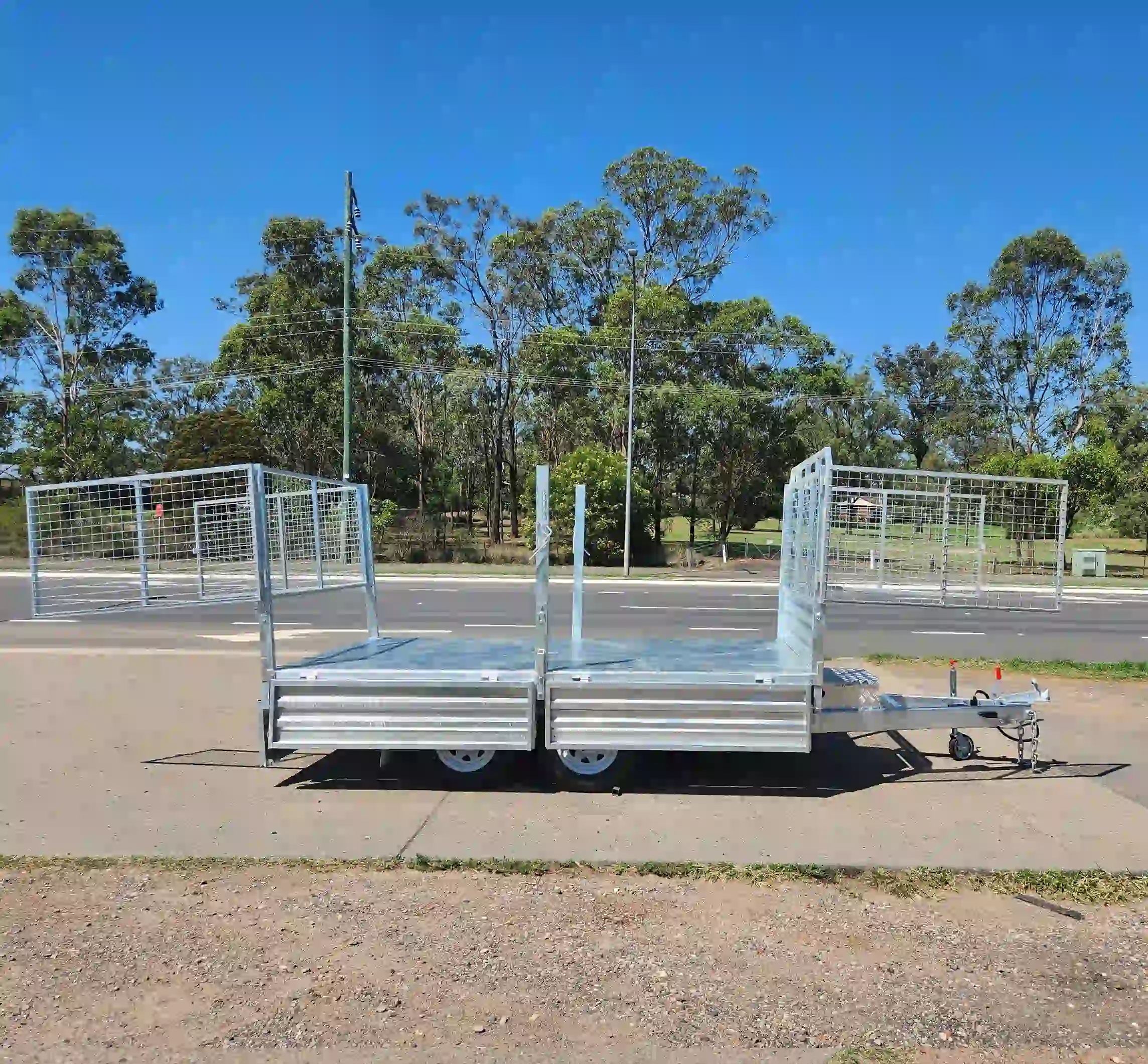

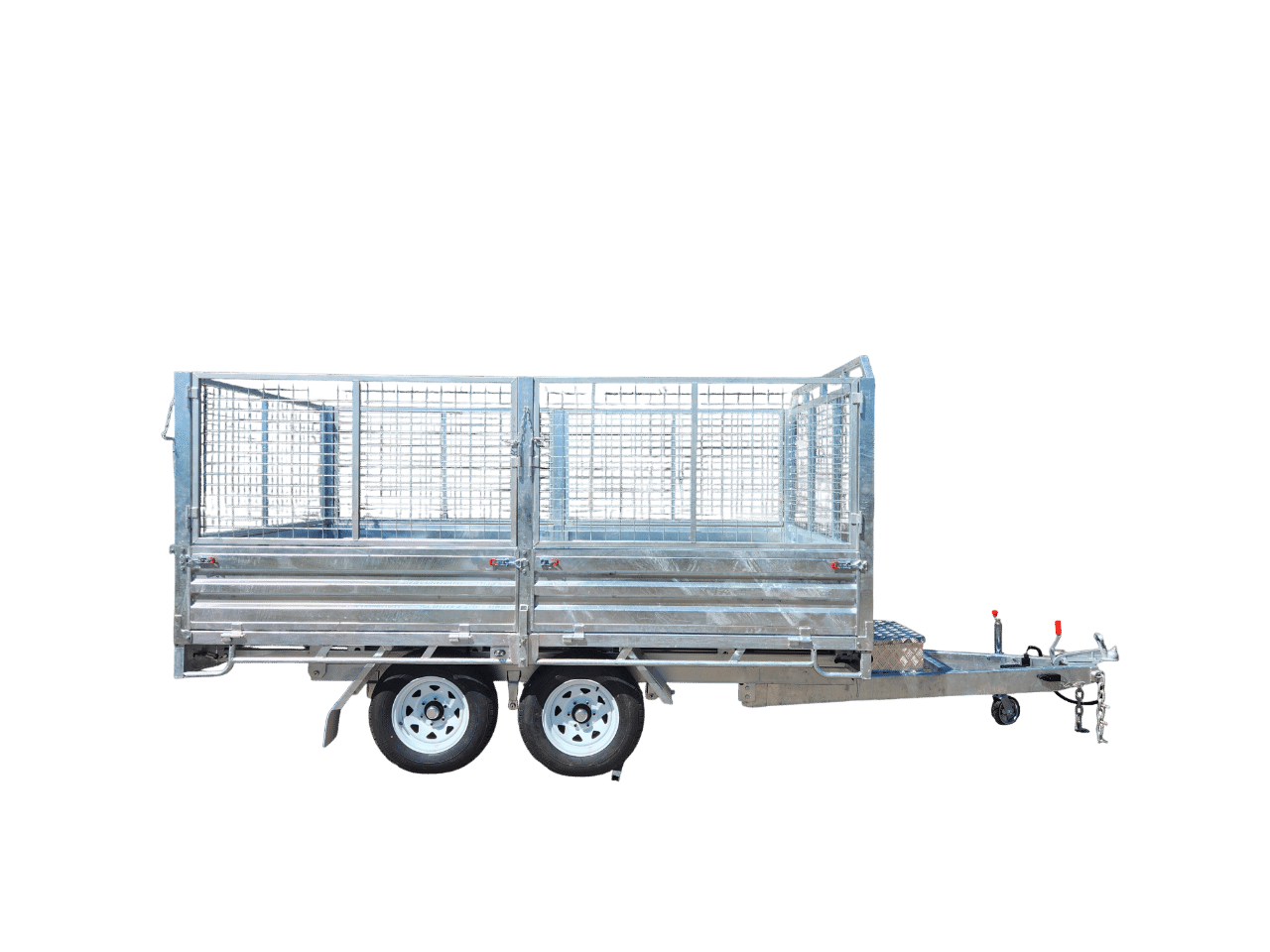

12×7 Flat top /Table top Hydraulic tipper Trailer 3500 KG ATM

ATM: 3500kg

TARE weight: approx. 1200kg

Hot dipped galvanised, fully welded body and chassis

Trailer tray size: 3660mm (L) × 2135mm (W)

Internal dimension with side walls up: approx. 3570mm (L) × 2050mm (W)

Side walls: 445mm high, drop‑down, easily removable

2.5mm fully welded checker plate floor (two‑piece)

Front and rear step‑up platforms on both sides

Dual axle, 50mm square solid axles

8″ swing‑up jockey wheel

Brand new 15″ Sunraysia rims with LT 195R/15 tyres

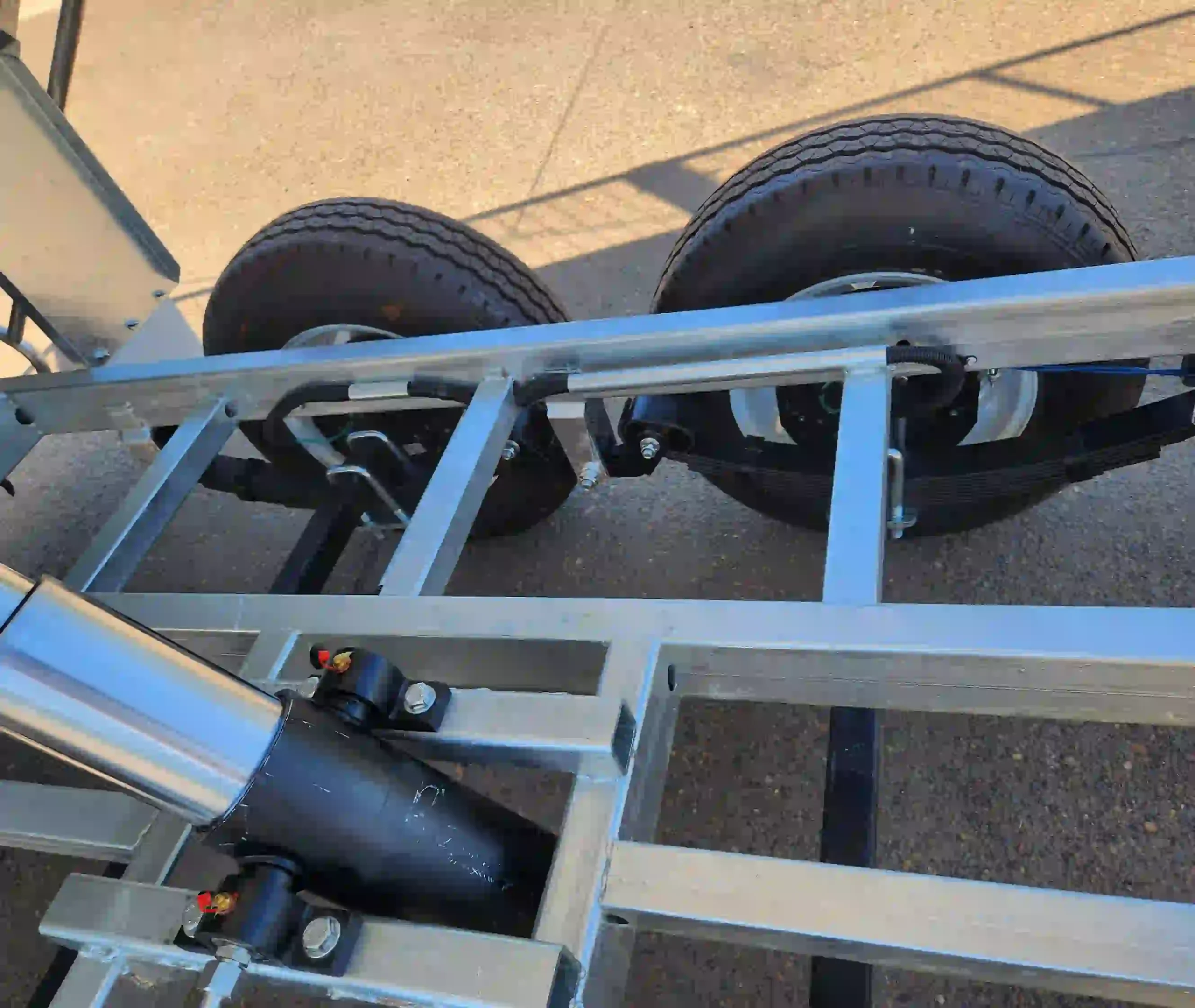

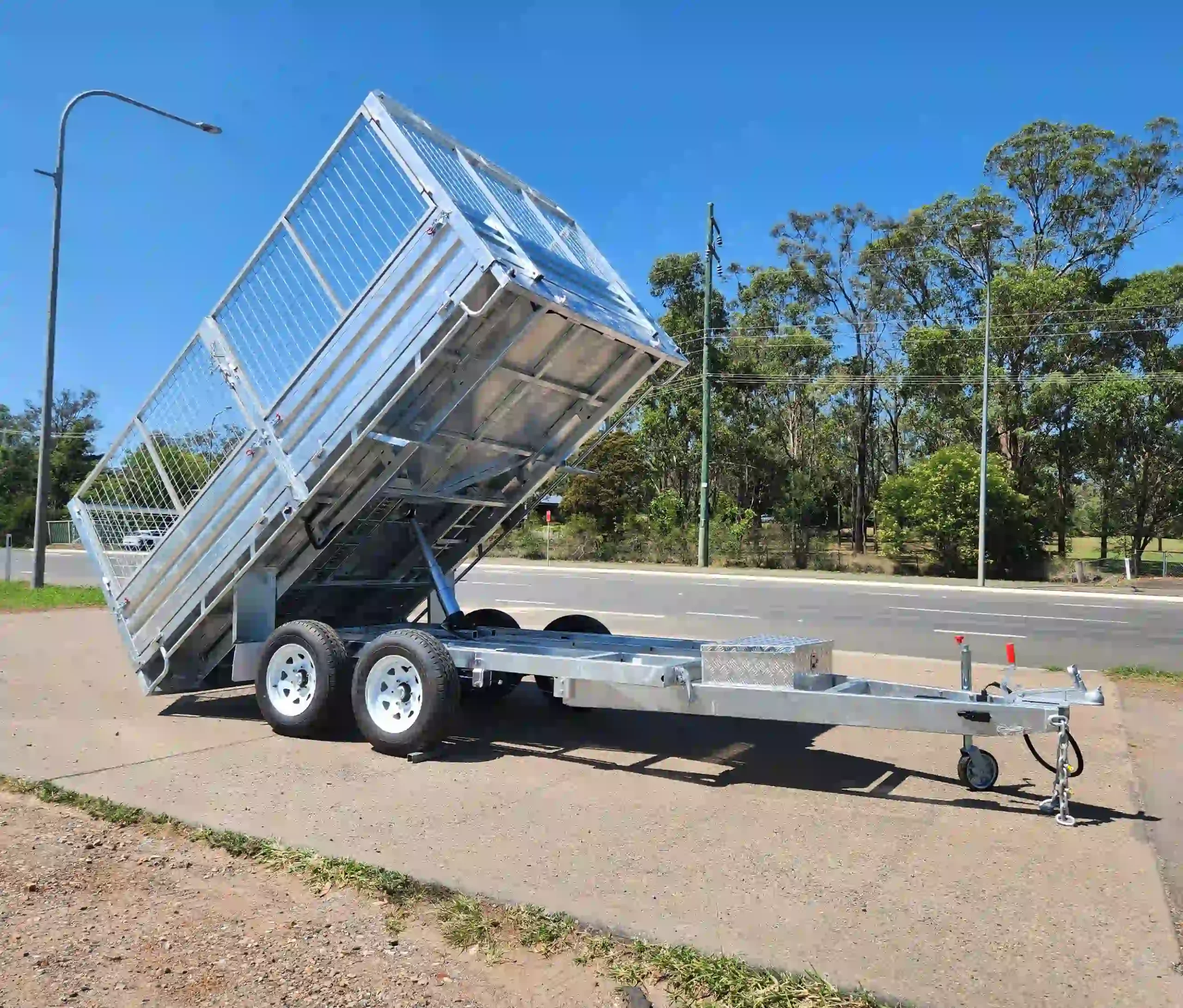

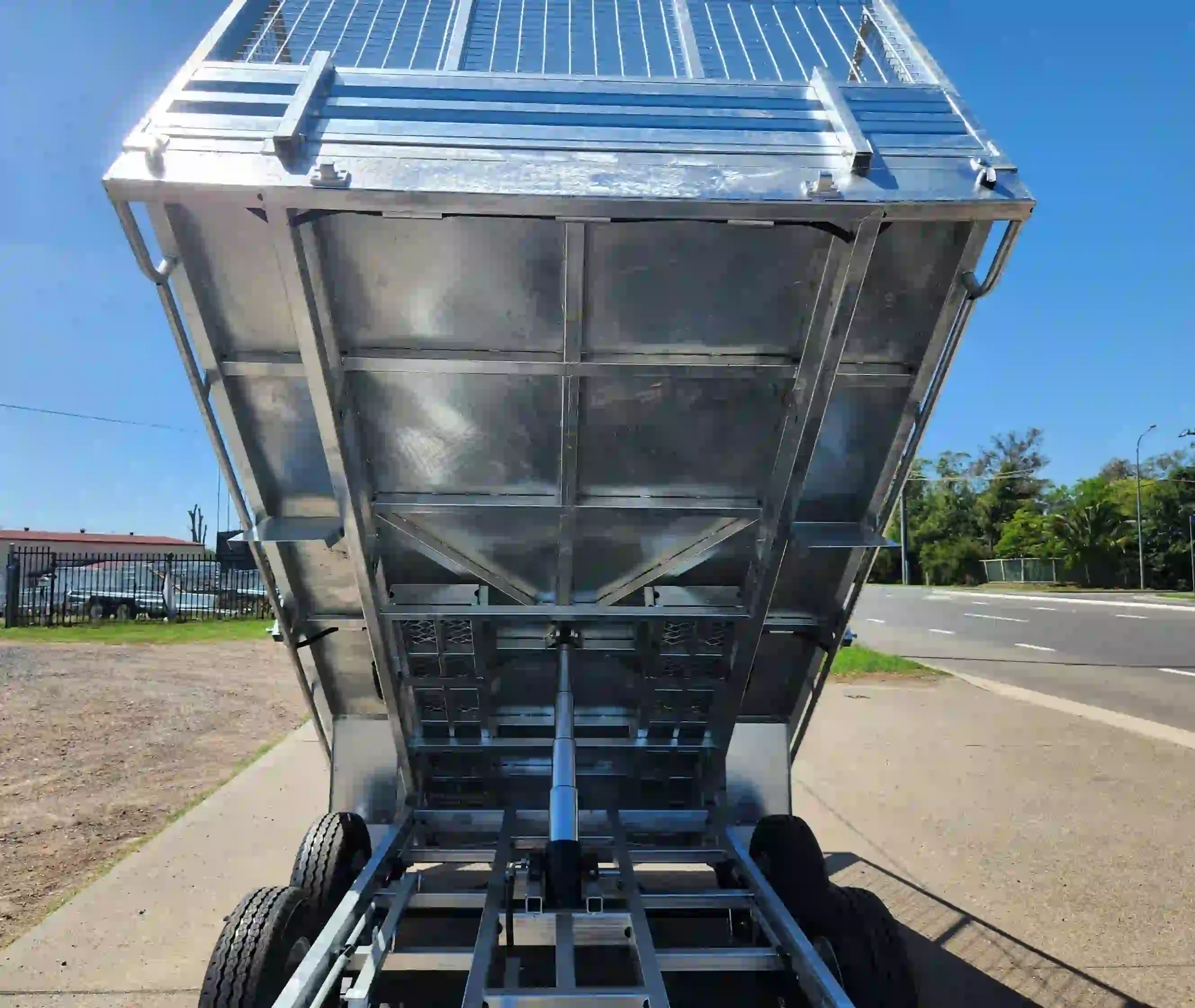

5‑stage hydraulic tipping cylinder with electric pump

Removable front and rear drop‑down gates

Drawbar: 1900mm, 150×50×4mm RHS

Chassis: 100×50×3mm RHS, reinforced under floor (left–right & front–back)

Tie‑rail bar: 40×40mm RHS both sides

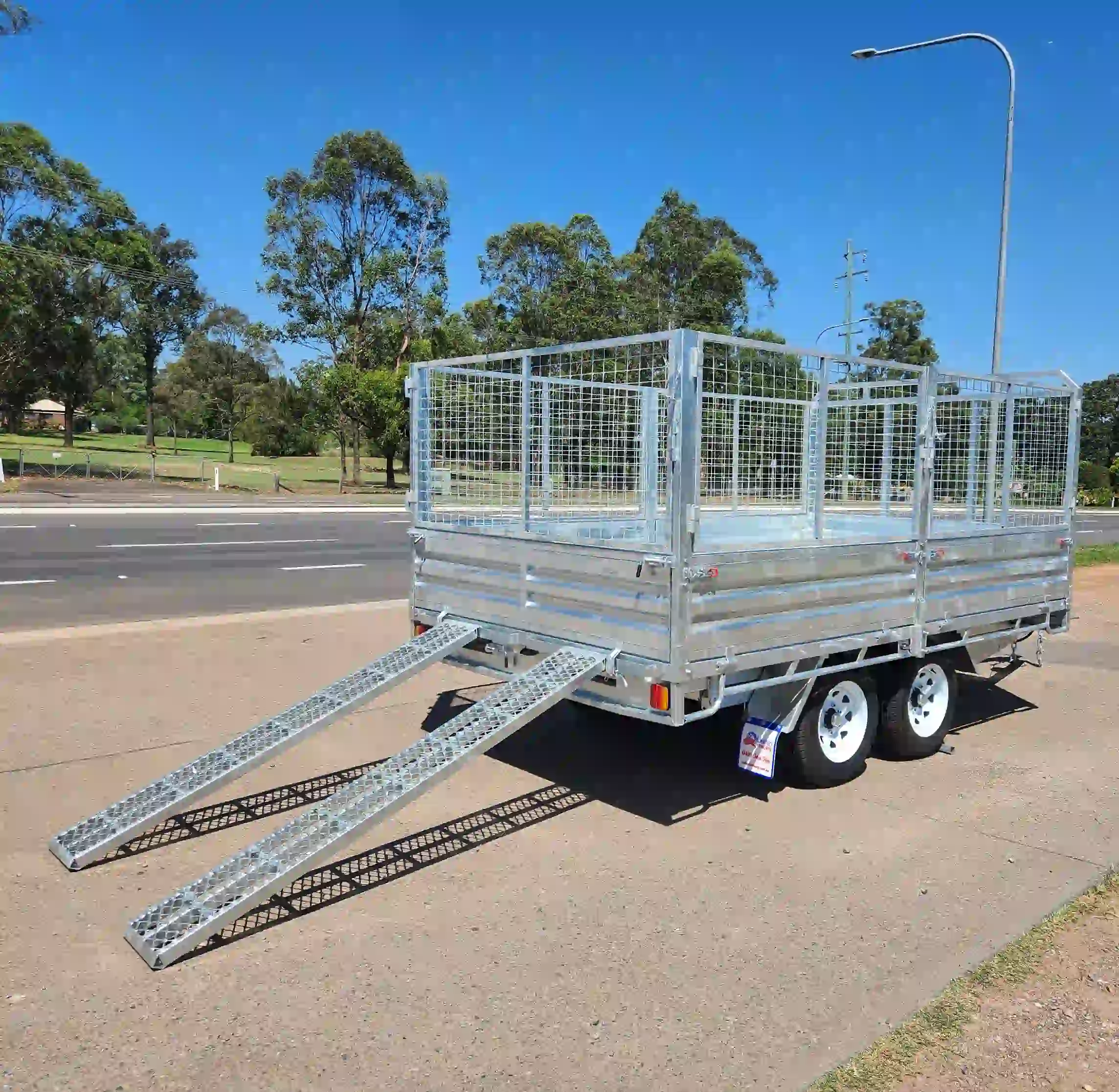

Under‑body slide‑out ramps (approx. 2000mm L × 300mm W) rated 2T a pair

8‑leaf 7mm rocker‑roller suspension

Quick‑release 50mm 3500kg coupling with override or electric‑brake setup

13mm ADR safety chains × 2

12″ electric drum brakes on all wheels with breakaway system

LED tail lights and side markers, 7‑pin flat plug

Compliance plate and mudflaps included

1‑year limited warranty
