12×6 Hydraulic Tipper Tandem Axle Galvanised Box Trailer 3500 KG ATM
United trailers 12×6 Hydraulic Tipper Tandem Axle Galvanised Box Trailer is a premium quality Box trailers engineered and manufactured to fit Australian standard and harsh environment. The standard features are including but not limited to fully welded end to end chassis, hot dipped galvanized steel,8” swing-up jockey wheel the strength of our trailers is immense!
- ATM: 3500KG
- Tare Weight: 1140 KG
- Construction: Fully welded body and chassis, hot-dipped galvanised
- External Dimensions: L-5560mm x W-2335mm
- Internal Dimensions: L-3585mm x W-1820mm x H-445mm
- Floor & Sides: 2.5mm checker plate floor (4-piece), folded side panels
- Step-Up Platforms: Located on both sides
- Axle: Dual axle, 50mm square solid
- Jockey Wheel: 8” swing-up
- Wheels & Tyres: Brand new Sunraysia rims with LT tyres (195R/15)

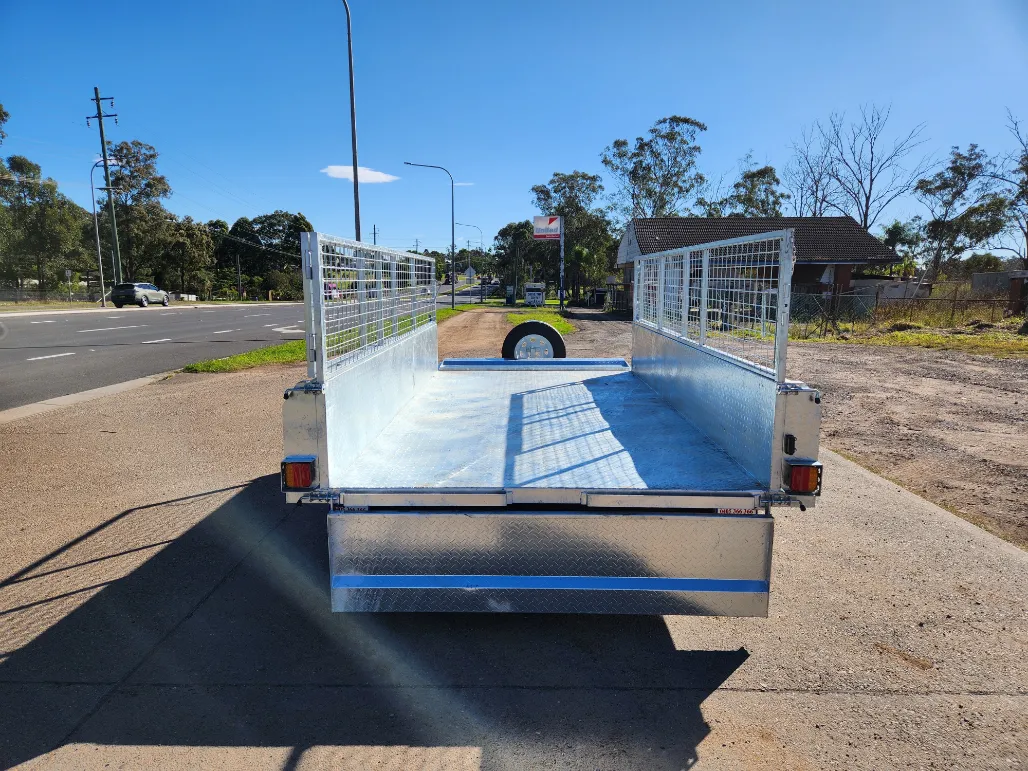

- Gates: Removable front and rear drop-down gates

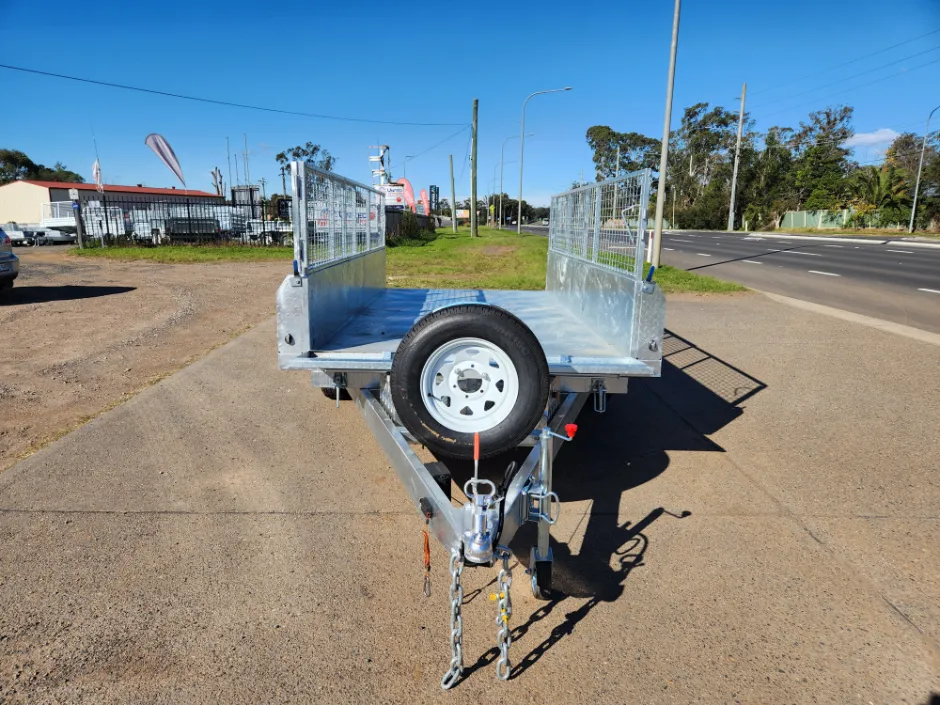

- Drawbar: 1900mm long, 150mm x 50mm RHS
- Chassis Reinforcement: 75mm x 50mm SHS underfloor (left-to-right & front-to-back)
- Tie Rail: 32mm bar on all 4 sides

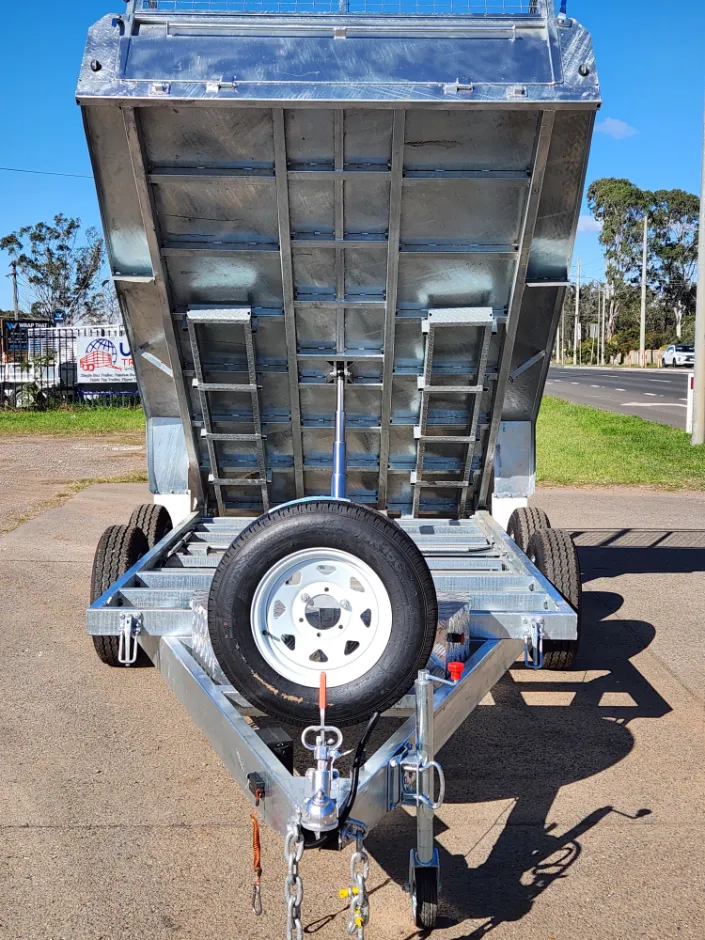

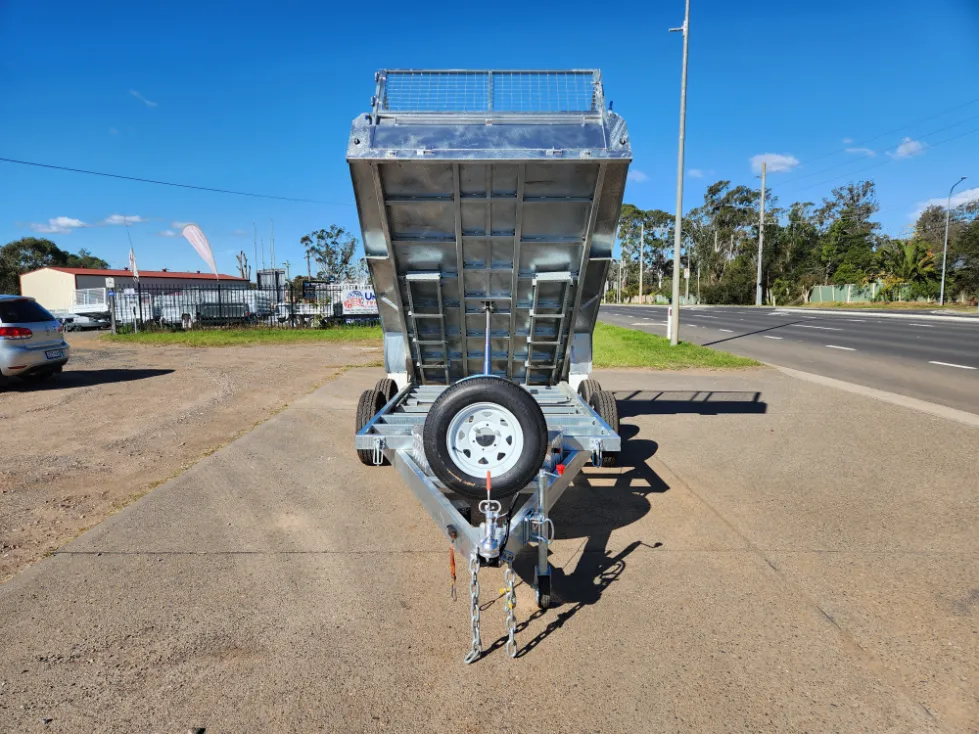

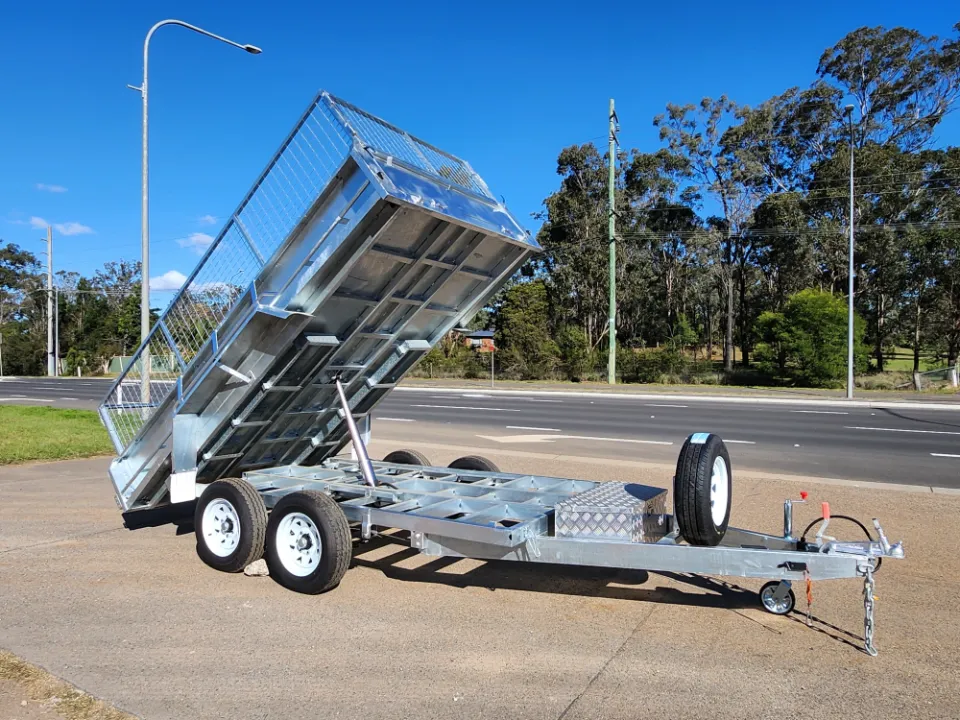

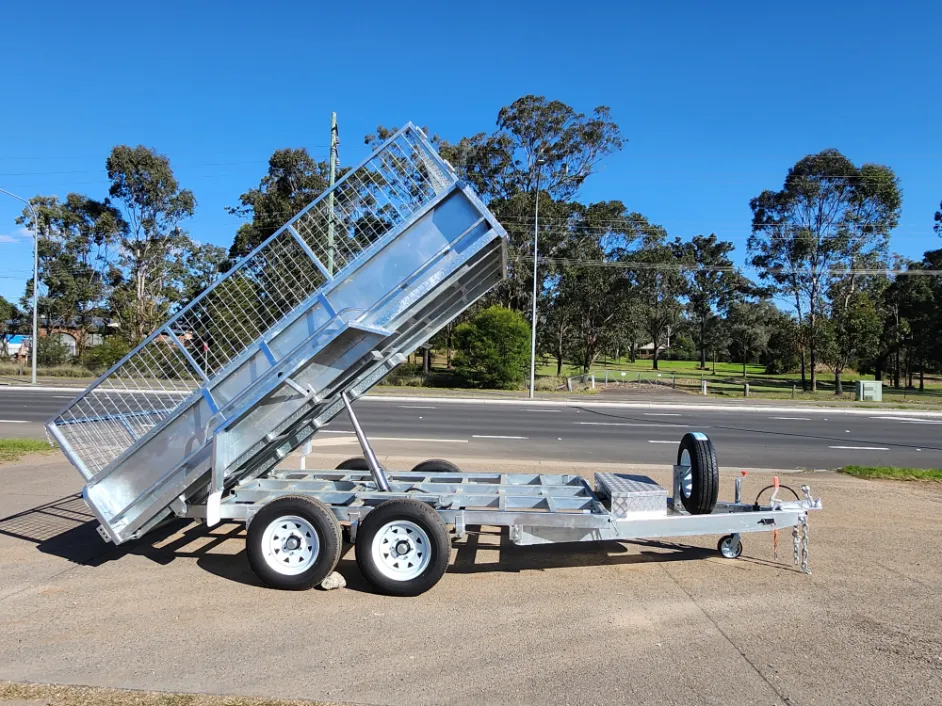

- Hydraulics: 5-stage 4.5T hydraulic cylinder with electric hydraulic power pack
- Ramps: Underbody slide-in ramp pair (2000mm x 300mm), 2-ton rated – optional at additional cost
- Suspension: 60mm, 8-leaf, 7mm rocker roller
- Coupling: Quick release 50mm, 3500KG over-ride coupling
- Safety Chains: 13mm ADR compliant x 2
- Ladder Rack Holders: Welded onto trailer
- Locking Points: 2 heavy-duty locking points on drawbar
- Brakes: 12” electric drum brakes on all wheels
- Toolbox: Aluminium
- Battery: 35 AMP Battery System
- Lights: LED combination taillights
- Plug: 7-pin flat plug
- Other Inclusions: Compliance plate, mudflaps
- Warranty: 1-Year Limited Warranty
Contact Information:
📞 0405 366 366
📧 info@unitedtrailers.com.au
📍 405 Windsor Road, Vineyard, NSW 2765
🌐 www.unitedtrailers.com.au
We welcome you to visit our place in Vineyard to explore the full range of options and find the best solution for your needs.
Proudly Australian Owned
Licensed Dealer – MD072058
12×6 Hydraulic Tipper Tandem Axle Galvanised Box Trailer 3500 KG ATM
Finance Options Available
Additional Options (Prices Vary by Size):

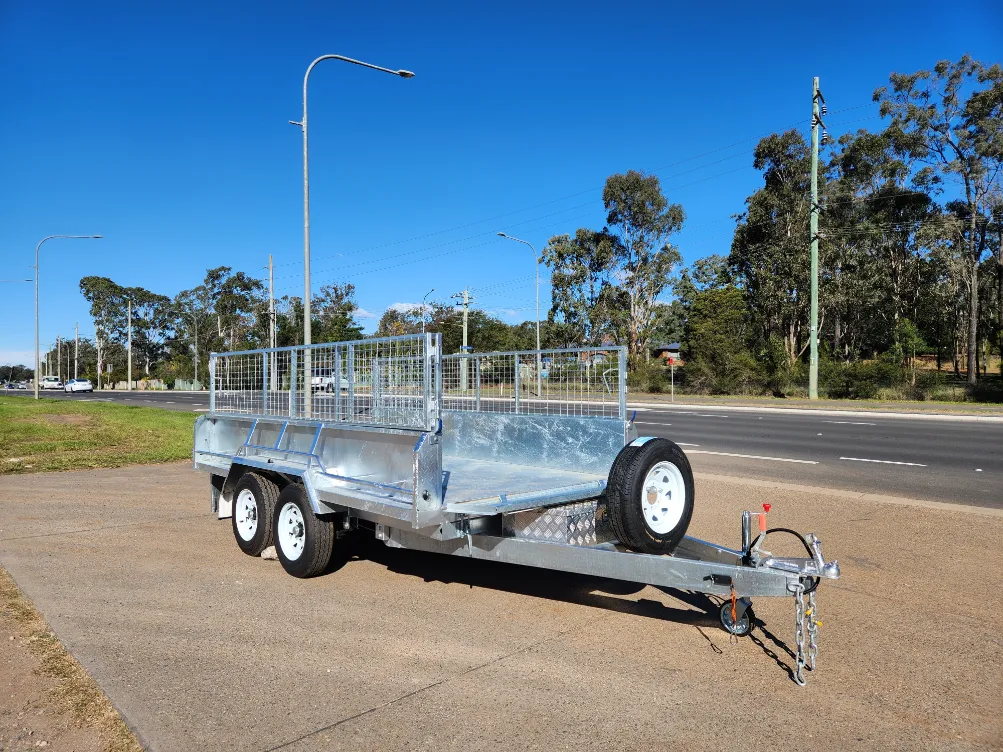

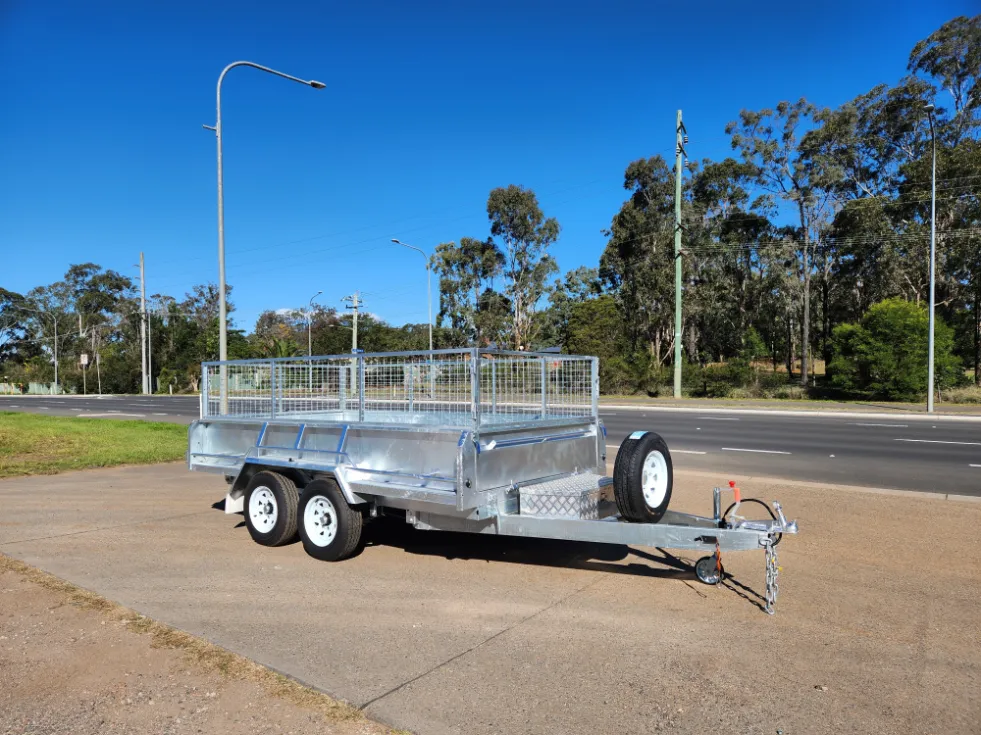

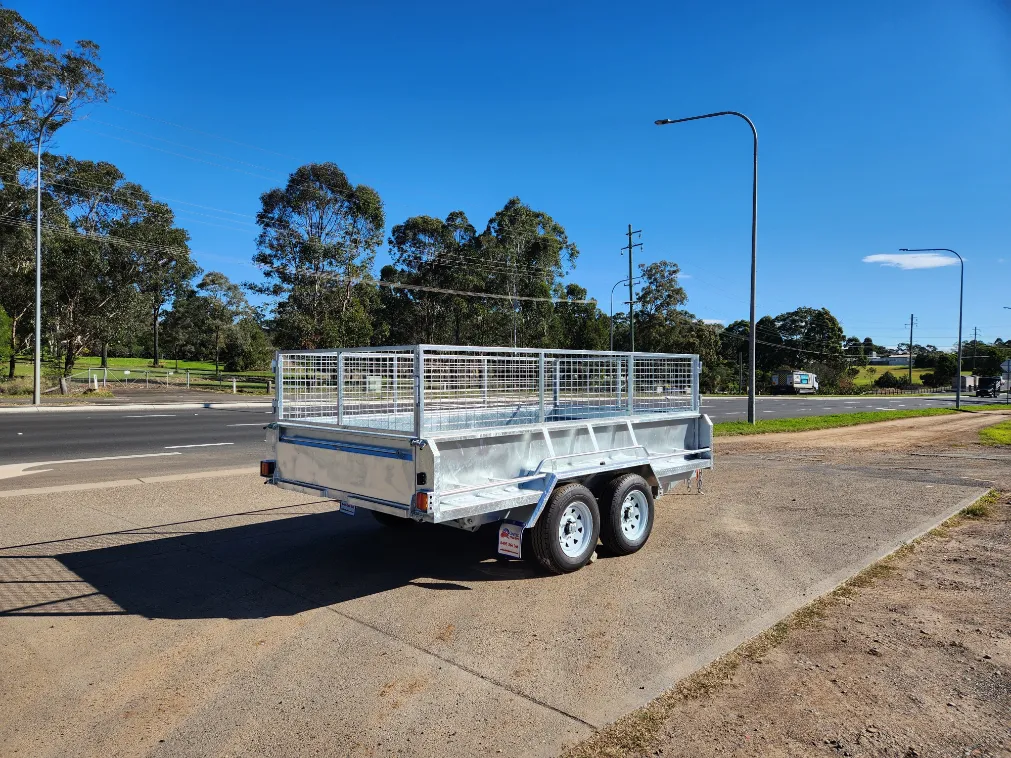

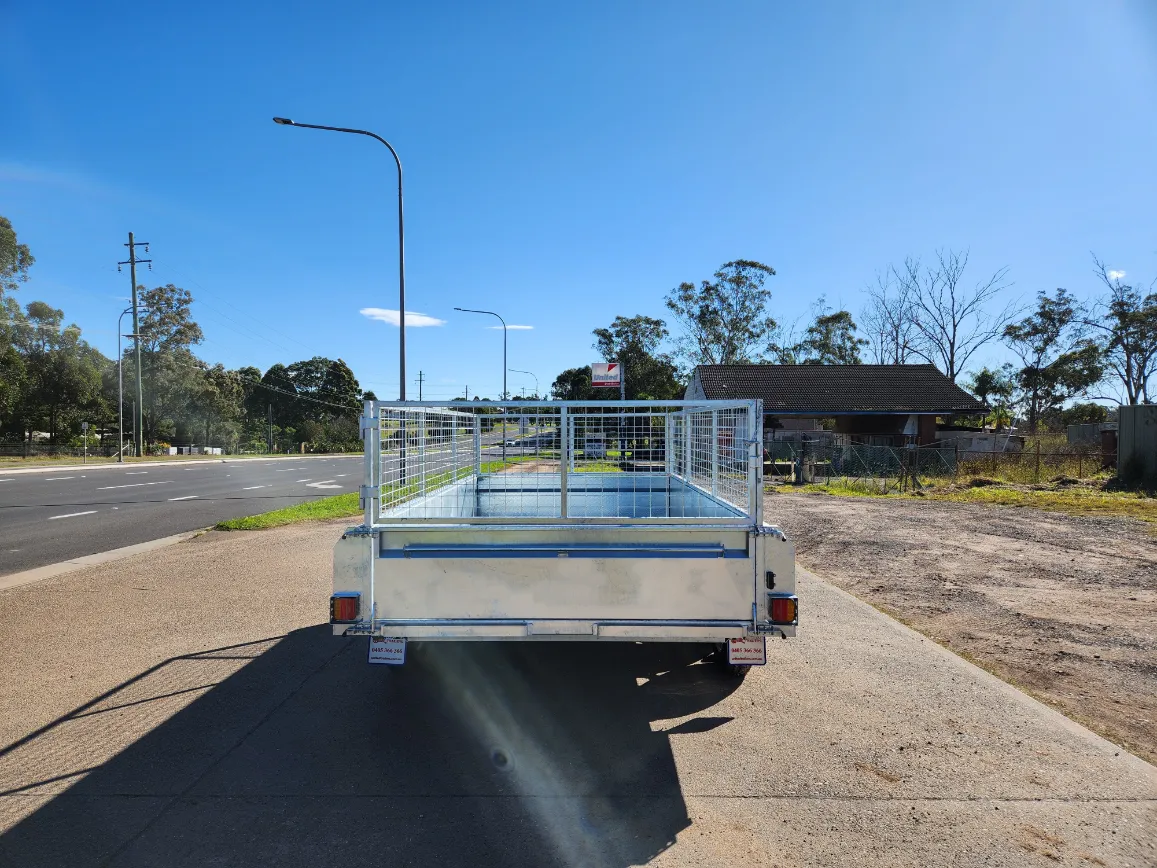

- Mesh Cage (600mm or 900mm)
- Spare Wheel
- Spare Wheel Bracket
- Ladder Rack Pair
- Ramp

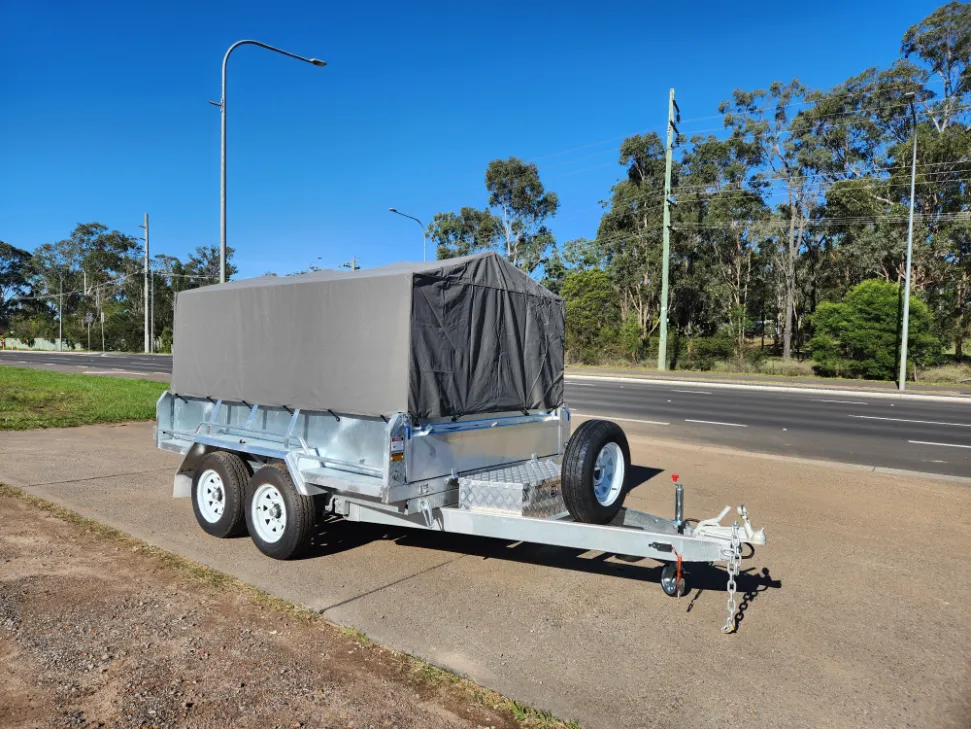

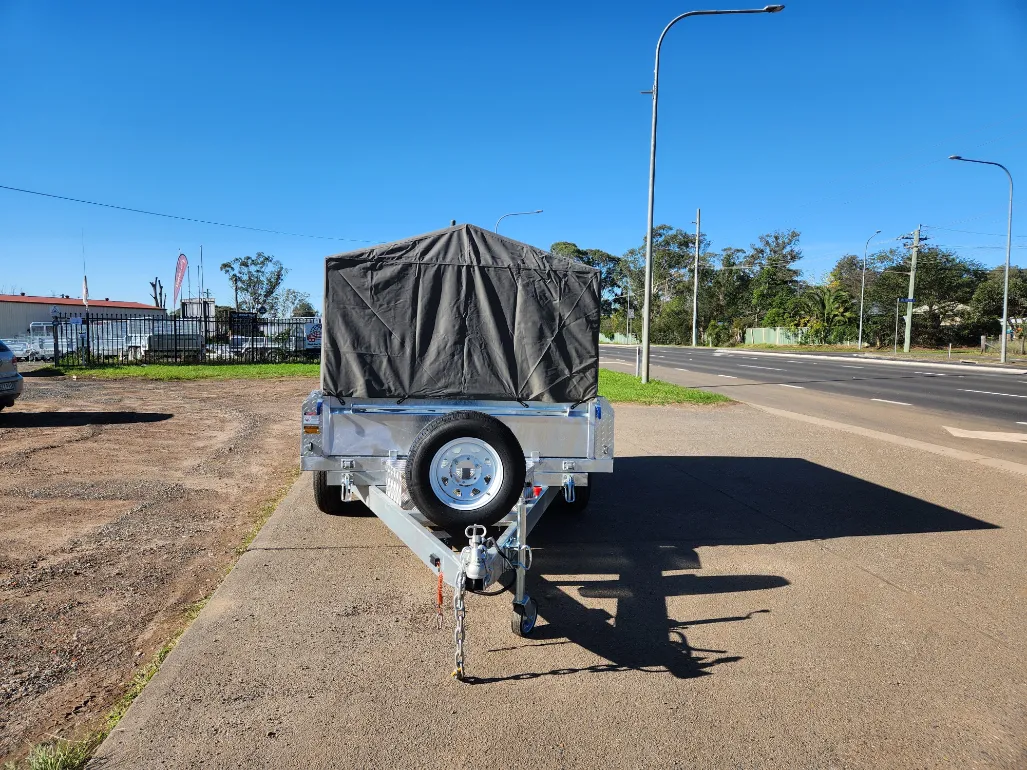

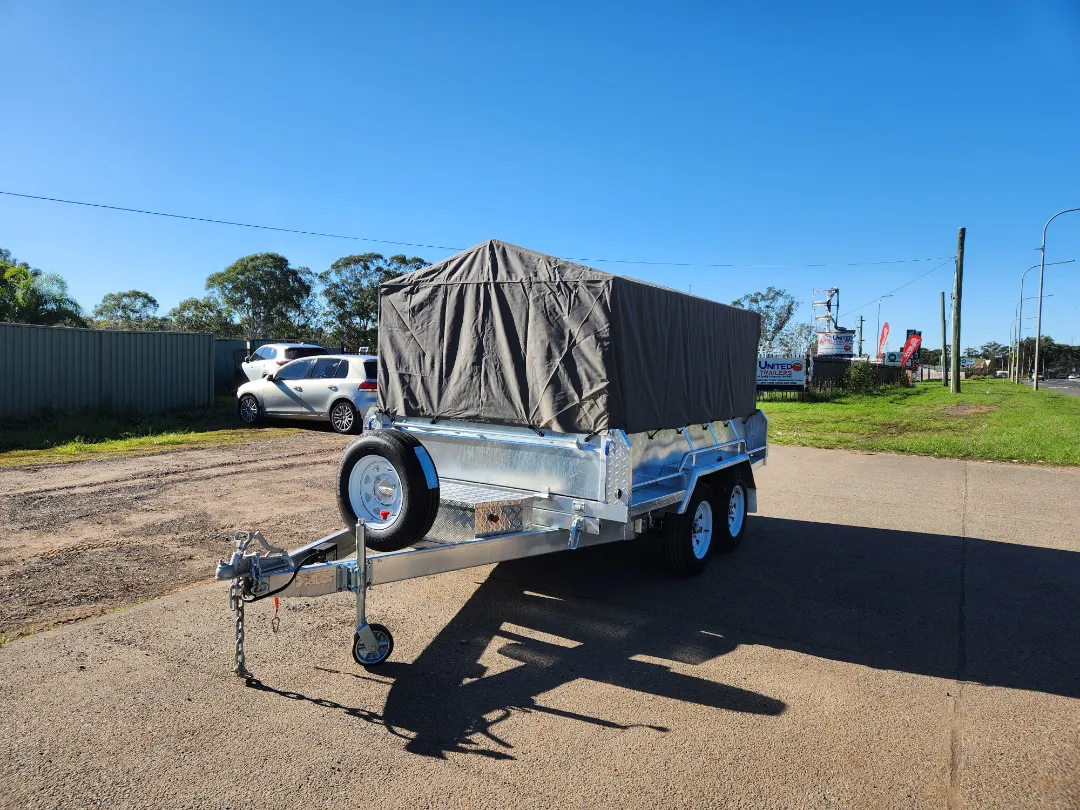

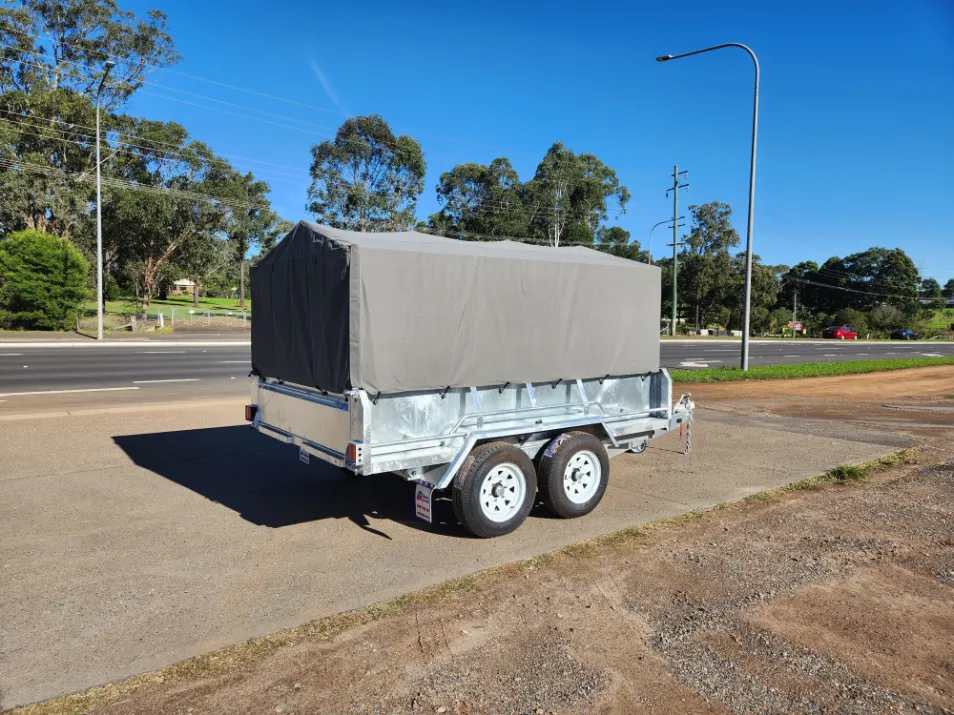

- Canvas Cover (600mm or 900mm)
Payment Options:
- Bank Transfer
- Cash
- MasterCard, VISA, American Express
- (Surcharges: 1.5% for EFTPOS, MasterCard & VISA; 3% for AMEX)
✅ Finance option available

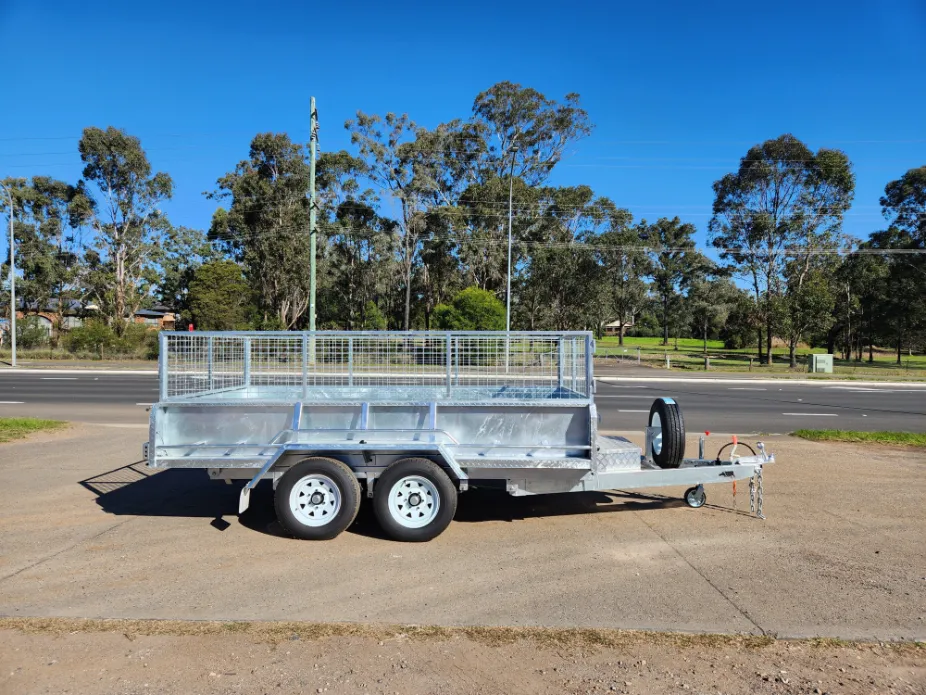

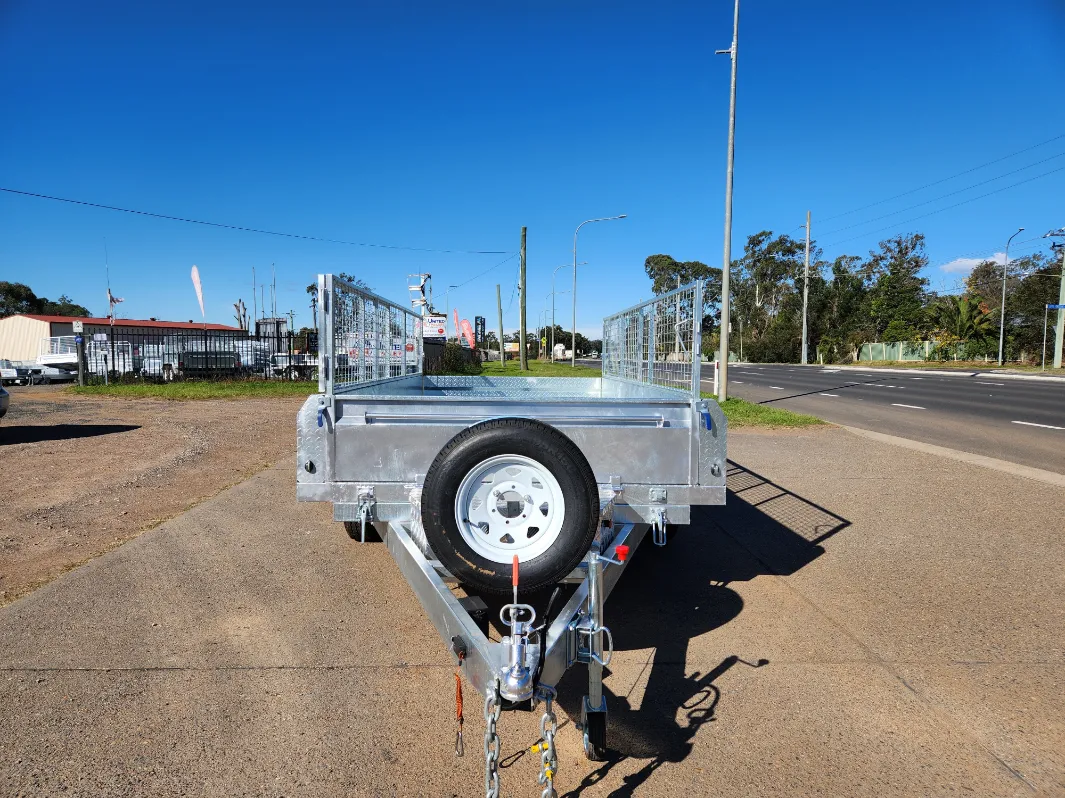

Disclaimer: The product images shown are for illustration purposes only and may not be an exact representation of the product. United Trailers reserves the right to change product specifications at any time without prior notice. Options may show in some of the pictures.
