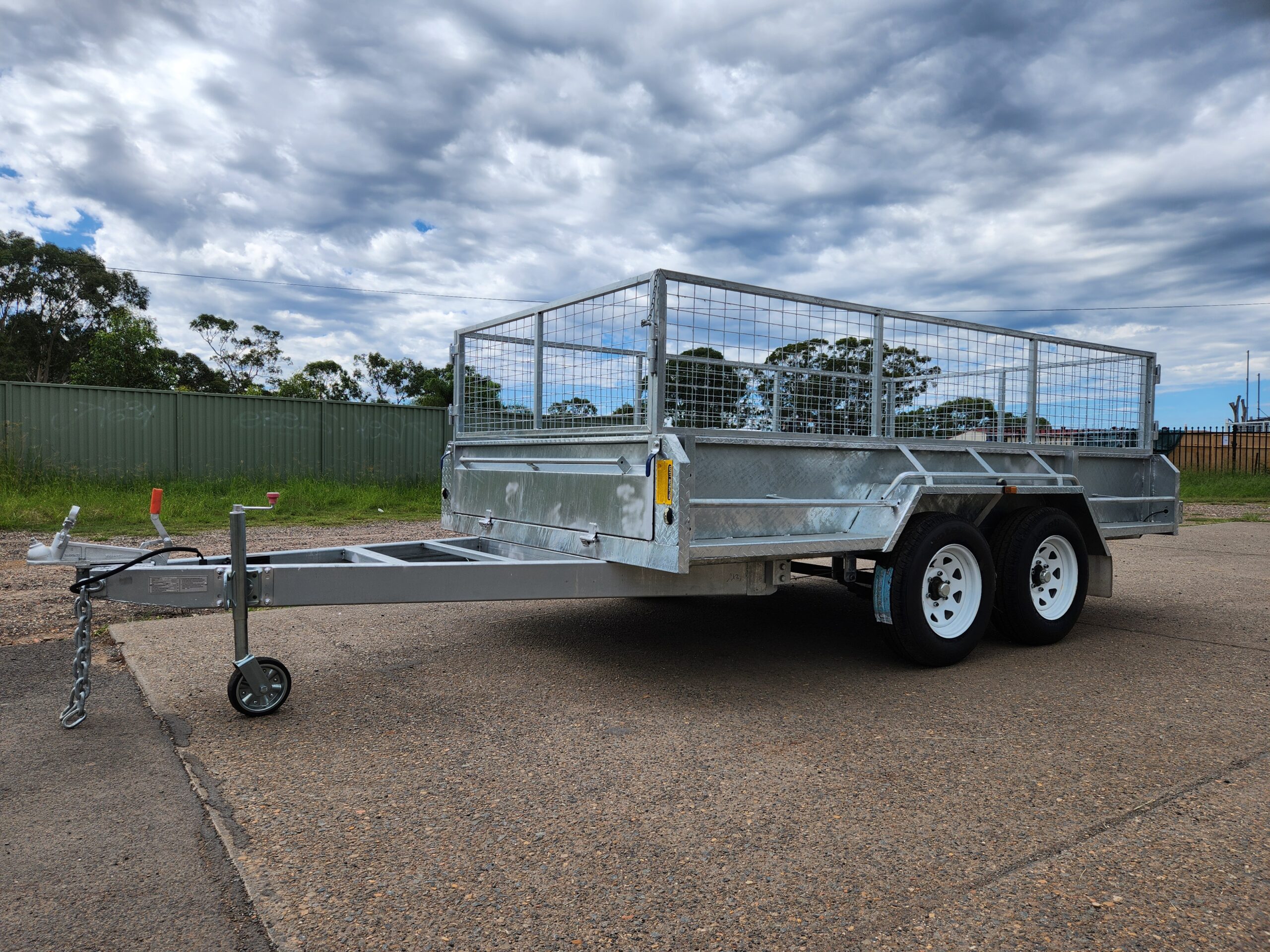

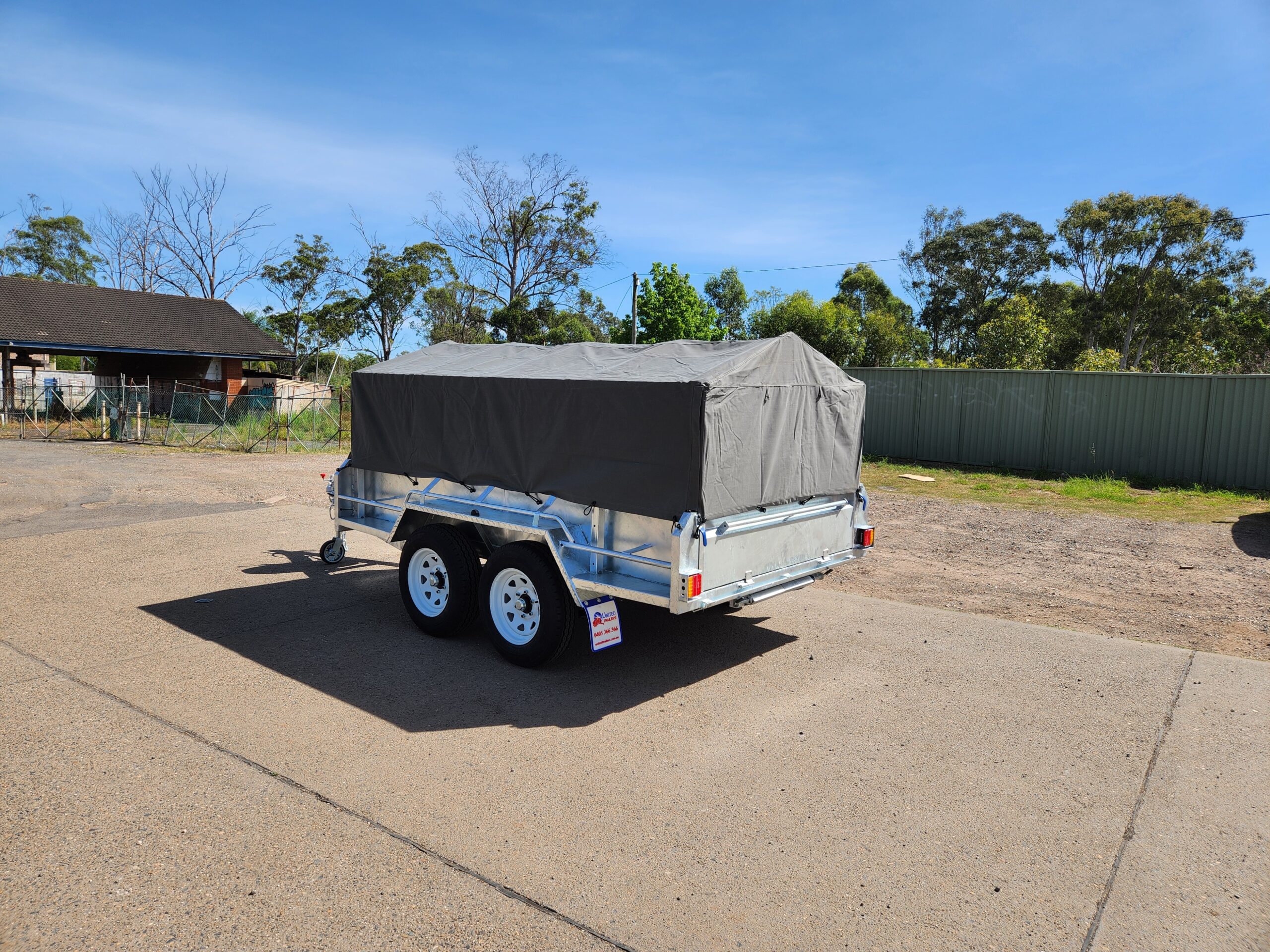

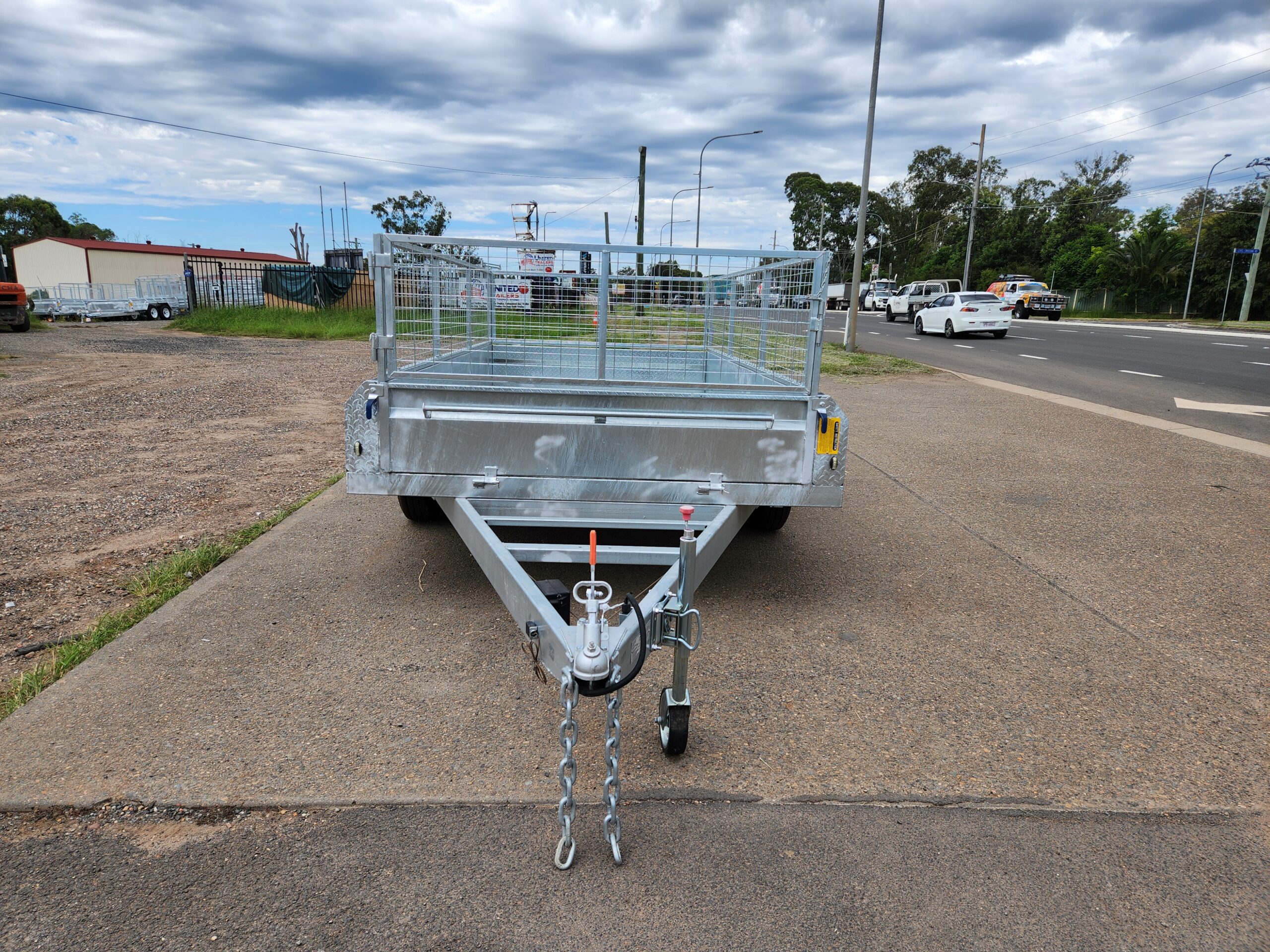

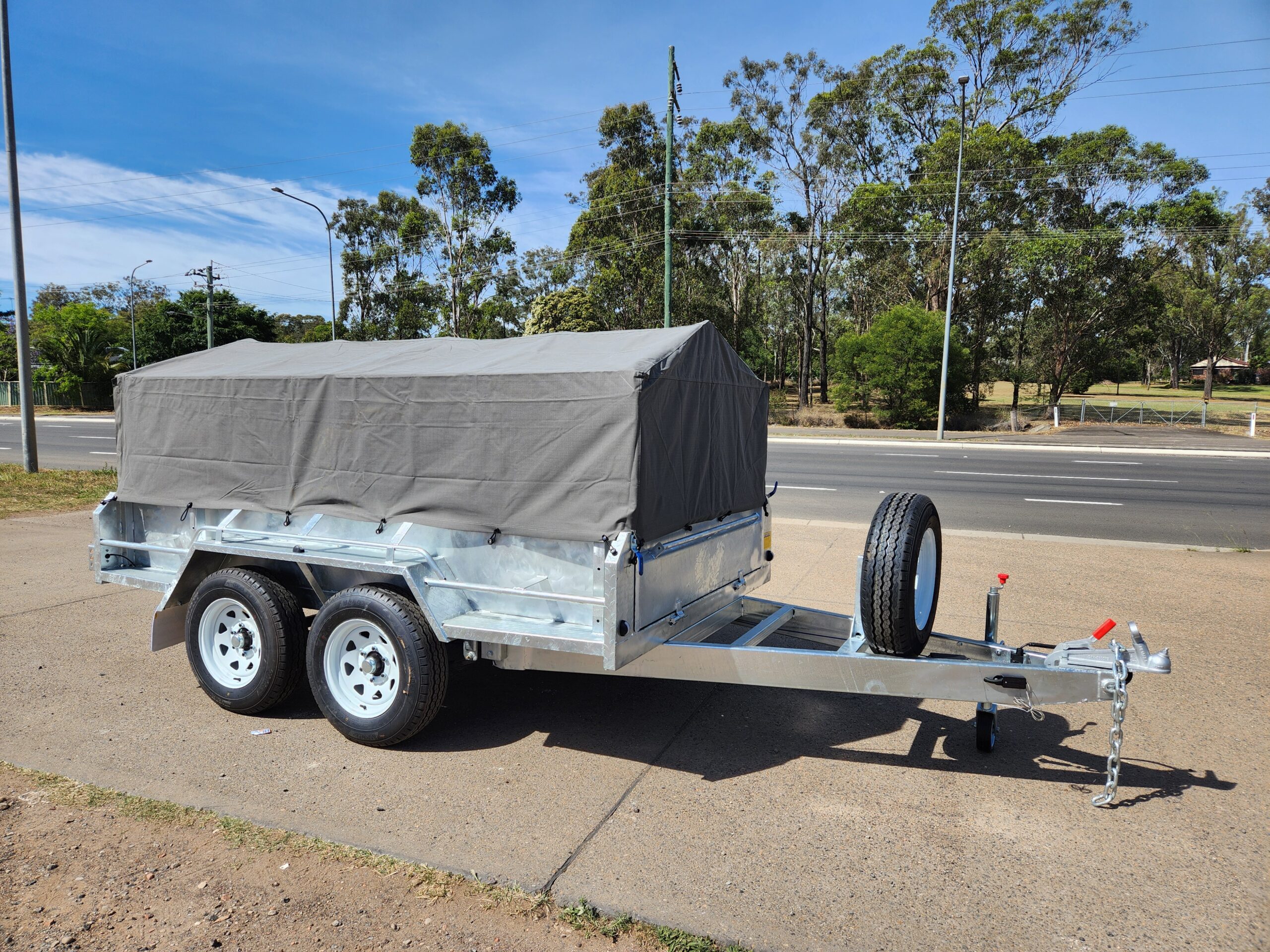

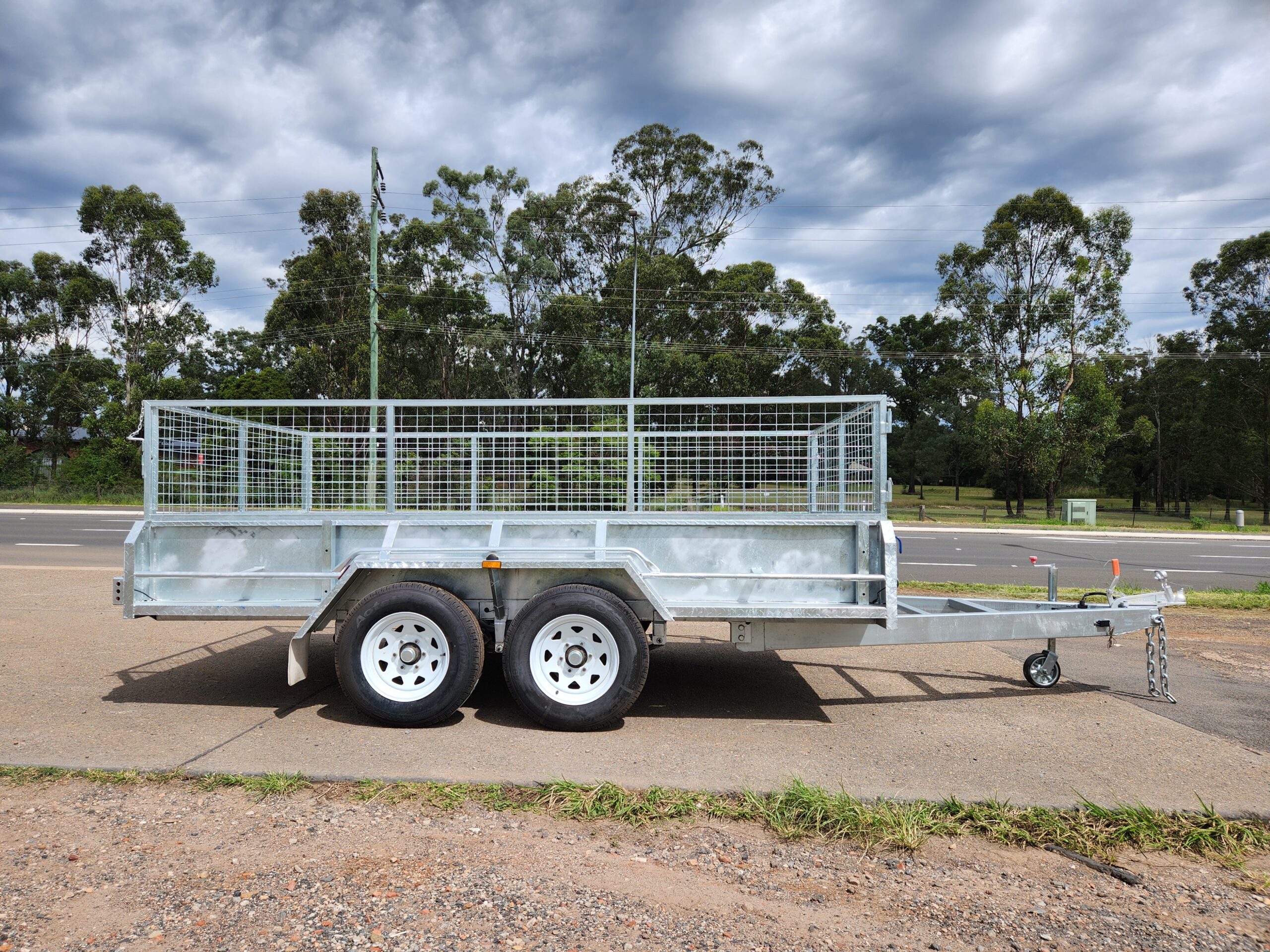

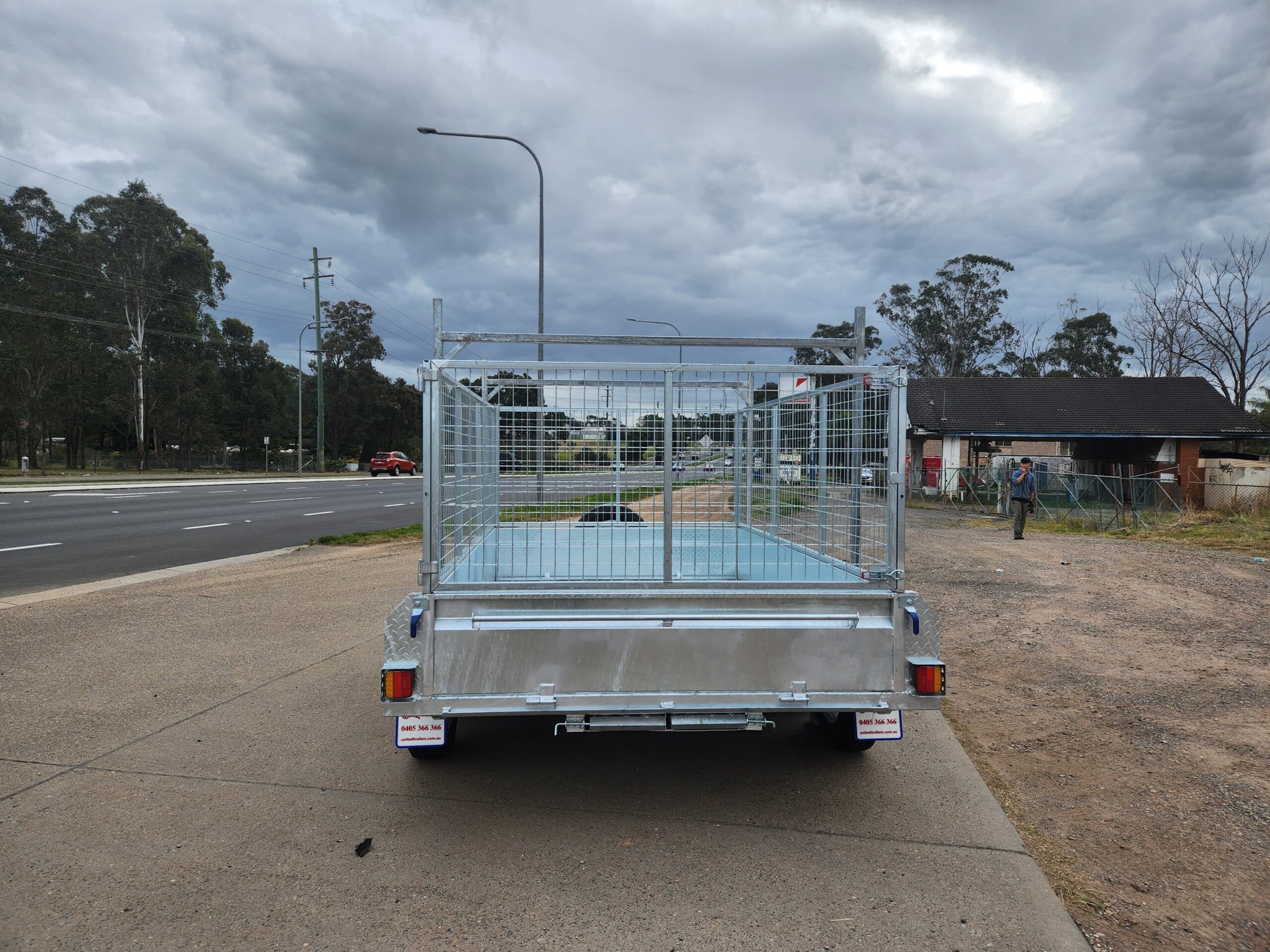

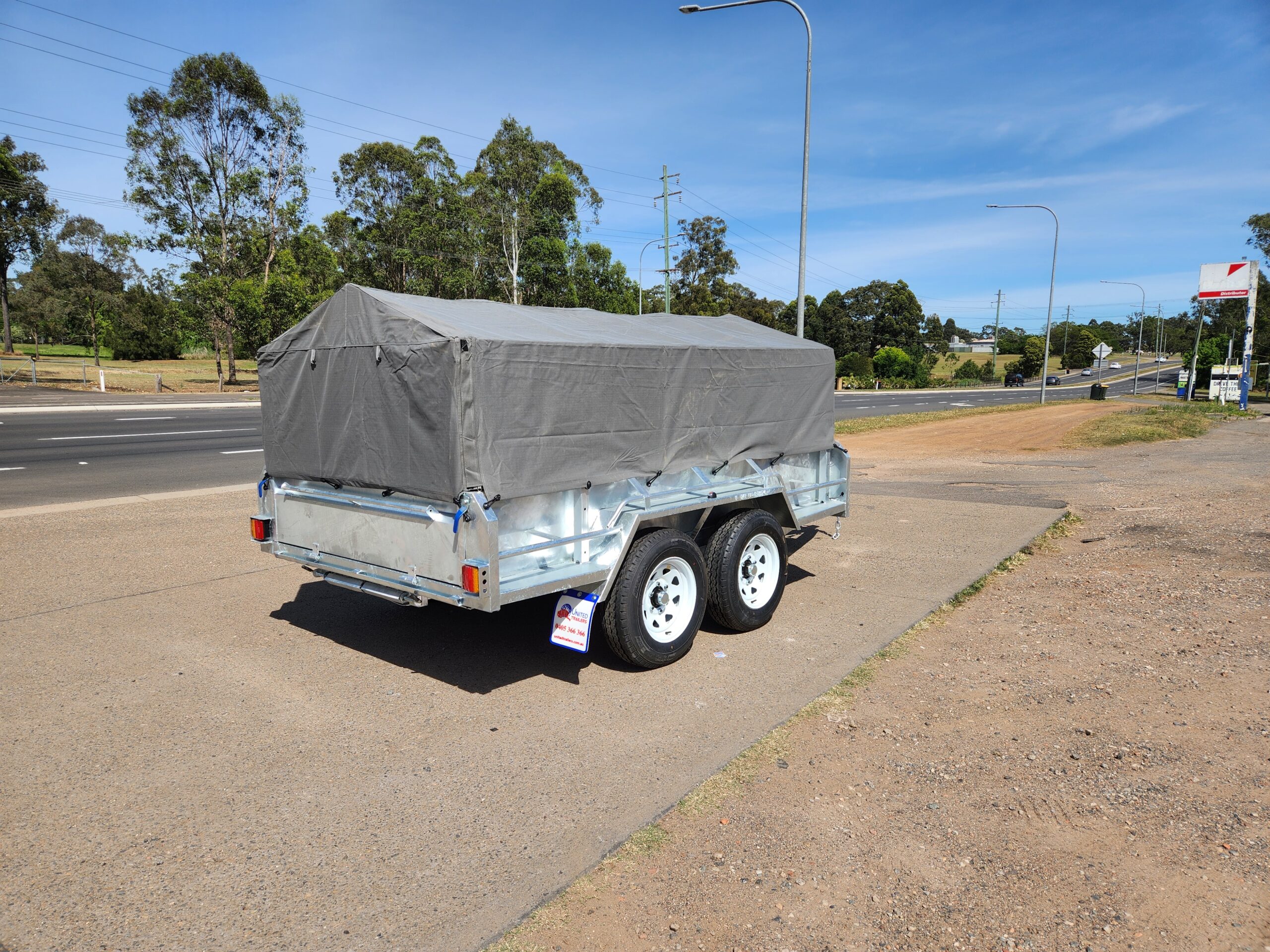

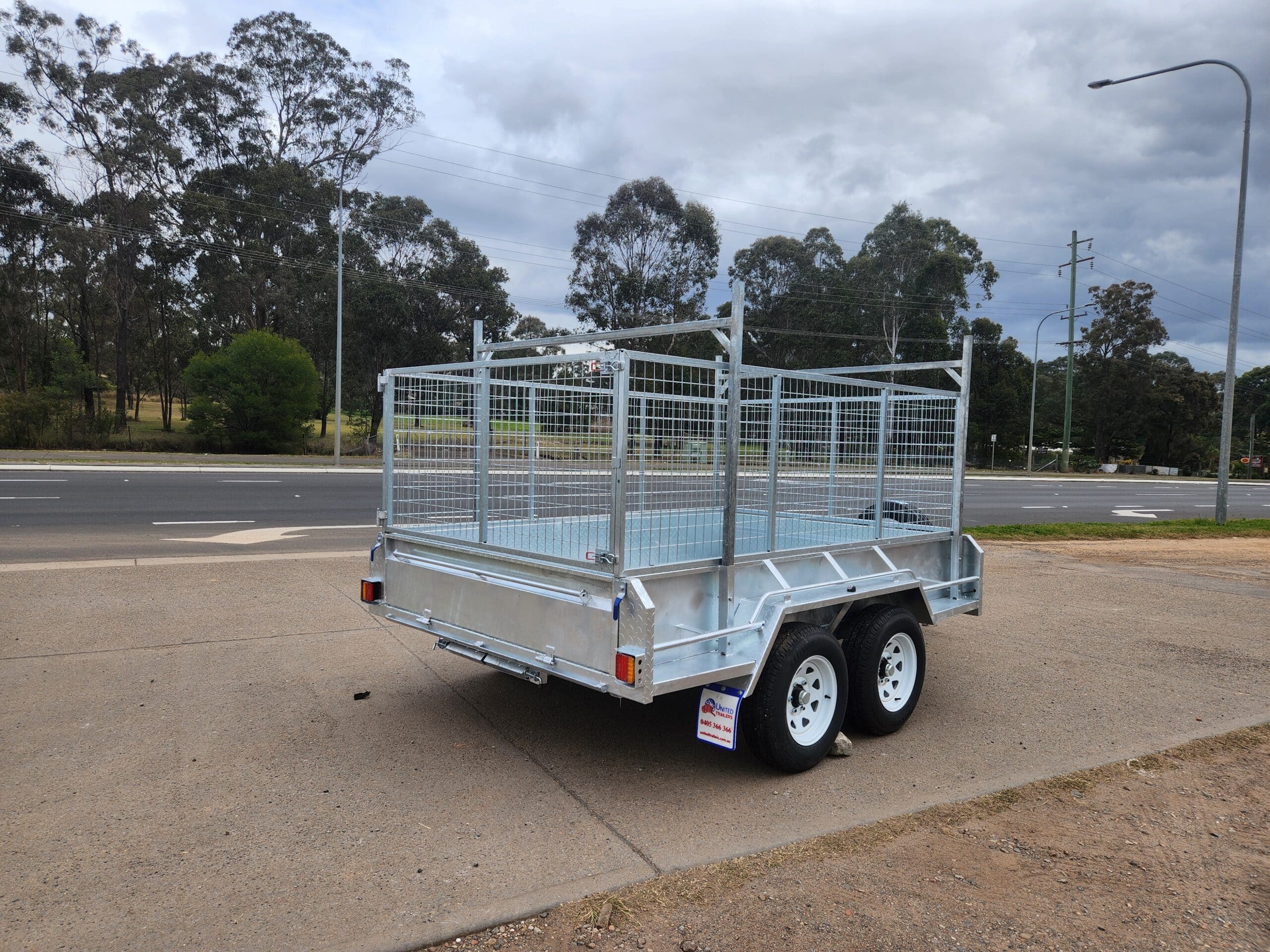

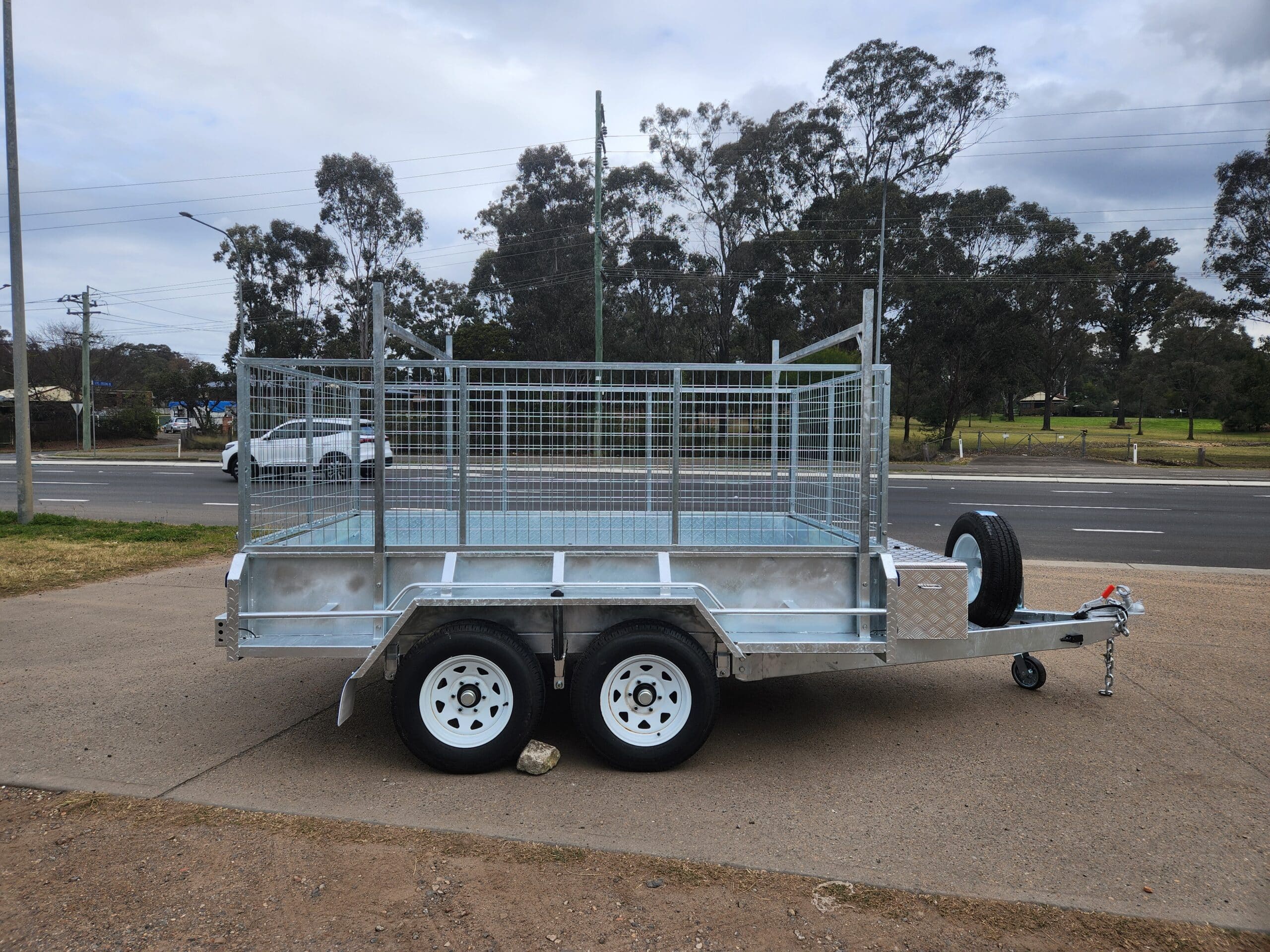

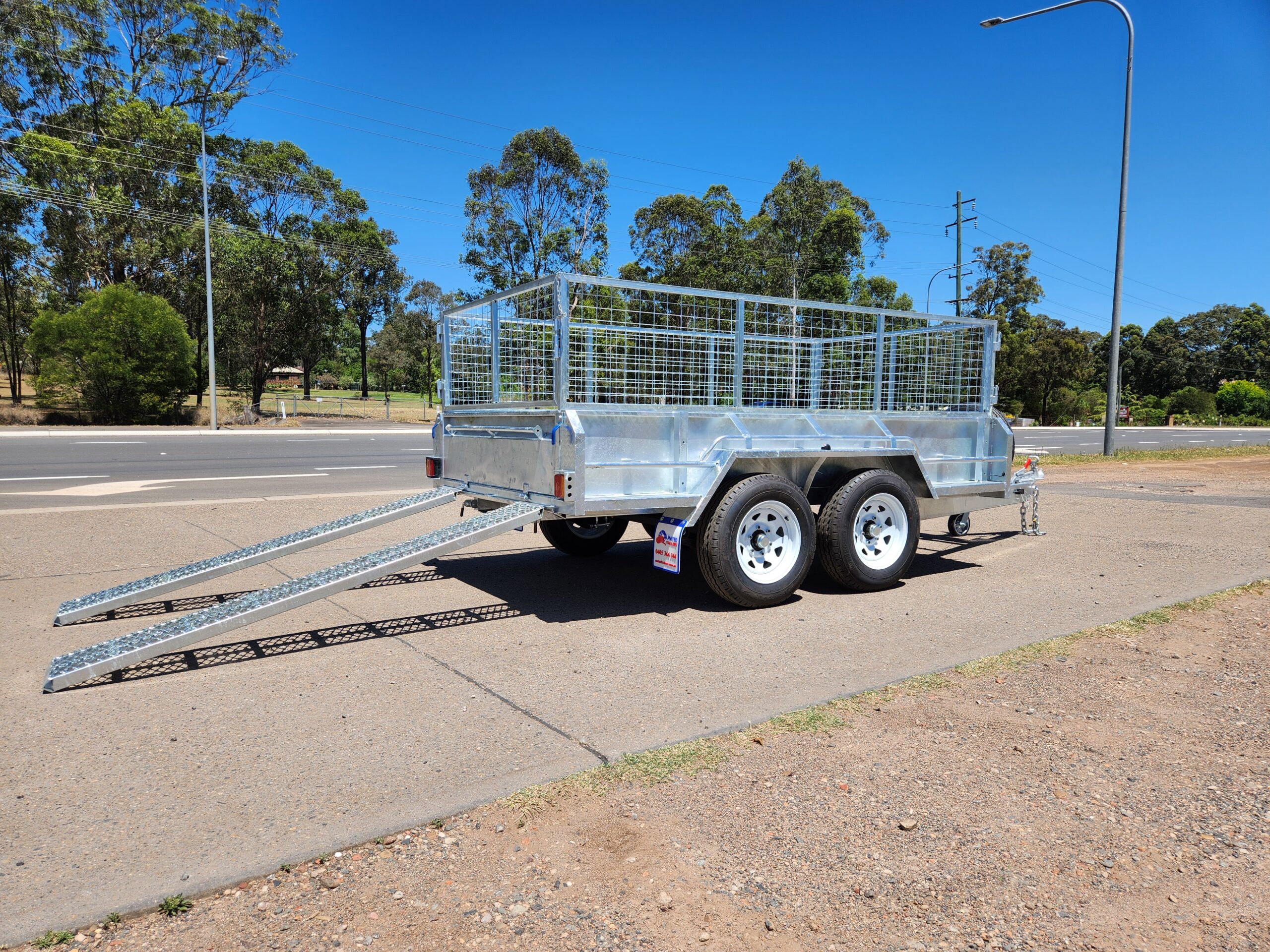

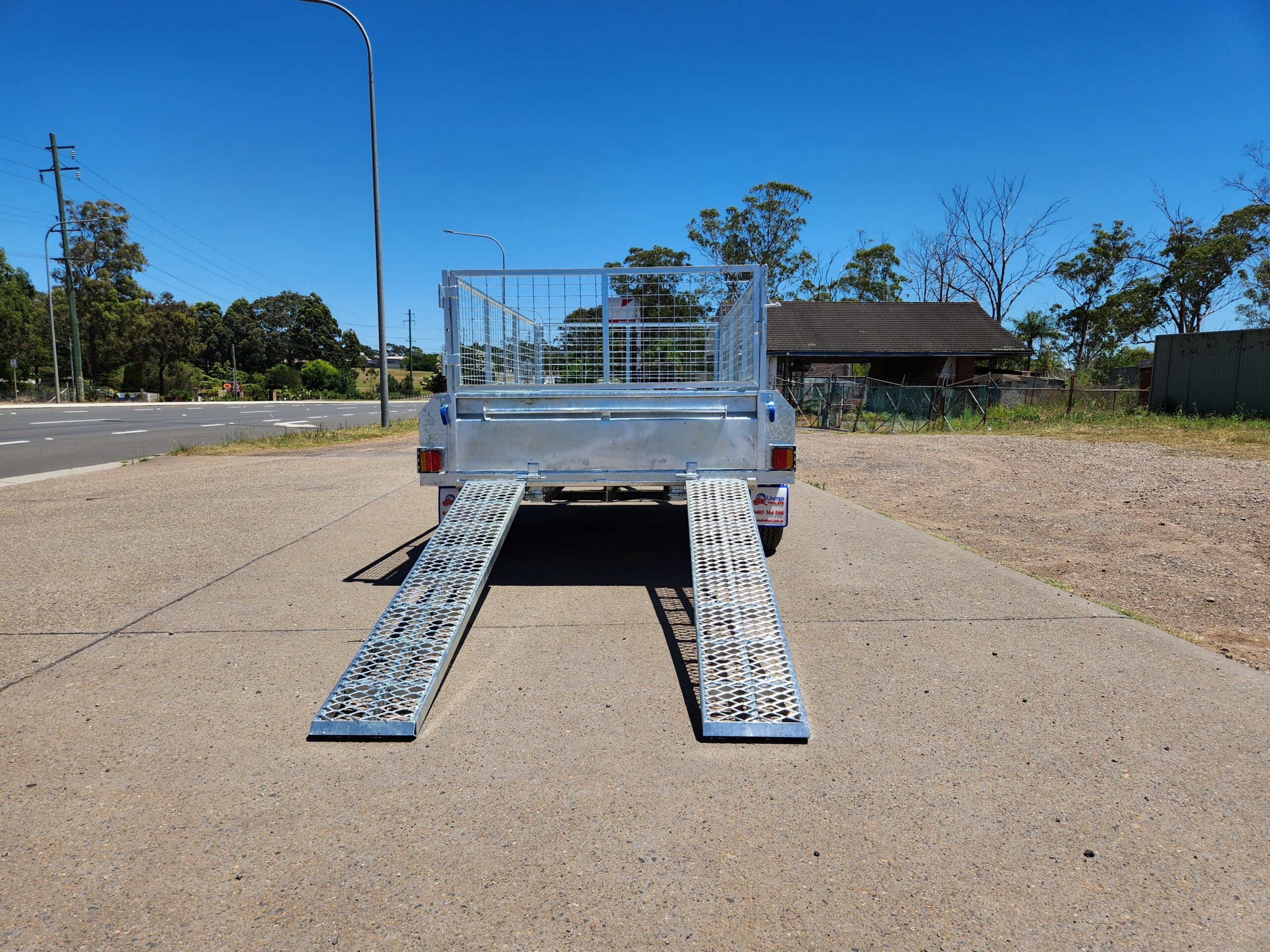

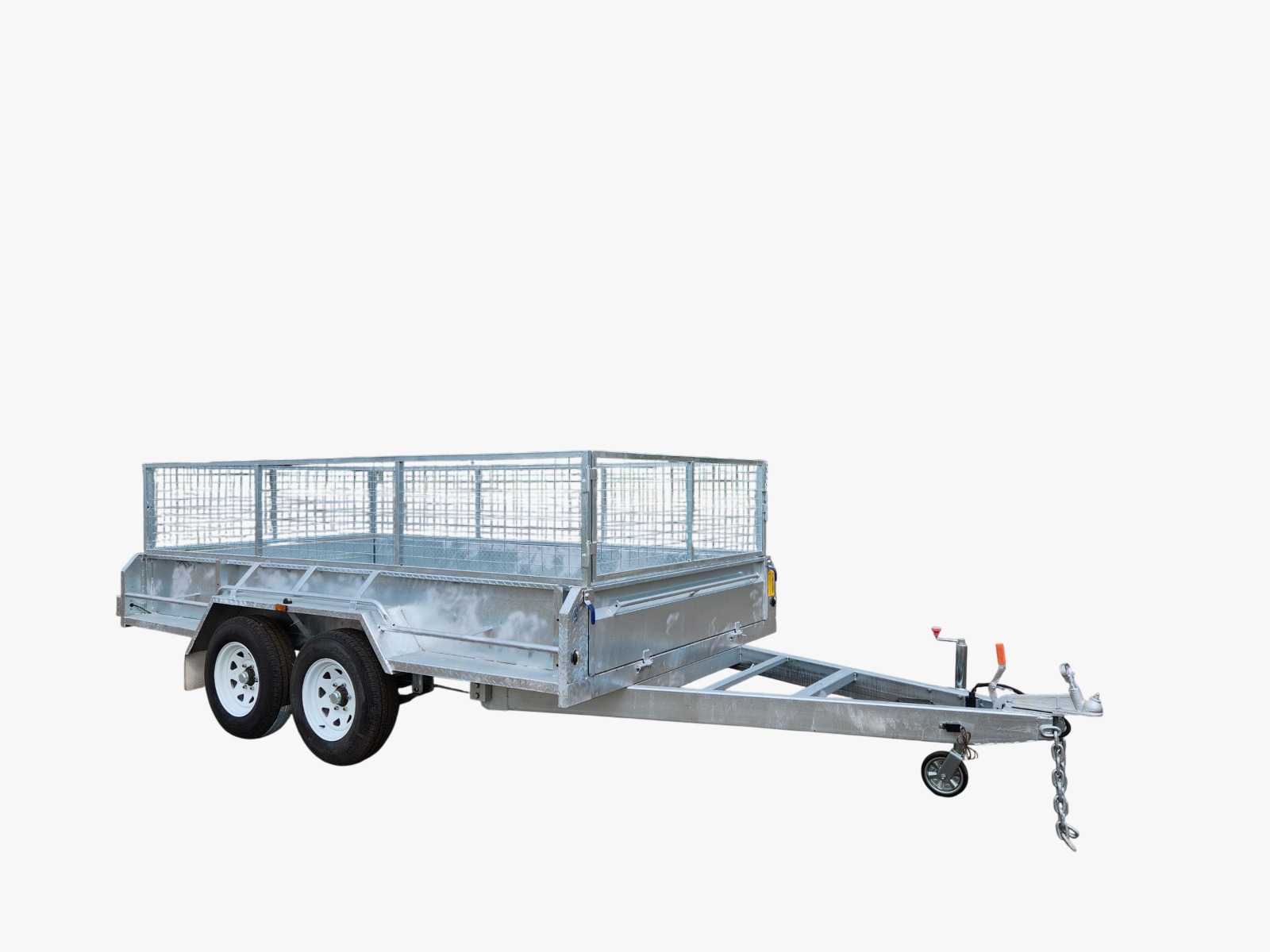

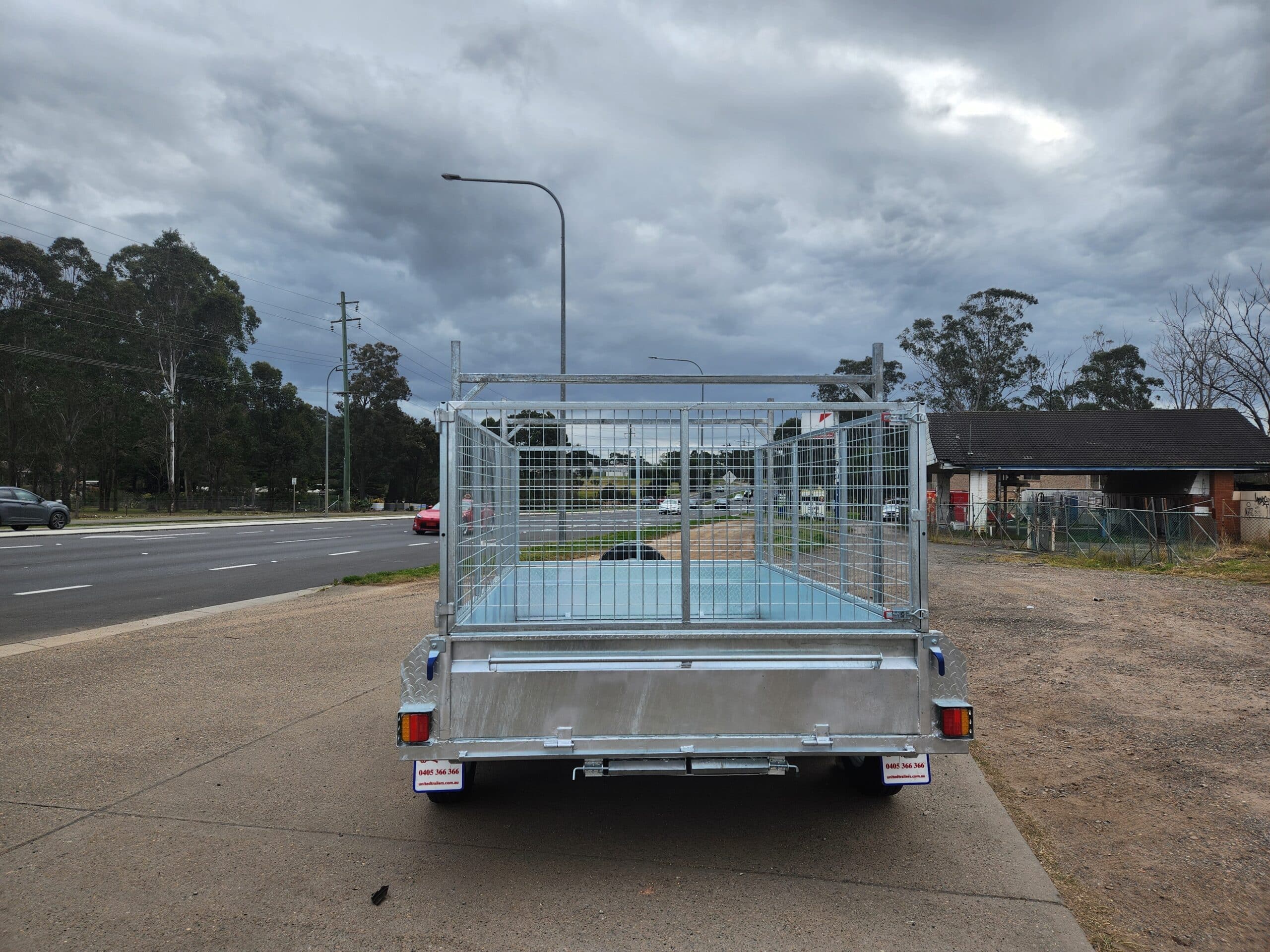

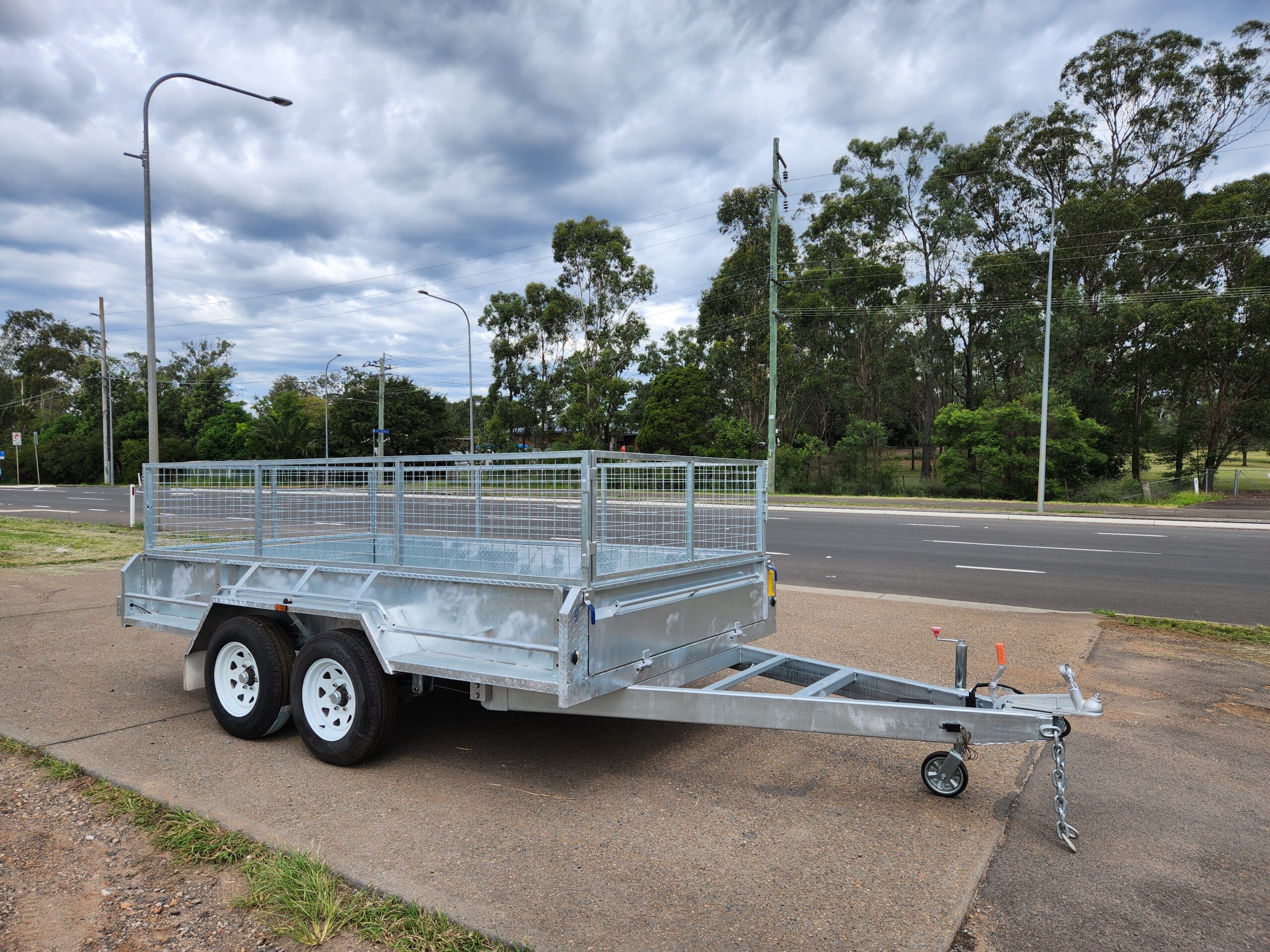

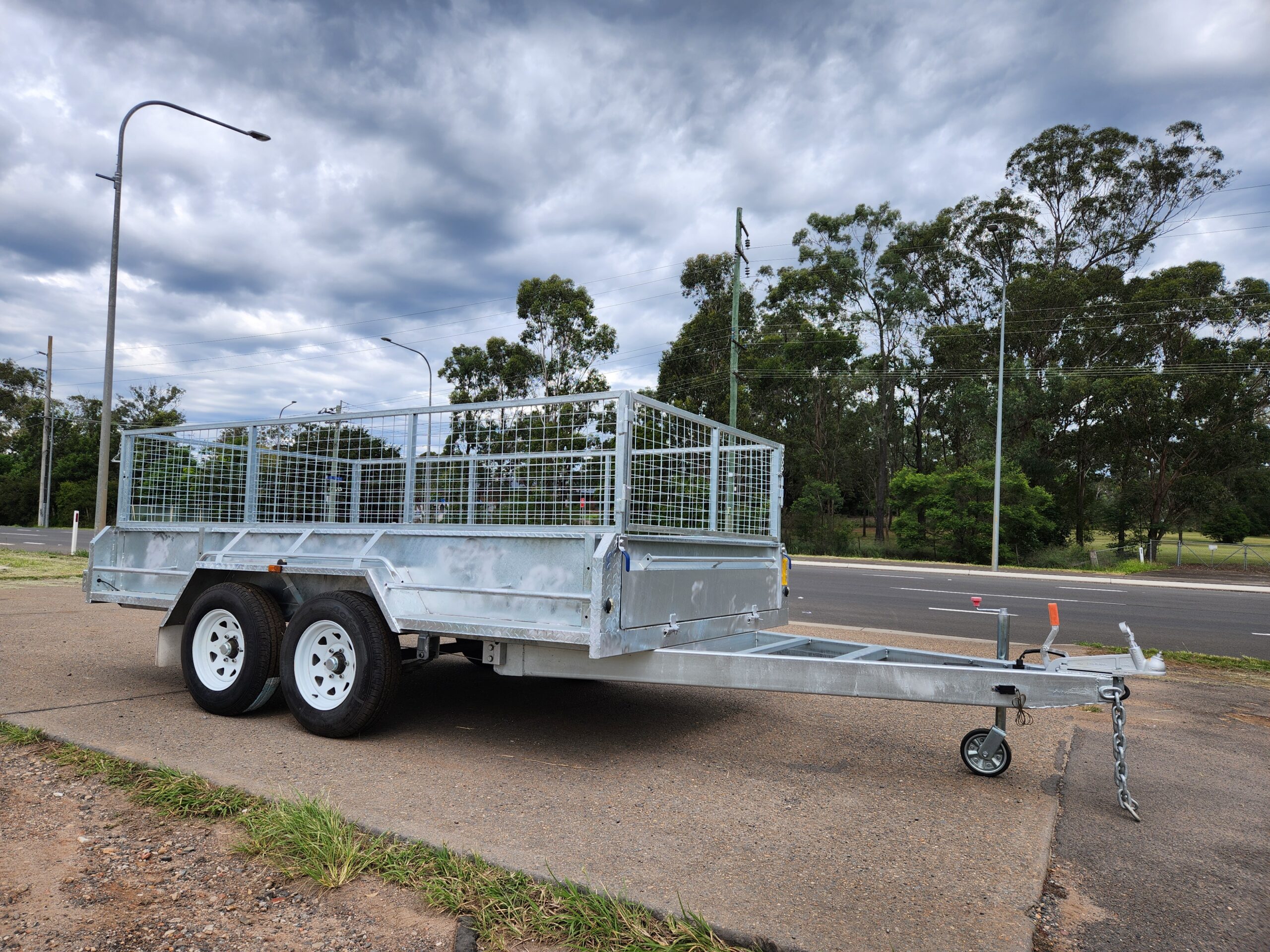

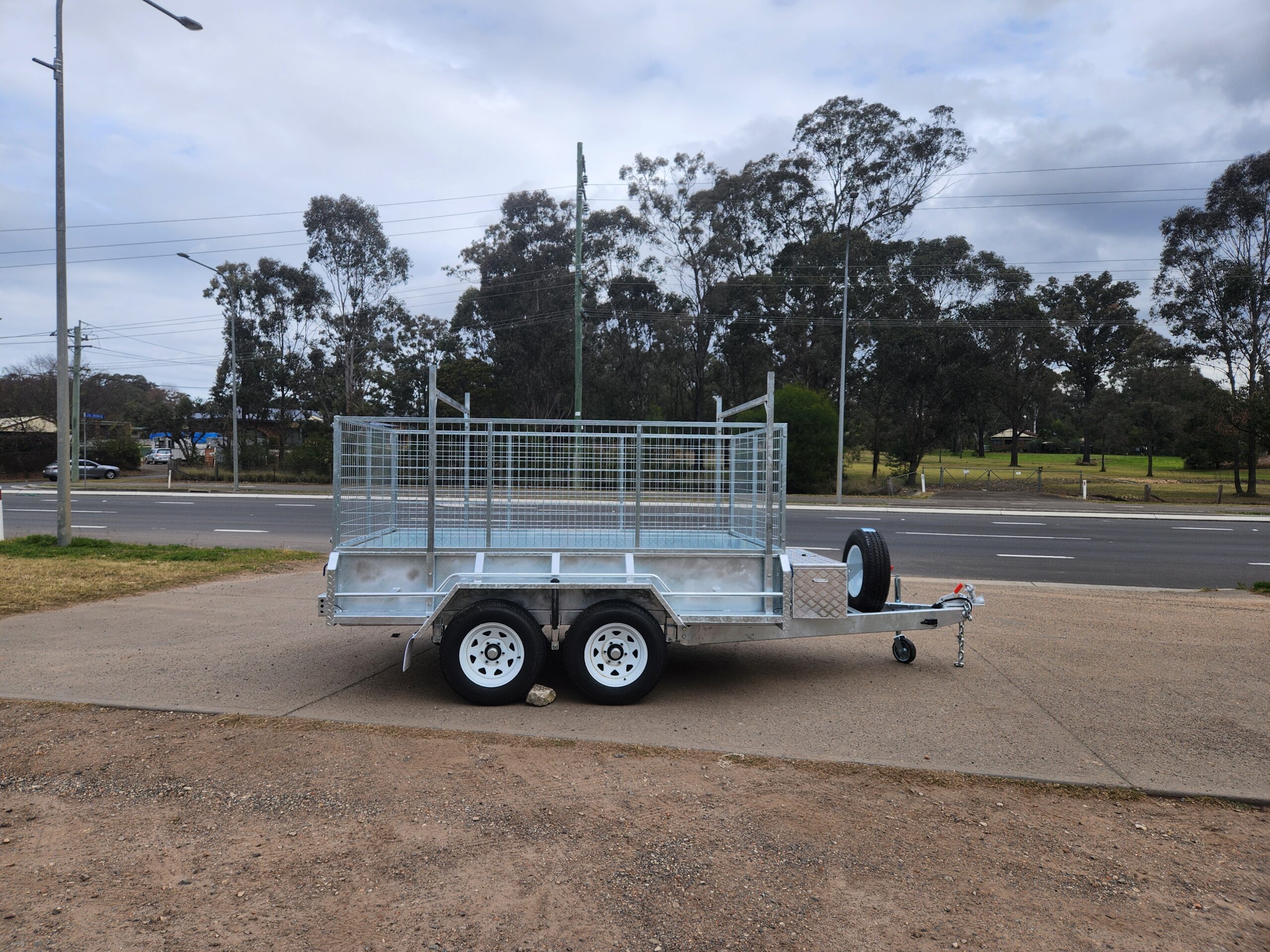

12×6 Galvanised Tandem Axle Heavy Duty Box Trailer 3500 KG ATM (Model- TGHD126)

Model– TGHD126

ATM – 3500KG

TARE weight– 900KG

Material– Hot Dipped Galvanised steel

Body & Chassis– Fully Welded

Trailer Size– 5540mm L x 2310mm W

External Trailer Tray Size– 3660mm L x 2310mm W

Internal Trailer Tray Size– 3585mm L x 1825mm W

Side Walls– 400mm

Floor & Side wall– 2.5mm 3 pieces of fully welded checker plate floor and folded side

Step-up Platforms– on Both Sides

Axle– Dual axle 50mm Square Solid Axle

Brake– Electric Drum Brake on Four Wheels

Jockey Wheel– 8” Swing up Jockey Wheel

Wheel & Tyre– Brand New Sunraysia Rim with LT Tyre 195R/15

Front & Rear Gates– Removable & Drop-Down Gates

Drawbar– 1786mm, 150mm x 50mm x 4mm RHS (Straight measurement including coupling 1880mm)

Chassis– 70mm x 50mm SHS Reinforced Under Floor (From Left to Right& Front to Back)

Tie rail bar– 32mm all around

Leaf spring– 60mm 8 Leaf 7mm Rocker Roller

Coupling– Quick release 50mm 3500kg Over-ride

Safety Chain– 13mm ADR Safety Chain

Ladder Rack Holder– Welded Ladder Racks Holders at front & rear

Drawbar Locking point– 2 Heavy Duty Locking Points on Drawbar

Lights– LED combination taillights

Plug– 7 pin flat plug

Mudflaps & Compliance Plate– Included
