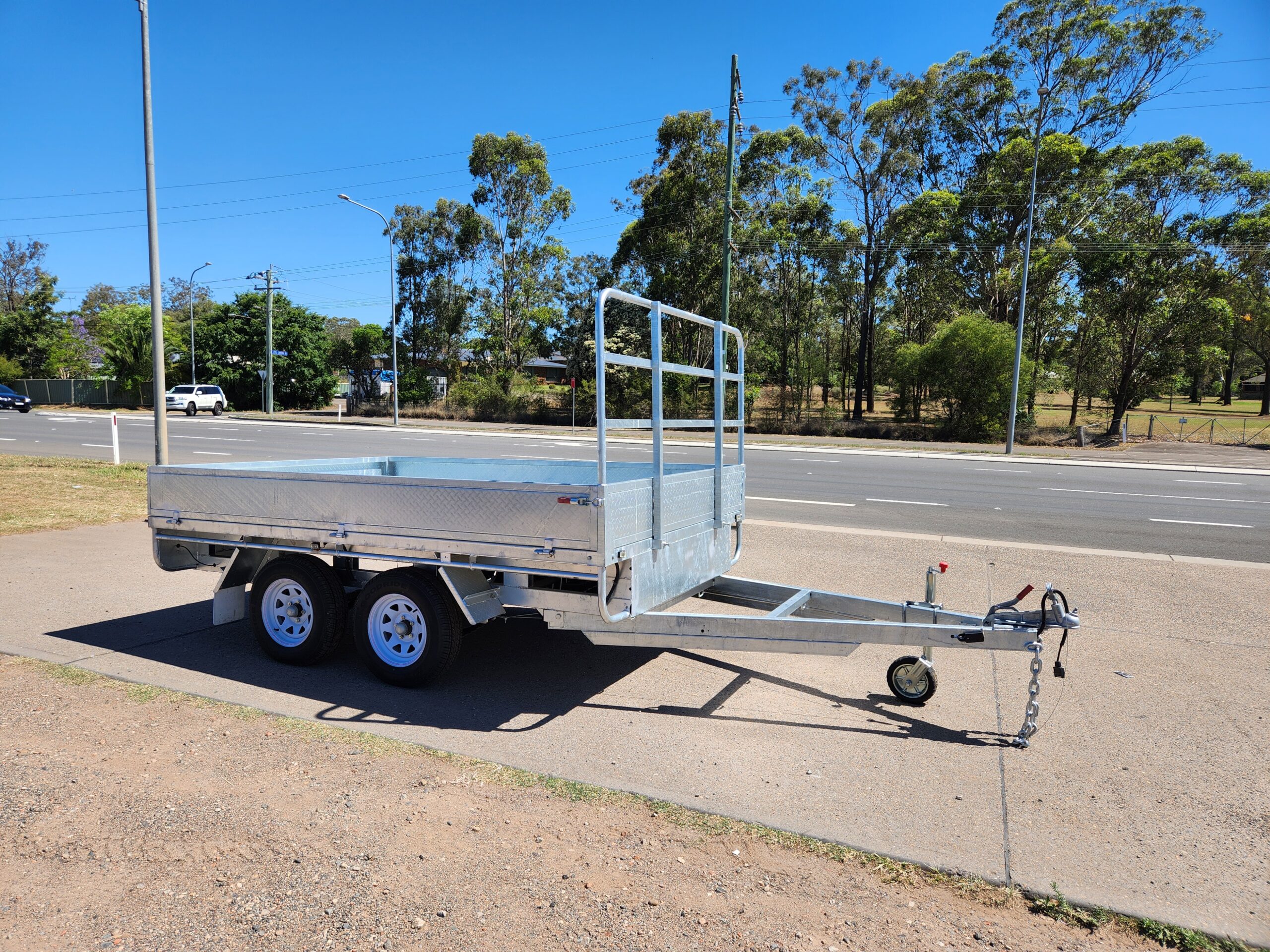

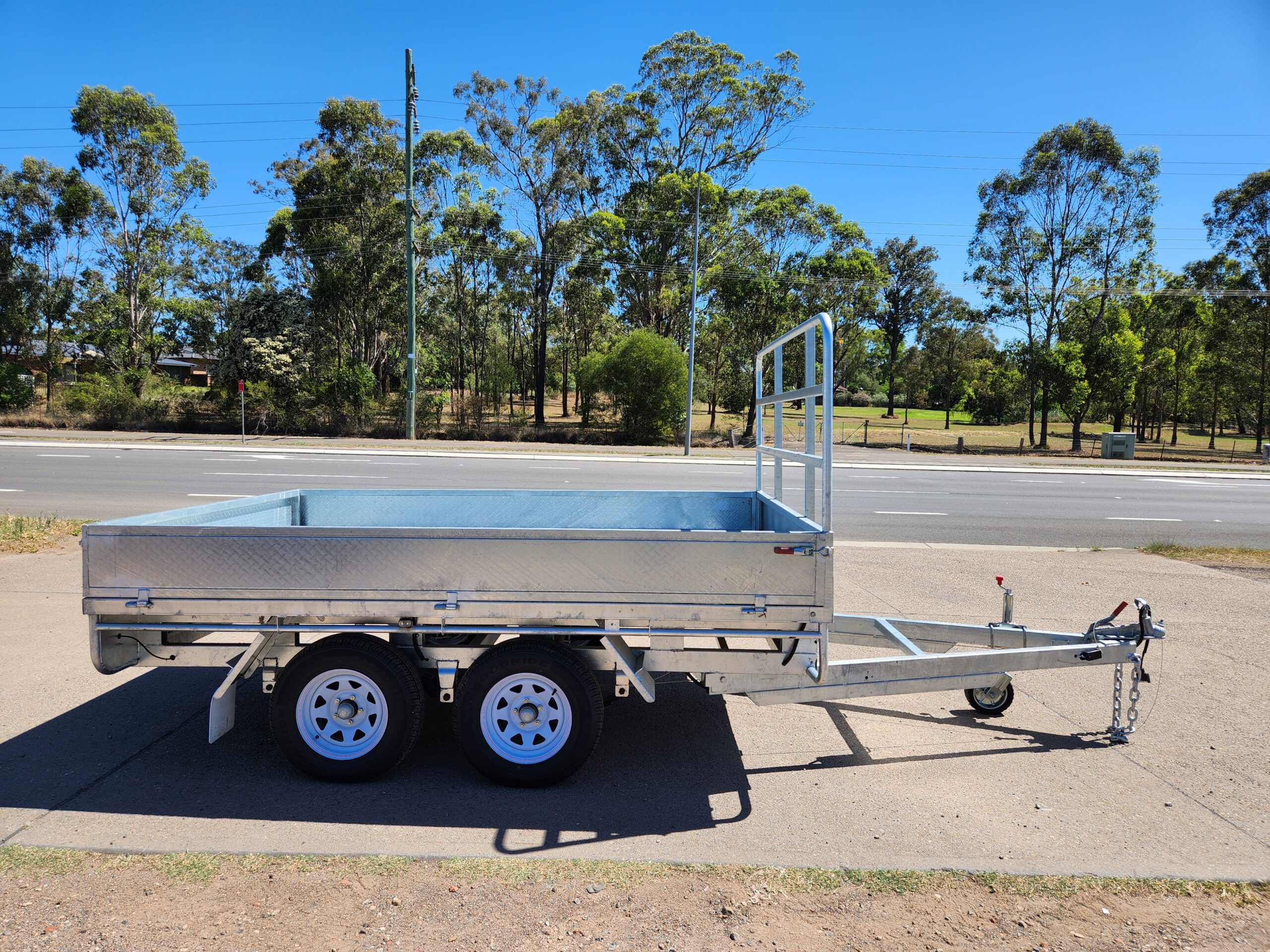

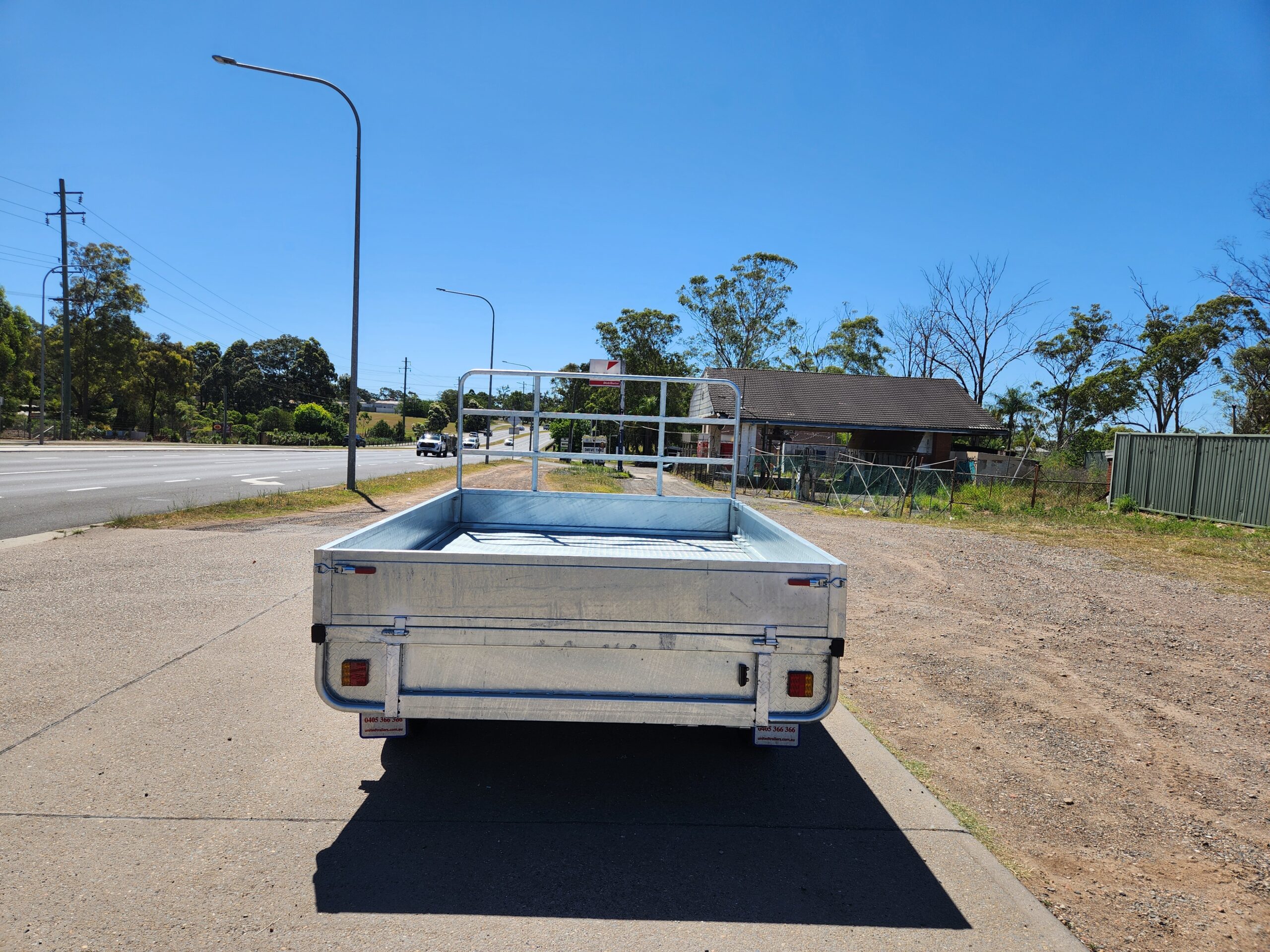

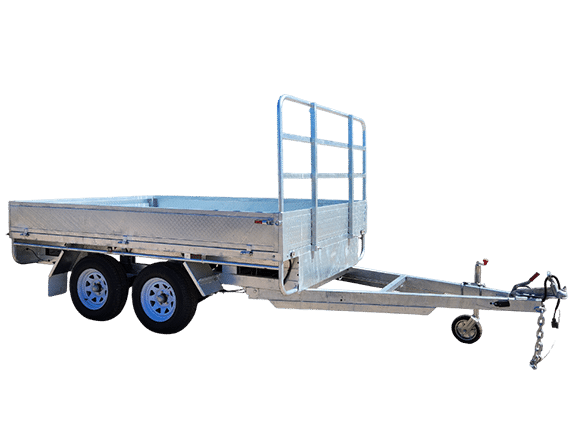

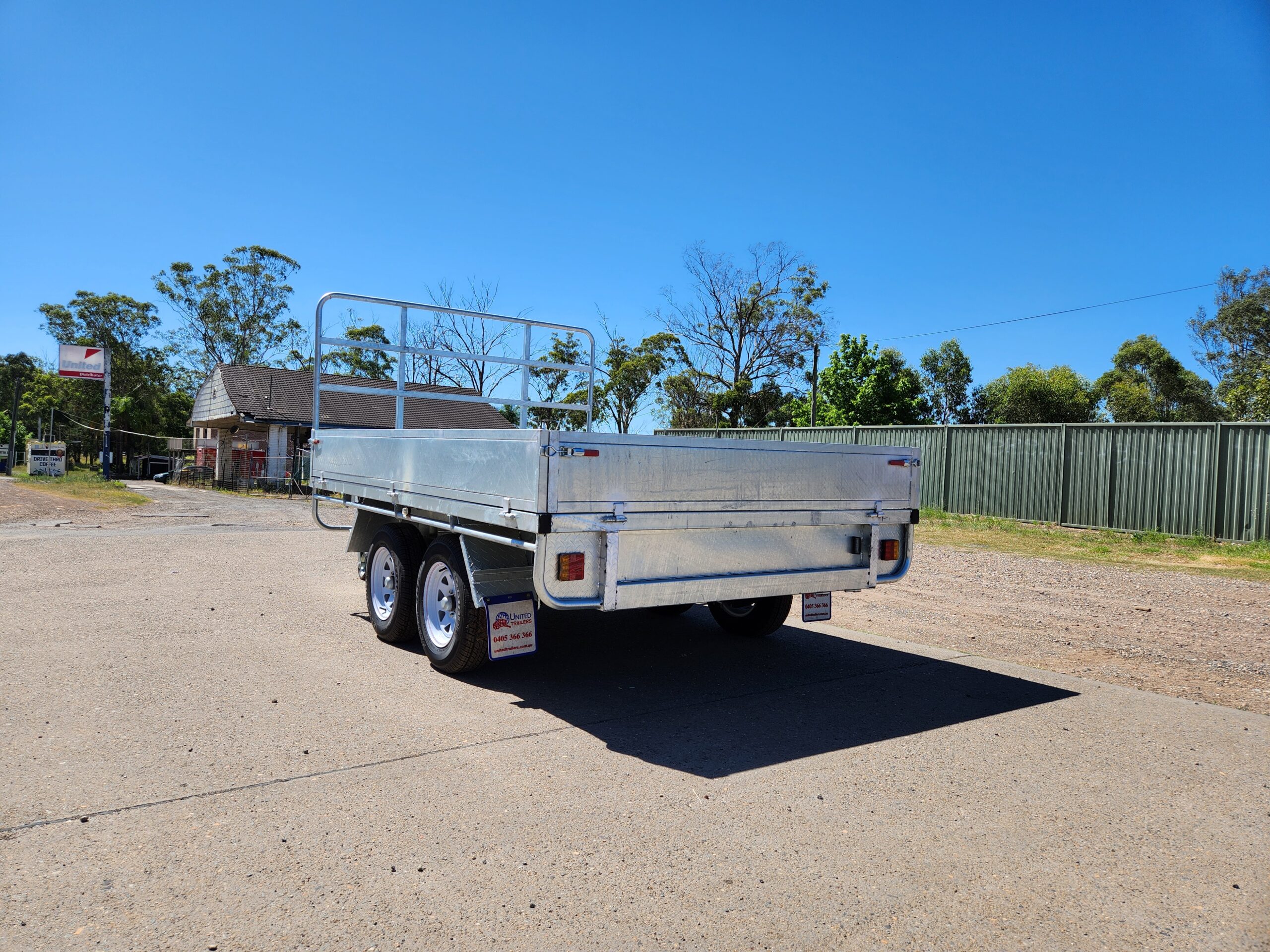

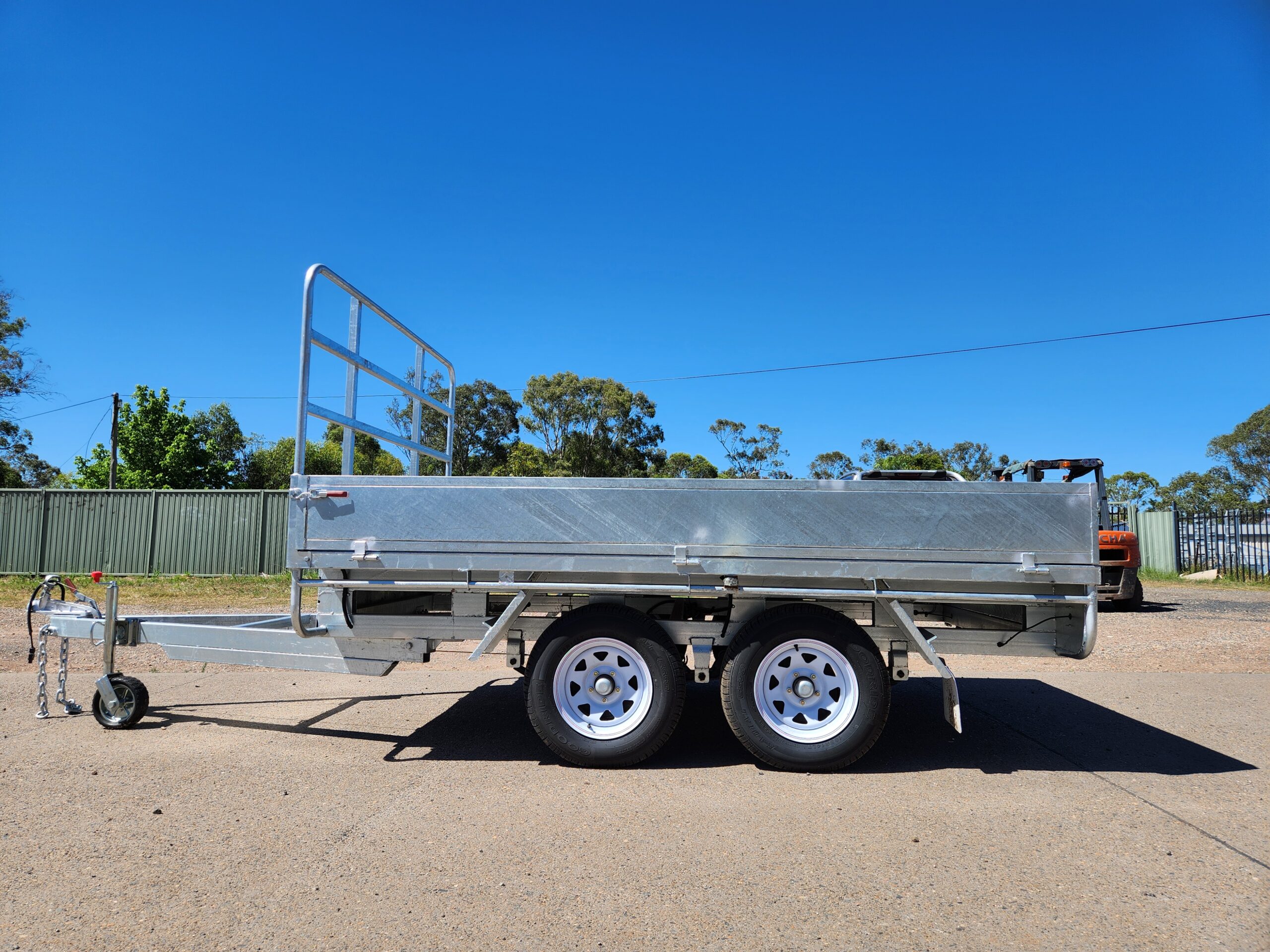

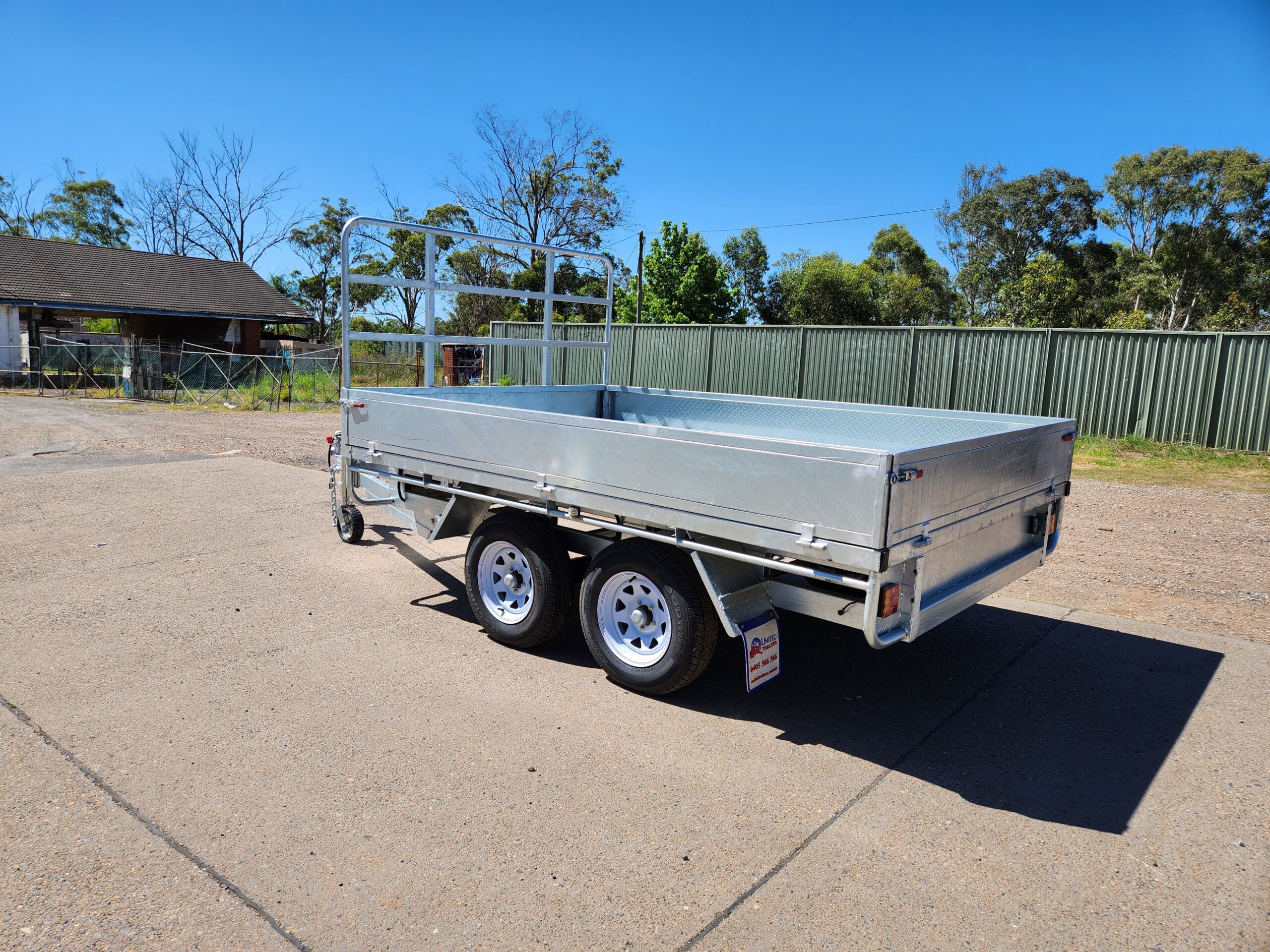

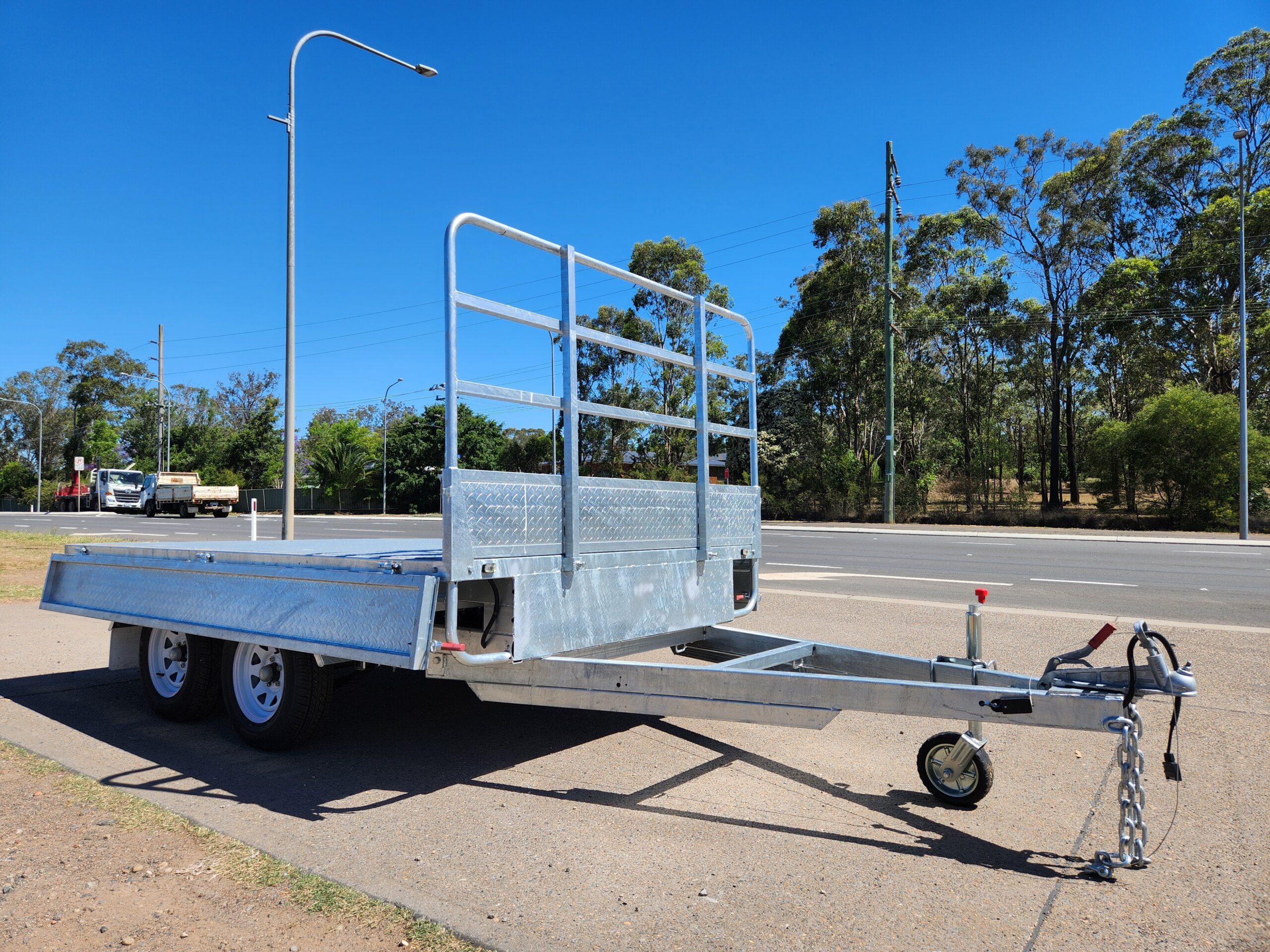

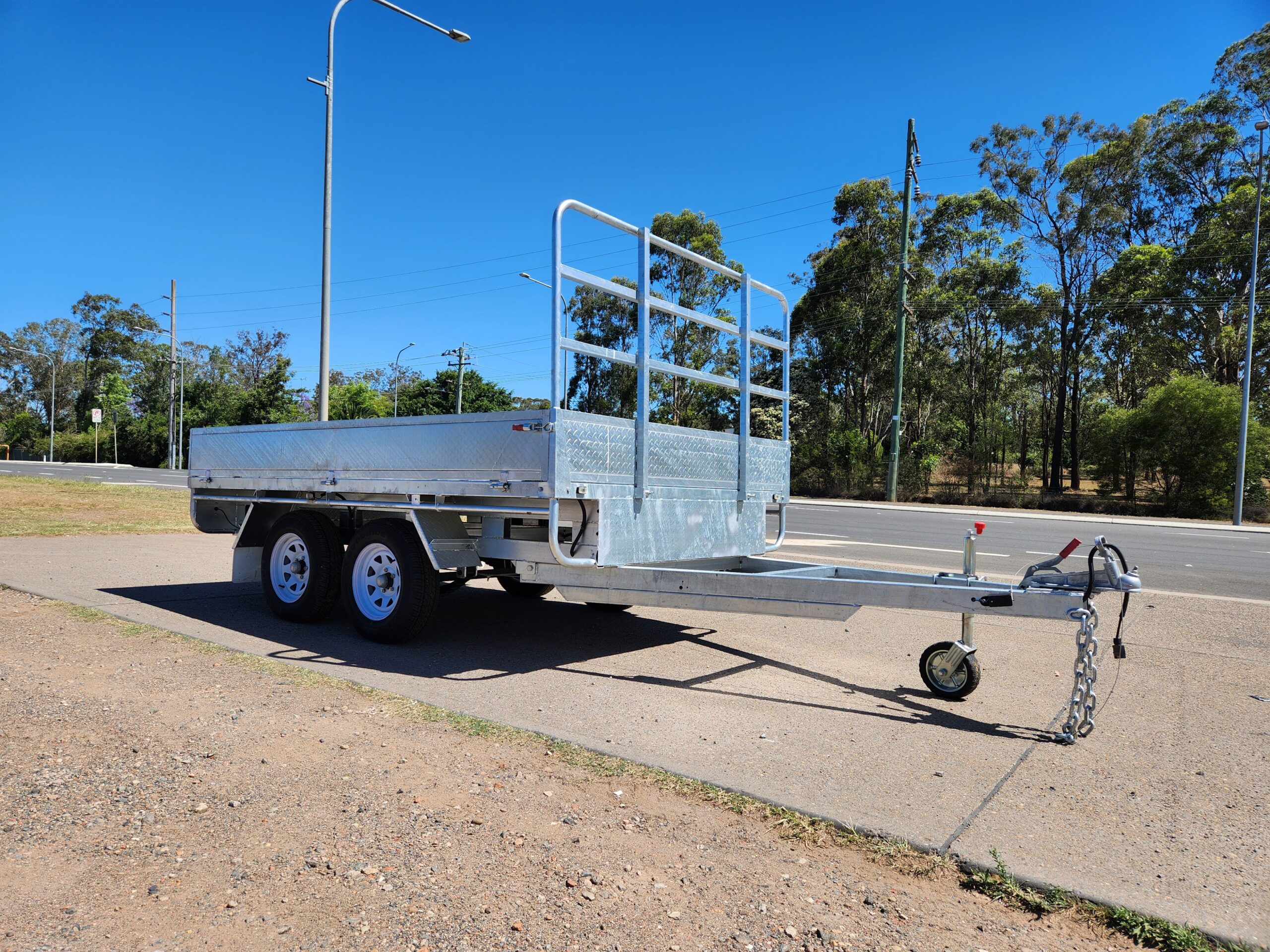

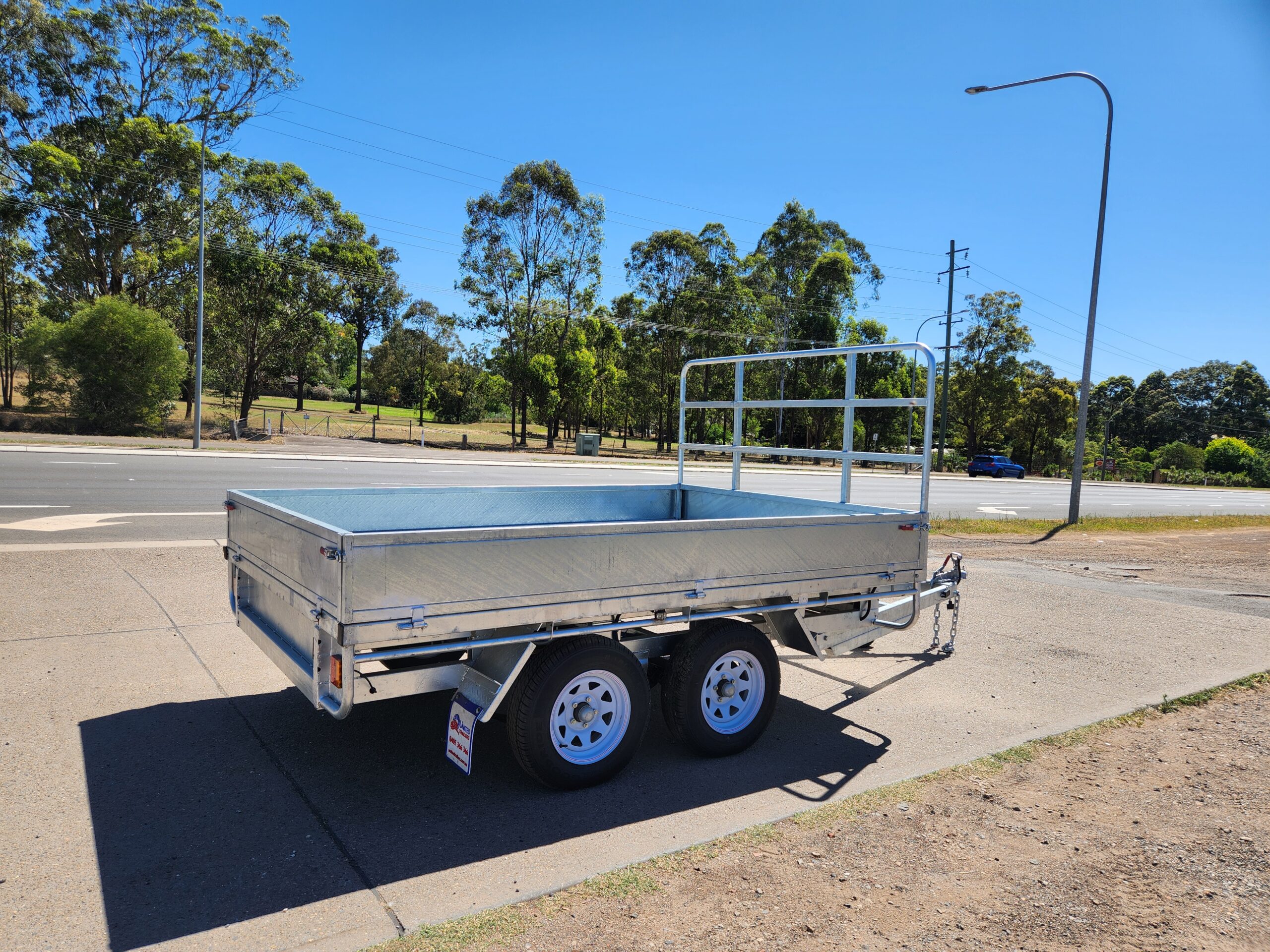

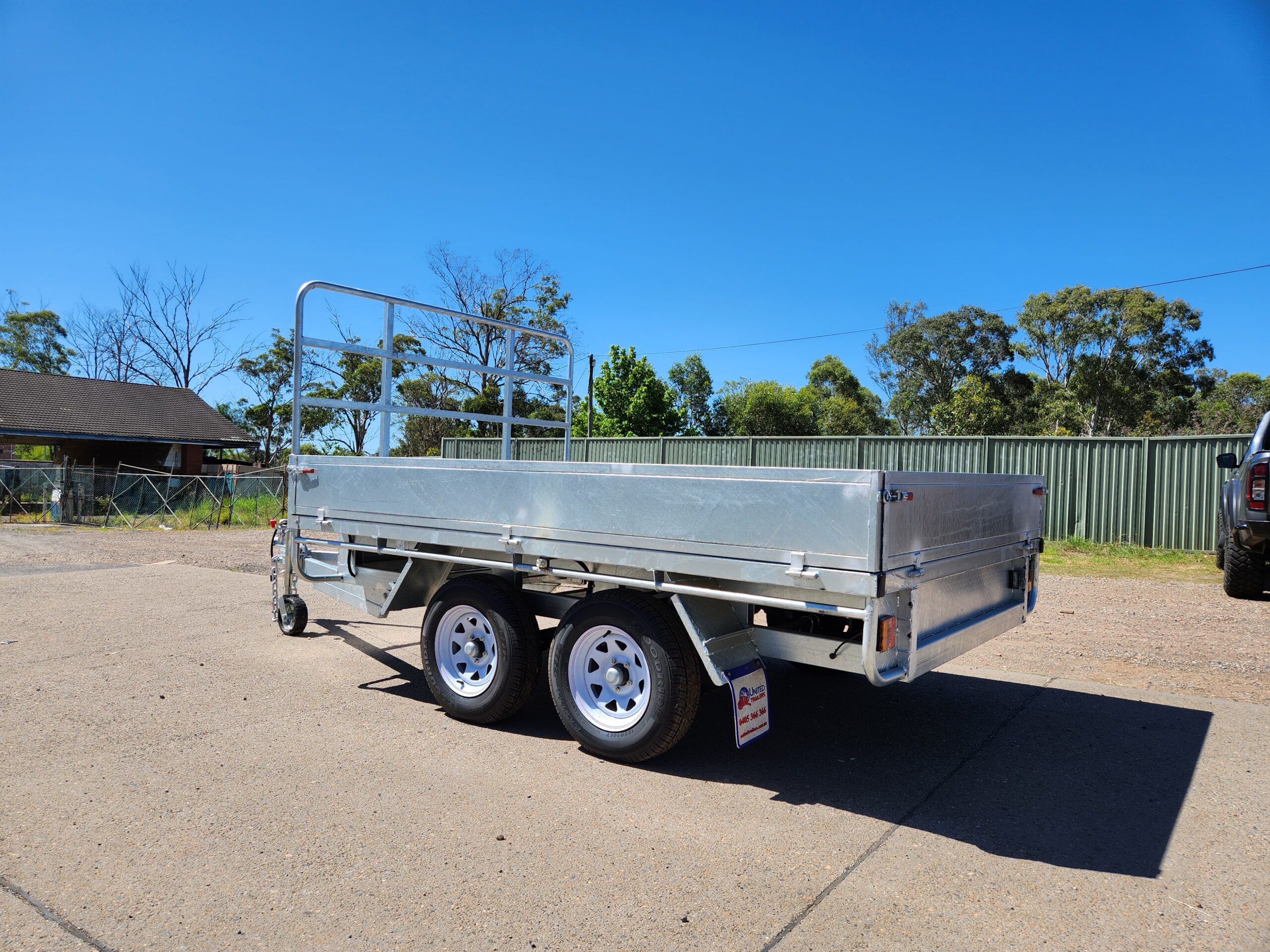

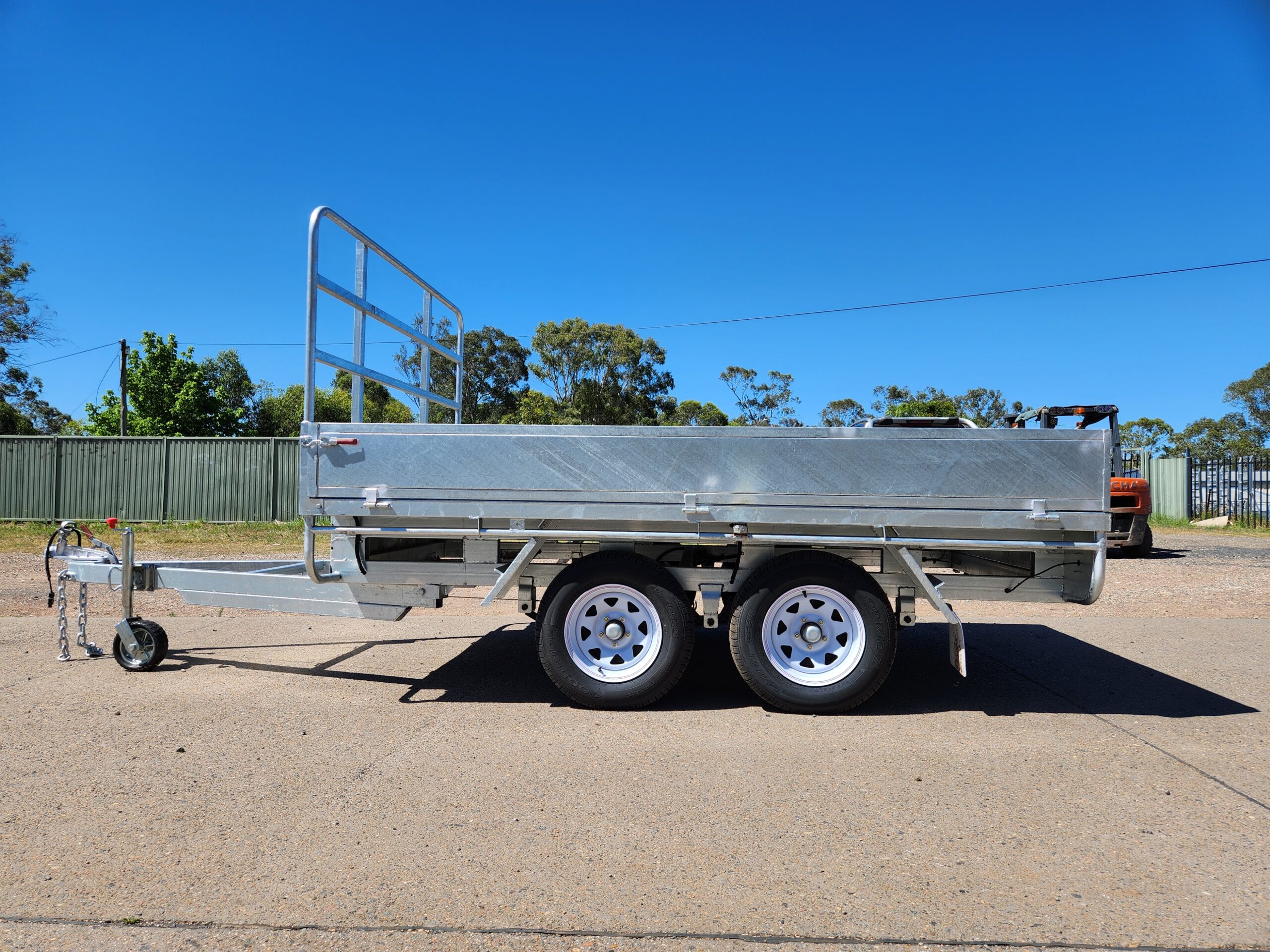

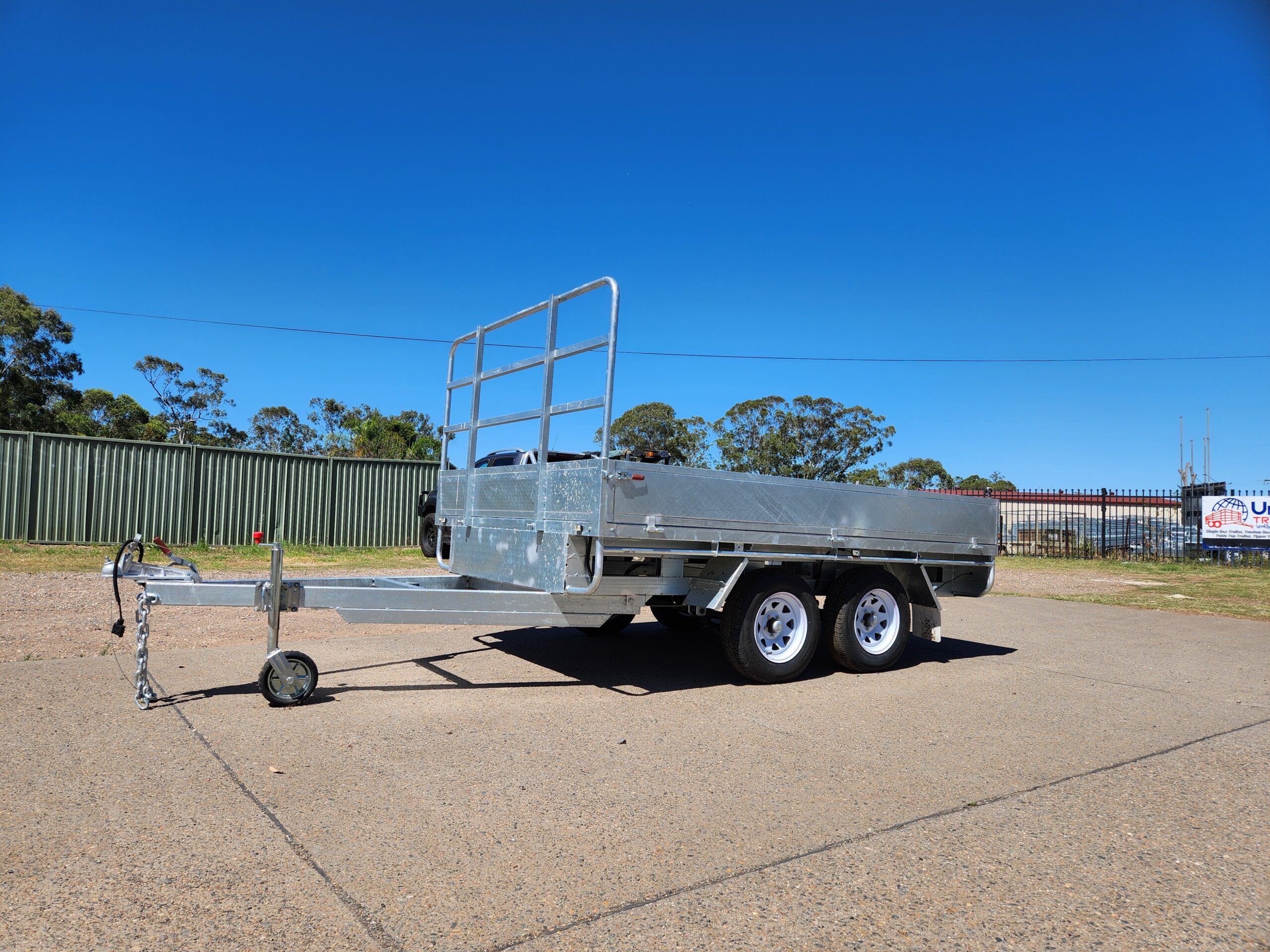

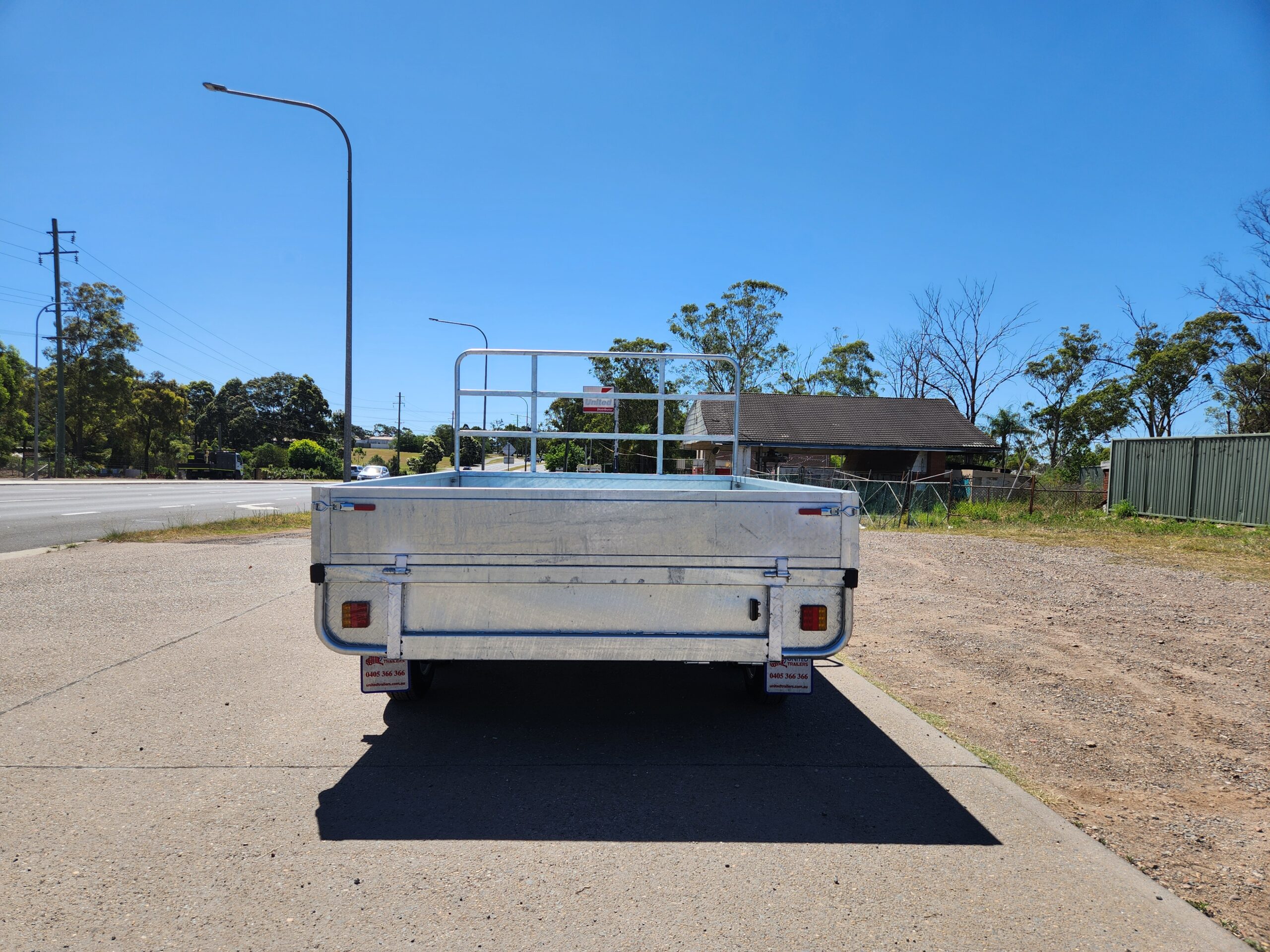

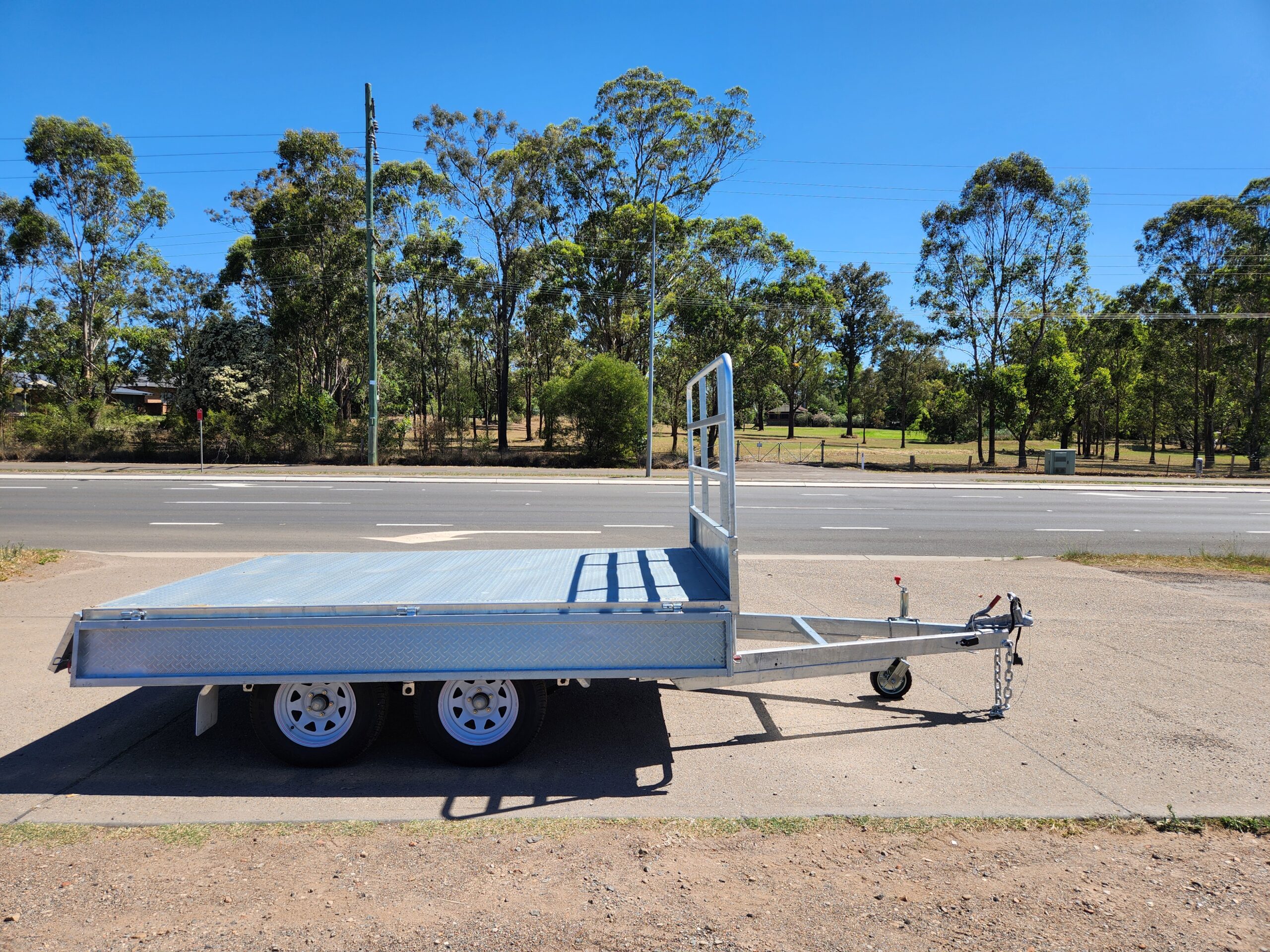

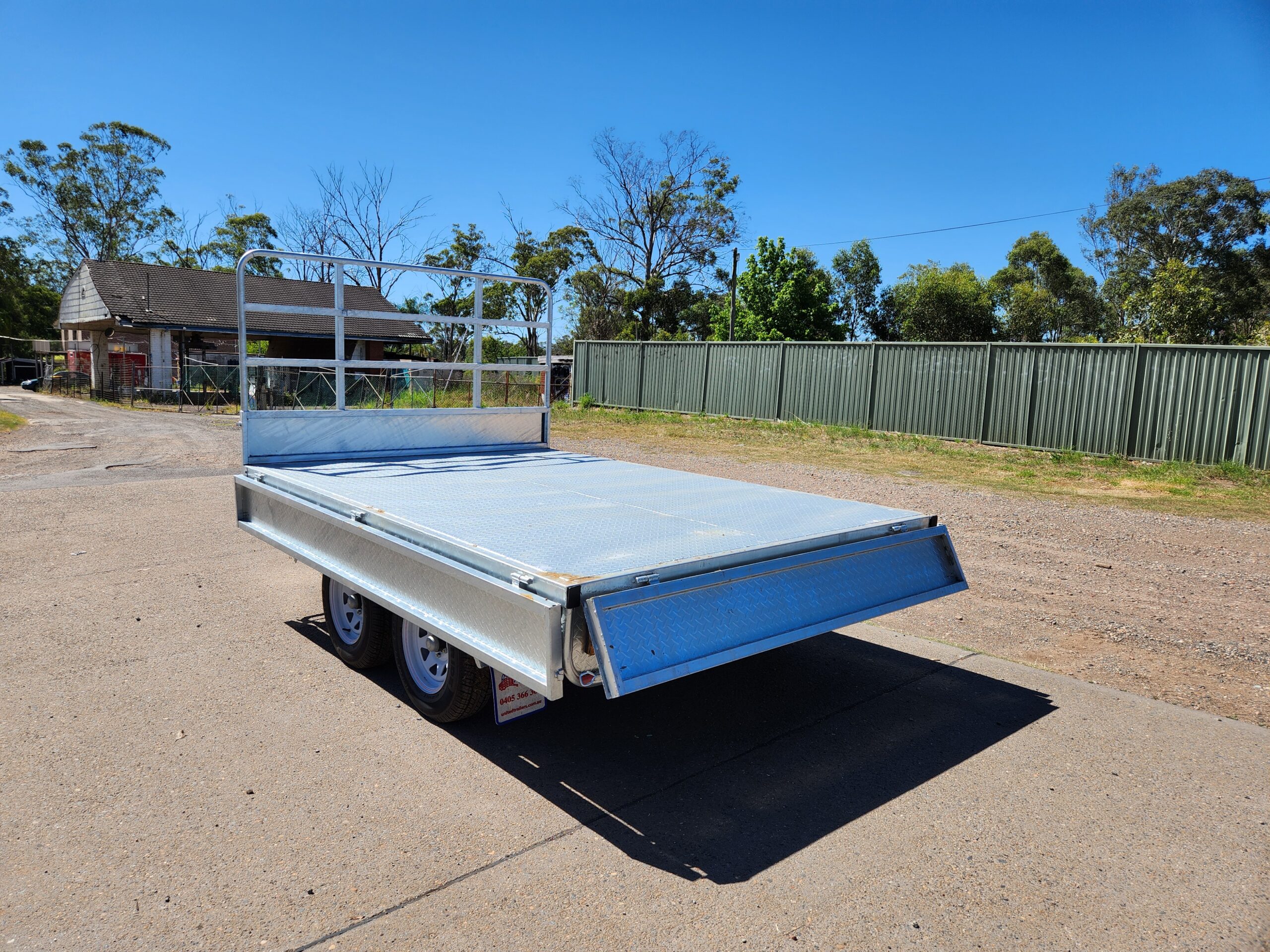

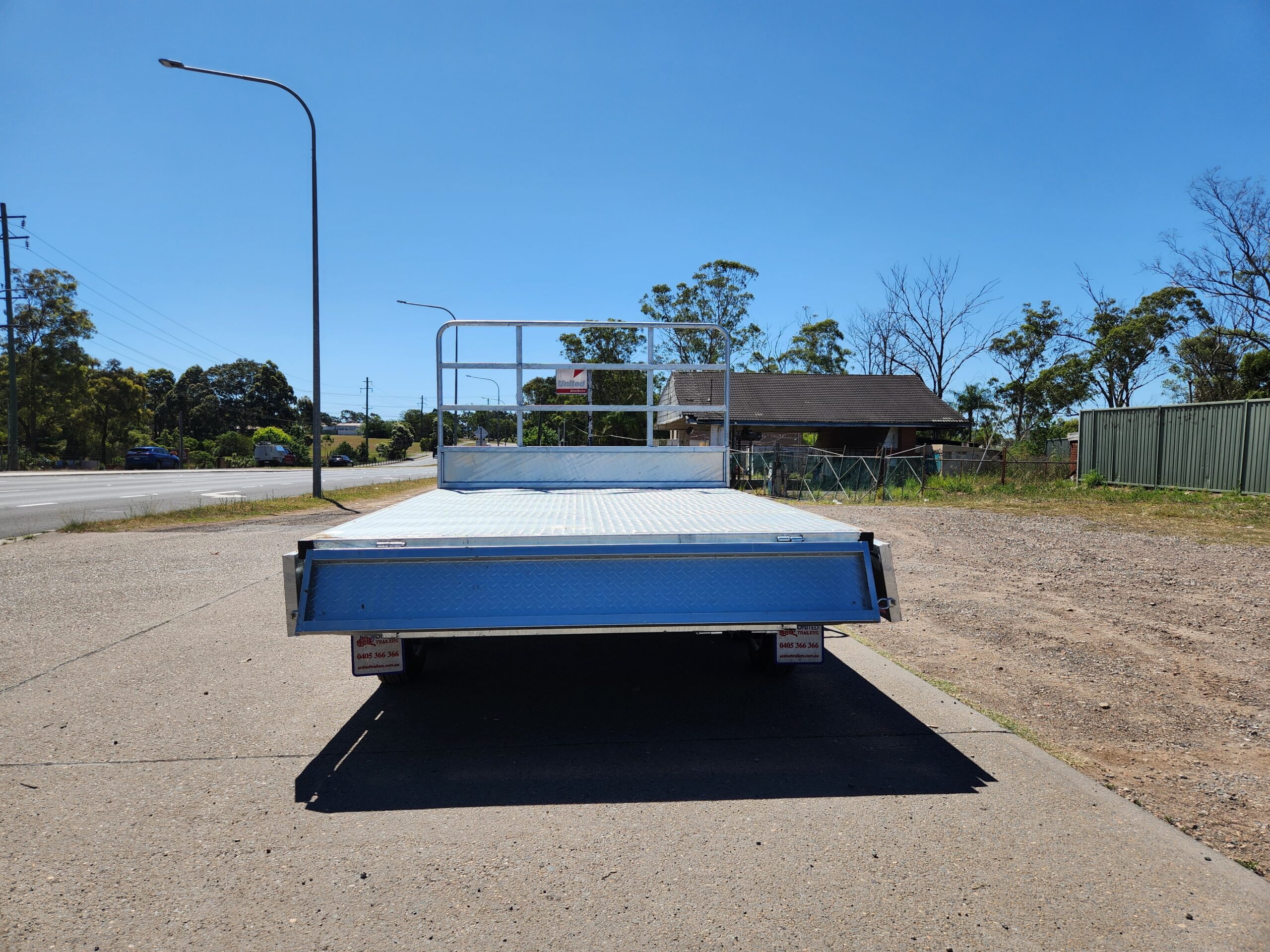

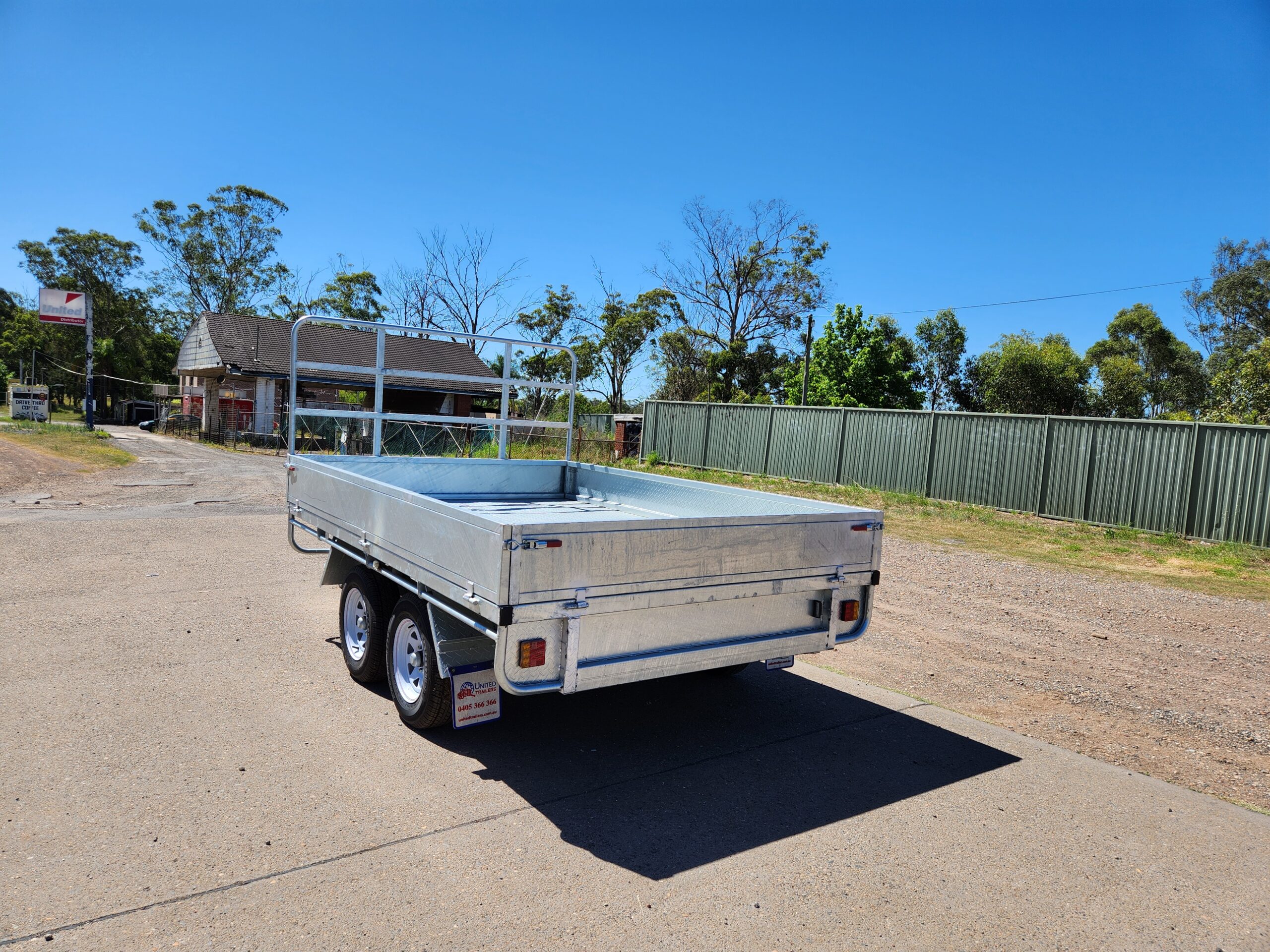

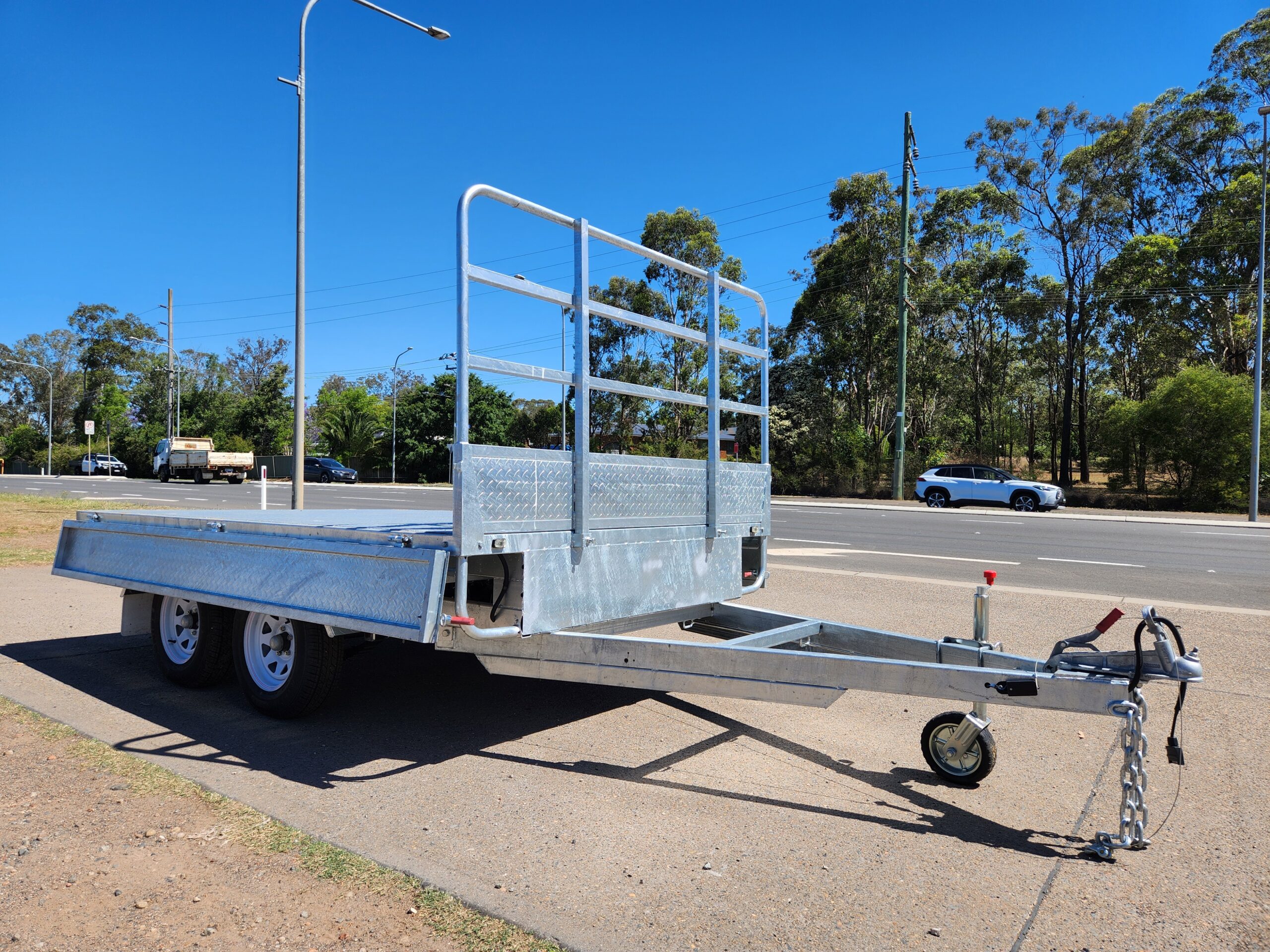

10 x 7 Flat top /Table Top Trailer 3200 KG ATM
We are one of the biggest trailer manufacturers in NSW, having successfully traded for 8 years to customers across Australia. With the Head Office situated in Vineyard (Sydney), United
Trailers services the Australian market through the Head Office, as well as our experienced and dedicated dealers.
- ATM: 3200KG
- TARE Weight: 800KG
- Construction: Hot Dipped Galvanised, Fully Welded Body & Chassis
- Overall Size: L 4000mm x W 2200mm
- Internal Size: L 2990mm x W 2040mm x (H 300mm When Side wall is up)
- Flooring: 2.5mm Checker Plate (2-piece, fully welded)
- Step-up: Front Step-Up on both sides
- Axle: Dual Axle, 50mm Round Solid Axle
- Jockey Wheel: Swing-Up
- Wheels: Brand New Sunraysia Rims with LT Tyres (185R/14C)
- Side Wall: Removable Front. Rear & Both sides Drop-Down & removable
- Drawbar: 2000mm Long, 100mm x 50mm RHS with 70mm x 50mm RHS Reinforcement
- Chassis: 50mm x 50mm SHS Reinforced (Front-to-Back & Side-to-Side)
- Tie Rail Bar: 32mm
- Suspension: 60mm, 9-Leaf, 7mm Rocker Roller
- Coupling: 50mm 3500kg Quick Release Over-Ride
- Safety Chains: 13mm ADR Compliant (x2)
- Locking Points: 2 on Drawbar
- Brakes: 12” Electric Drum Brakes on All Wheels
- Lights: LED Combination (12V–24V)
- Plug: 7-Pin Flat
- Other Inclusions: Compliance Plate, Mudflaps, 1-Year Limited Warranty
Optional Extras:
- Spare Wheel: $155
- Spare Wheel Bracket: $55

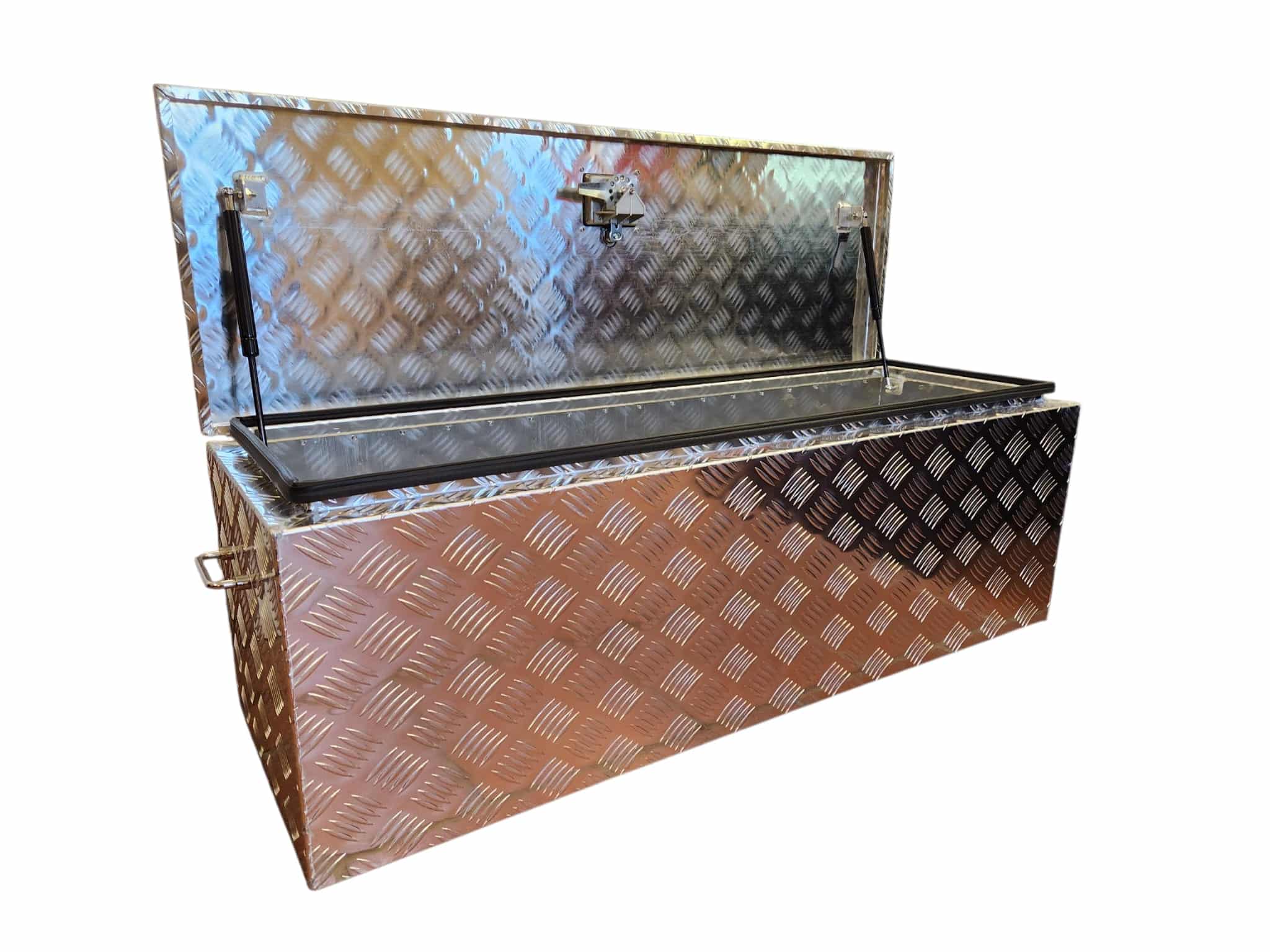

- Tool Box Aluminium (L1200mm x W 400mm x H 400mm ): $399.00
- Registration: Available On-Site
Payment Options:
- Accepted: Bank Transfer, Cash, EFTPOS, MasterCard, VISA, American Express
(1.5% surcharge for EFTPOS/MasterCard/VISA, 3% for AMEX) - ✅ Finance Available via Trailer Pay
- 👉 Take It Home with Just a $200 Deposit!
Contact Us:
📞 Phone: 0405 366 366
📧 Email: info@unitedtrailers.com.au
📍 Address: 405 Windsor Road, Vineyard, NSW 2765
🌐 Website: www.unitedtrailers.com.au
✅ Australian Owned & Operated
✅ Licensed Dealer – MD072058
We welcome you to visit our factory in Vineyard to explore all available options.
10 x 7 Flat top /Table Top Trailer 3200 KG ATM
Finance Options Available
PLEASE CALL 0405 366 366 to reserve your trailer.
We only use the best quality materials and parts to manufacture our trailers.
All our prices are GST exclusive.
Disclaimer: The product images shown are for illustration purposes only and may not be an exact representation of the product. United Trailers reserves the right to change product specifications at any time without prior notice. Options may show in some of the pictures.
